skip to CISA 06302 Roller Shutter Kit

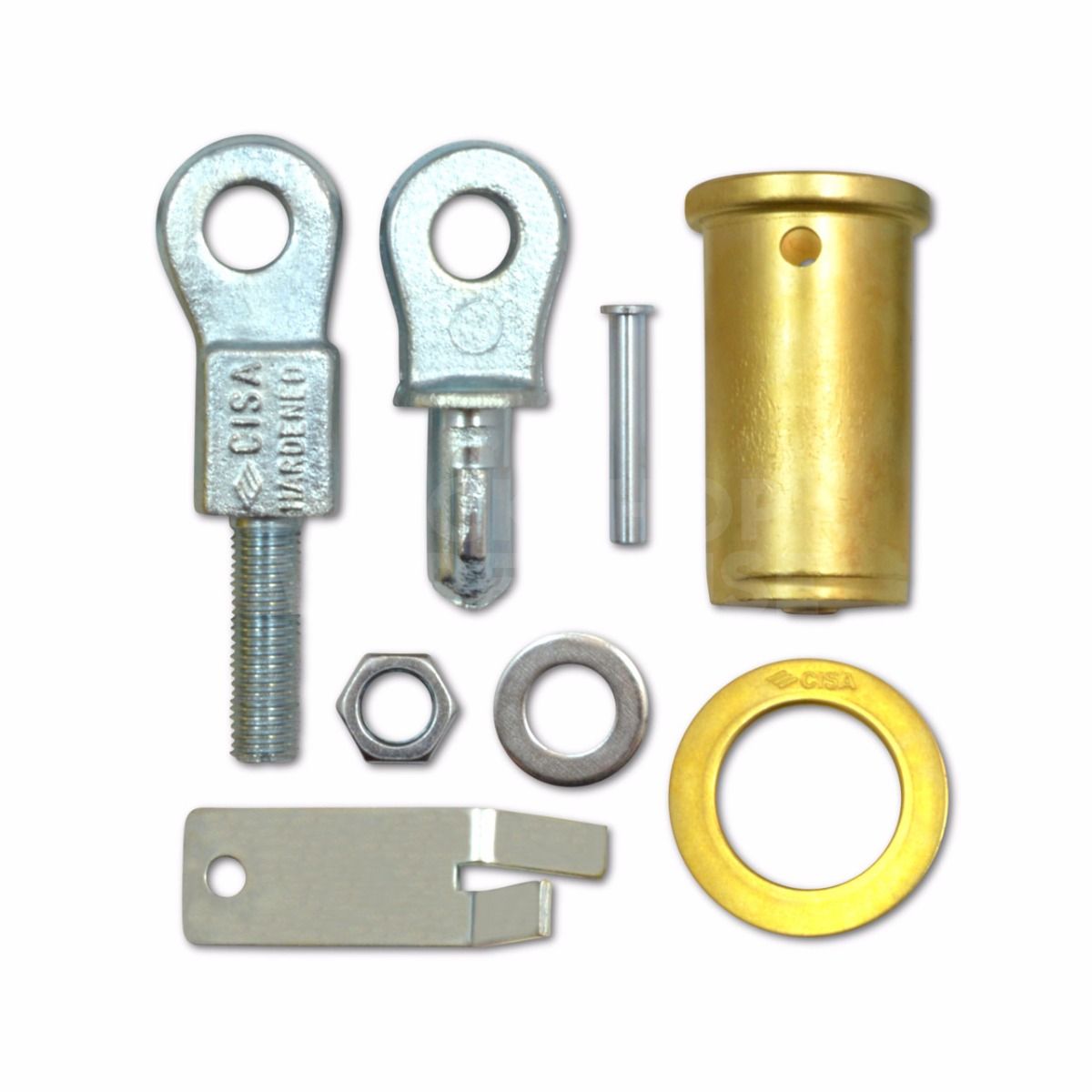

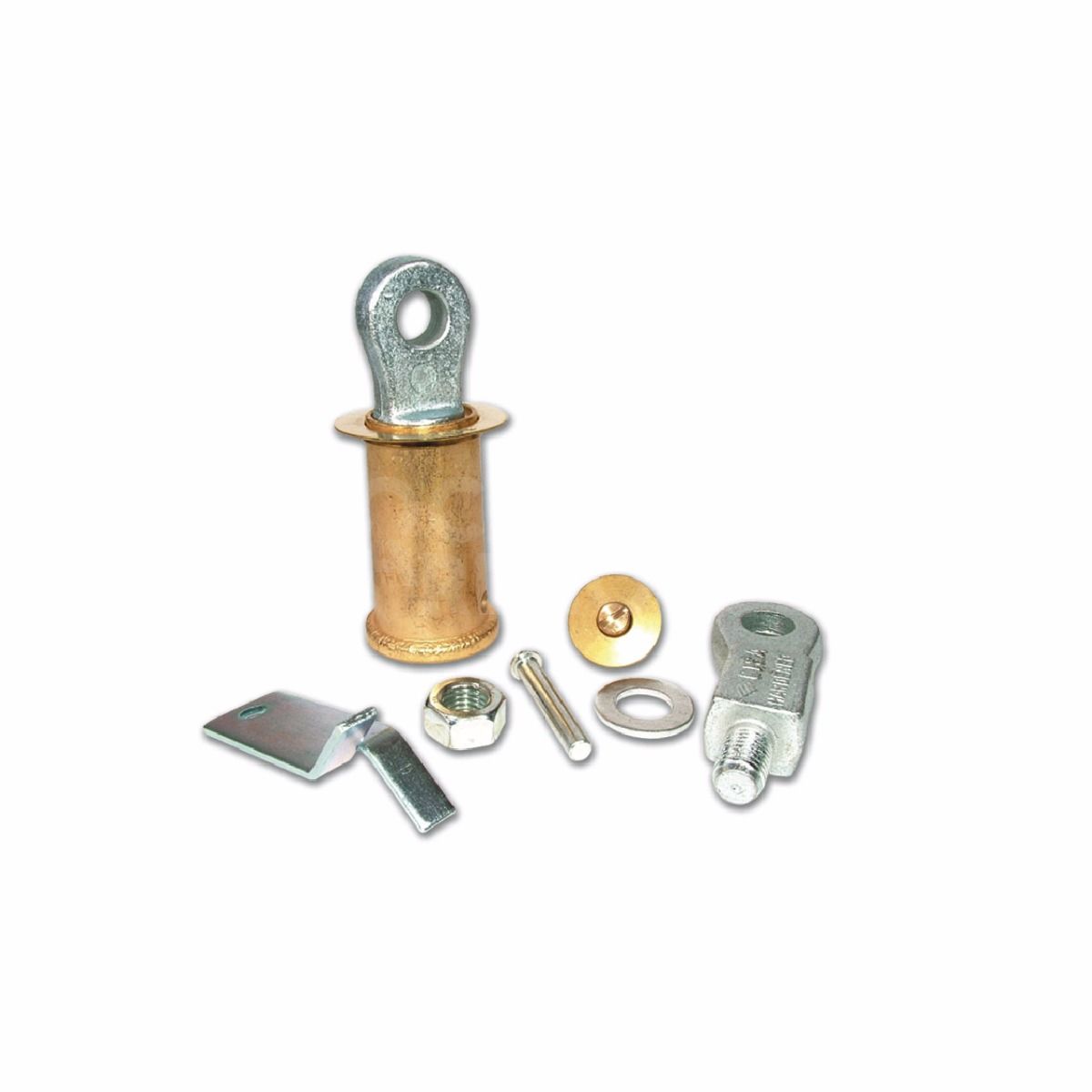

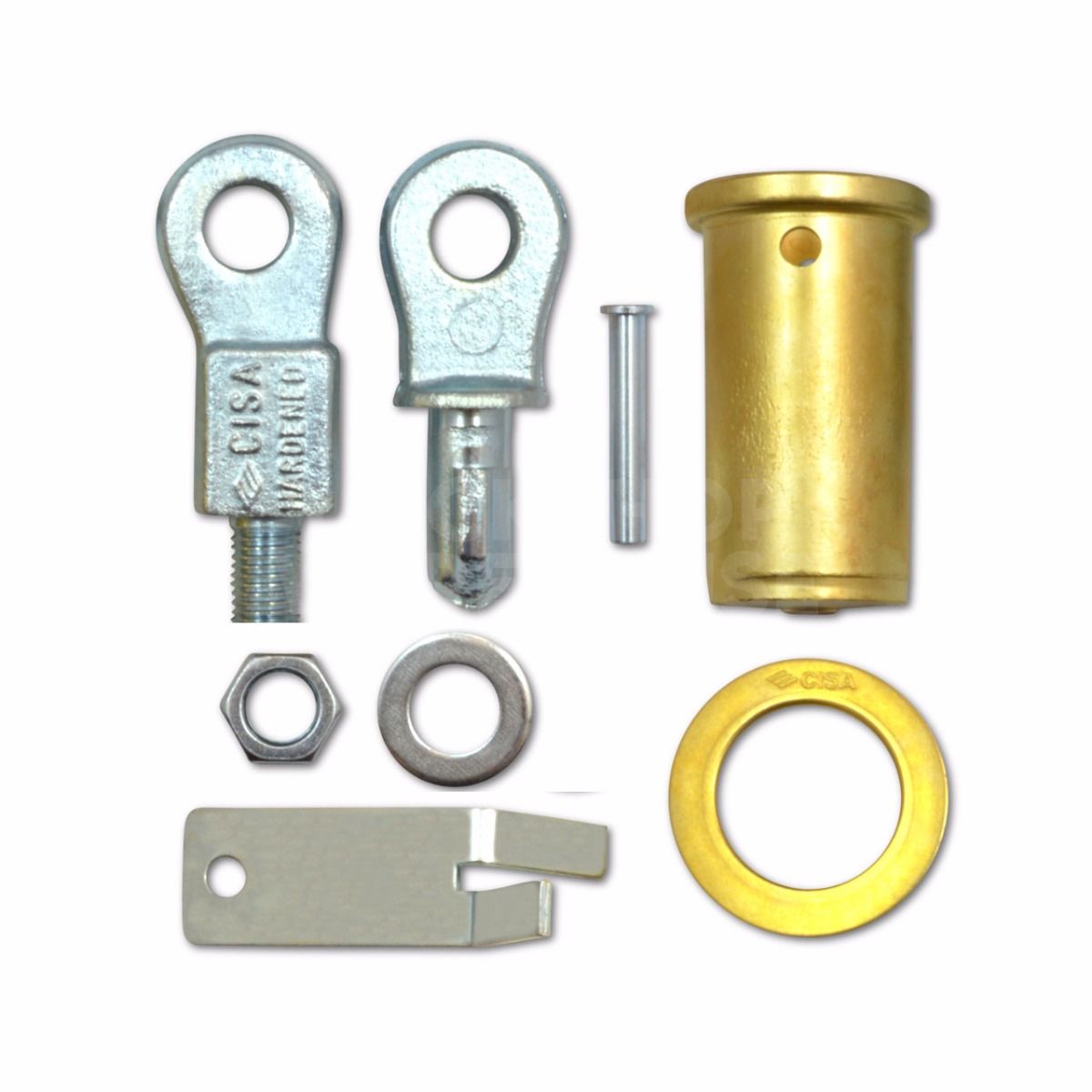

CISA 06302 Roller Shutter Kit

£116.39

(£96.99 ex VAT)

sku: 552
  • Ground-anchored security system for roller shutters
  • Permanent brass retainer installs flush with the floor surface
  • Includes a removable arrowhead ground bolt for clear access when open
  • Hardened steel eyebolts provide high-resistance locking points
  • Secures shutter rail directly to the floor using a padlock
  • Supplied with a lockable dust cap to prevent debris ingress
  • Mechanical 90-degree turn locking mechanism for the ground bolt

Bolt Length

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

9/10 Security Rating

The CISA 06302 Roller Shutter Kit is a heavy-duty security solution designed to anchor roller shutters directly to the ground. This system provides a robust physical barrier against lifting or forced entry by creating a secure connection point between the shutter curtain and the floor surface.

The kit functions via a brass retainer that is permanently installed into the ground, sitting flush with the surface to prevent trip hazards. A threaded eyebolt is fixed to the shutter rail, while a removable "arrowhead" eyebolt is inserted into the floor retainer and secured with a 90-degree turn. When the shutter is lowered, the two eyes align, allowing them to be locked together with a high-security shutter padlock.

This kit is ideal for commercial and industrial applications where additional perimeter security is required for storefronts or warehouse entrances. It is suitable for both new installations and retrospective security upgrades. The inclusion of a lockable dust cap ensures the internal mechanism remains free from debris and grit when the ground bolt is removed during business hours.

Brand

SKU

552

Box Contents

Fixing Kit

Dust Cap

Roller Shutter

FAQs

The kit uses a dual-eyebolt system for high security. One threaded eyebolt is permanently attached to the roller shutter, while an 'arrowhead' bolt is inserted into the brass ground retainer and rotated 90° to lock it in place. Once the shutter is closed, both eyebolts align, allowing you to secure them together with a heavy-duty shutter padlock.

The kit is built for durability and weather resistance featuring:

  • Hardened steel eyebolts with a galvanised finish.
  • A brass ground retainer measuring 88mm in length with a 43mm diameter.
  • A lockable brass dust cap to protect the ground anchor from debris.

No, the system is designed to be safe for foot traffic. When the shutter is open, the 'arrowhead' bolt is removed, leaving the retainer flush with the ground surface. The included brass dust cap fits securely over the opening to maintain a smooth, trip-free walkway.

To fully secure the two hardened steel eyebolts together, you should use a dedicated shutter lock. A high-quality option like the ABUS 82/90 Shutter Lock is specifically recommended to work with this kit's configuration.
