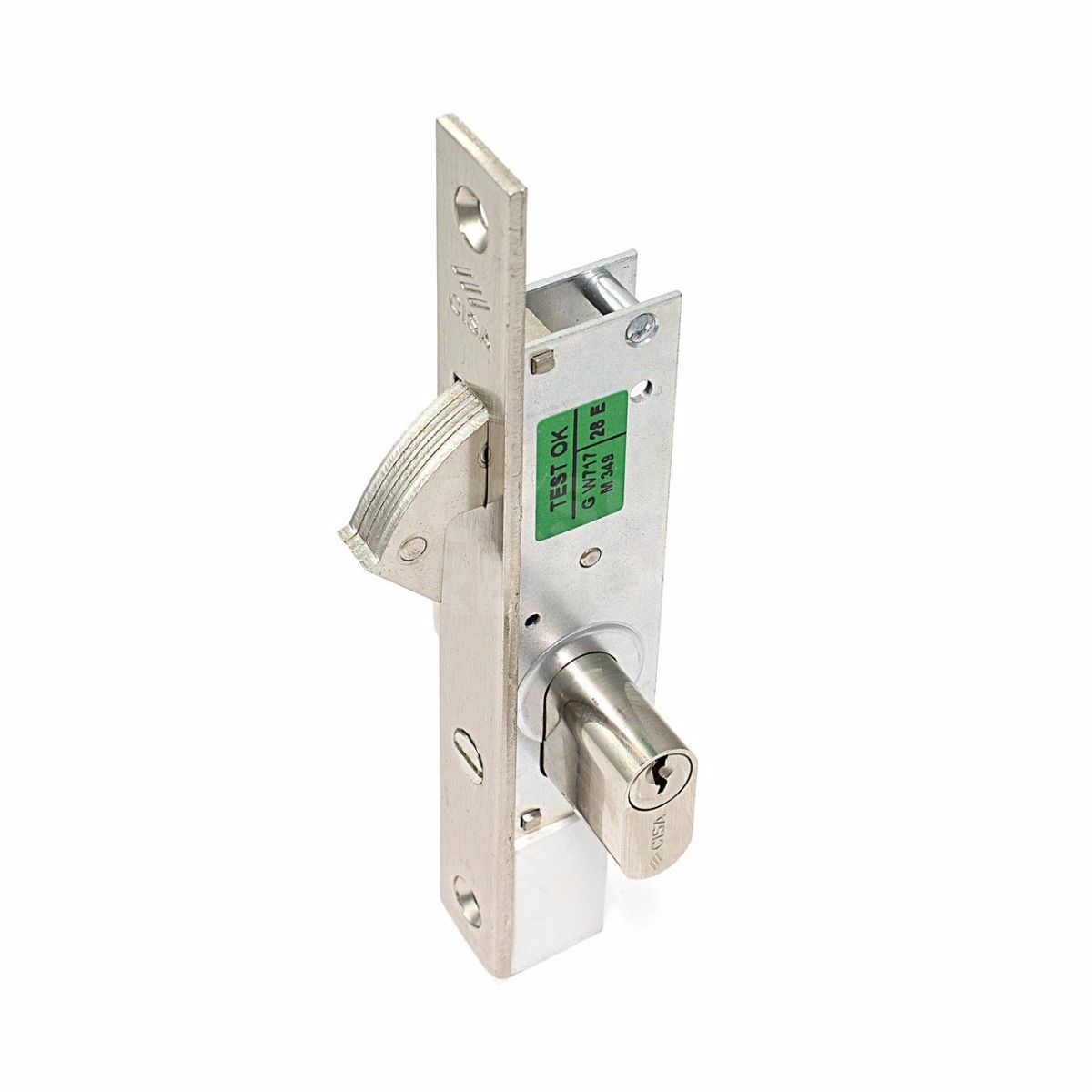

Cisa 45010-16 Oval Sliding Door Lock

£101.94

(£84.95 ex VAT)

sku: CI-45010
  • Pivoting hookbolt provides secure locking for sliding doors
  • Slimline design suitable for narrow stile metal door profiles
  • Double cylinder operation allows keyed access from both sides
  • Supplied as a complete set including a compatible lock cylinder
  • Specifically engineered for use with small oval profile cylinders
  • Ideal for commercial and industrial sliding door applications
Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

5/10 Security Rating
tick Key Profile: Standard

The Cisa 45010-16 is a mechanical hookbolt lock specifically designed for metal sliding doors. Its compact housing makes it particularly suitable for narrow stile profiles where a standard mortice lock would be too deep. The pivoting hookbolt engages with the strike plate to prevent the door from being lifted or pulled away from the frame once engaged.

This assembly comes with a dedicated small oval profile double cylinder, which is the only type compatible with this specific lock case. This configuration ensures that the door can be locked and unlocked from both the interior and exterior. It is commonly used as a direct replacement part or for new installations in aluminium and steel door systems.

Compatibility and Application
  • Suitable for narrow stile aluminium and steel sliding doors
  • Designed for use with the included small oval profile double cylinder
  • Operates via a keyed cylinder from both sides

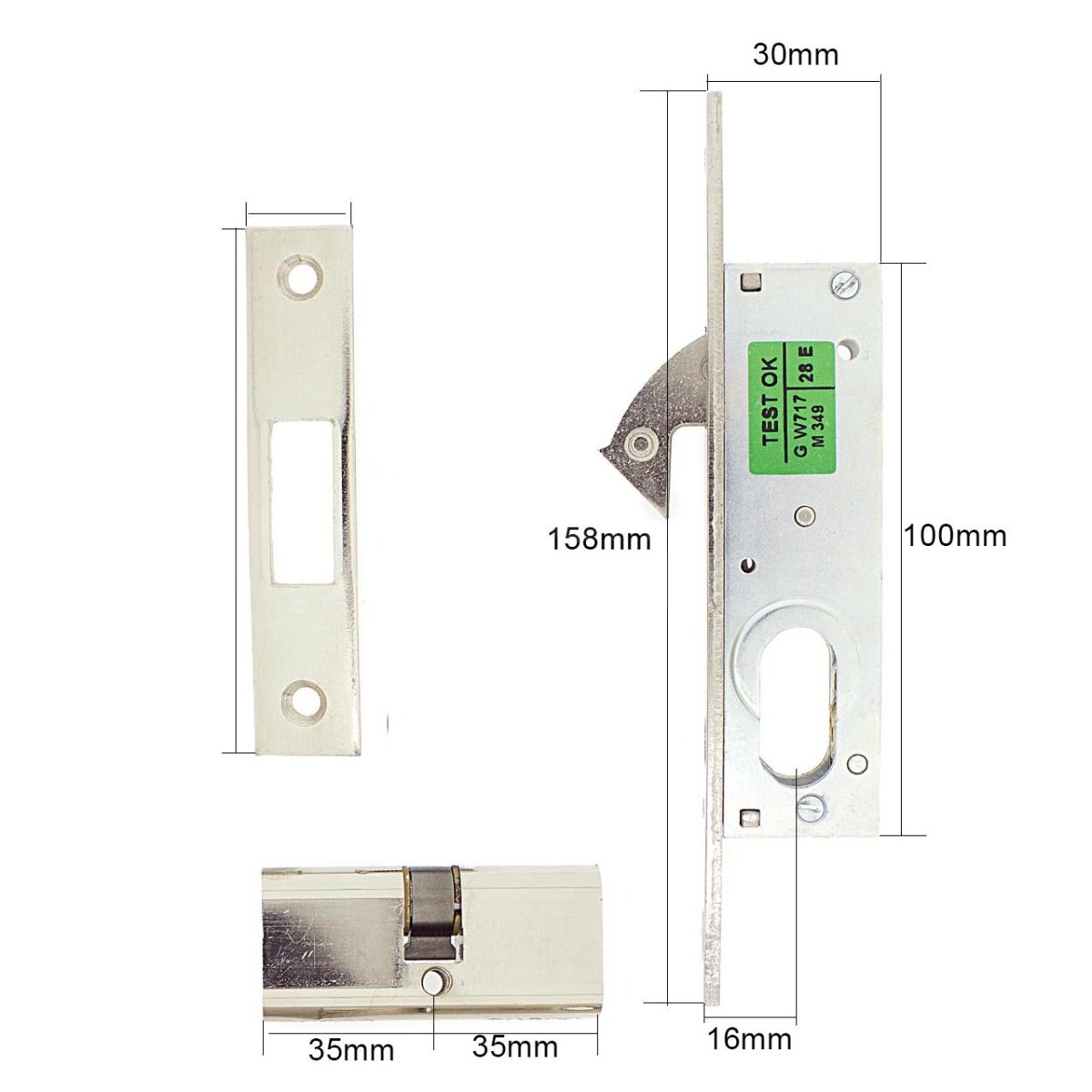

Dimensions Image: Cisa 45010-16 Oval Sliding Door Lock
Part Size (mm)
Backset 16
Case Width 30
Case Height 100
Forend Width 20
Forend Length 158
Dimensions Image: Cisa 45010-16 Oval Sliding Door Lock

Brand

SKU

CI-45010

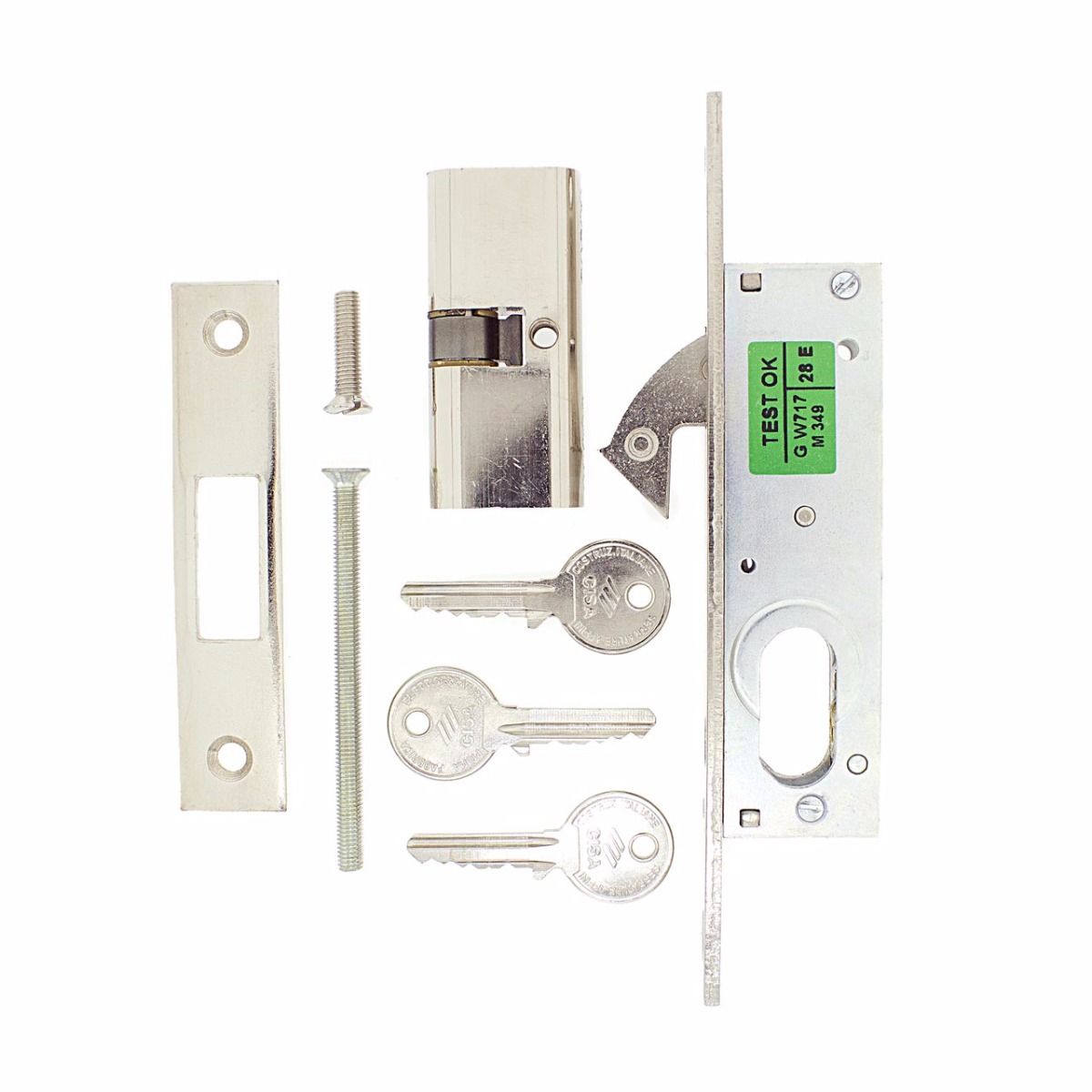

Box Contents

3 keys

strike plate

mortice lock

cylinder screw

oval cylinder

Key Profile

Key Profile: Standard

FAQs

This lock is specifically designed for metal sliding doors. Its compact 30mm case size makes it ideal for doors with very narrow stiles where standard-sized lock cases may not fit.

No, this lock uses a specialized mechanism. It is supplied with a 55mm small oval double cylinder, which is the only cylinder type compatible with this specific lock case.

Yes, because it is supplied with a small oval double cylinder, the hookbolt can be conveniently locked or unlocked from either side of the door using a key.

The Cisa 45010-16 is supplied with 3 keys as standard, providing enough for primary users and a spare without the immediate need for cutting duplicates.
