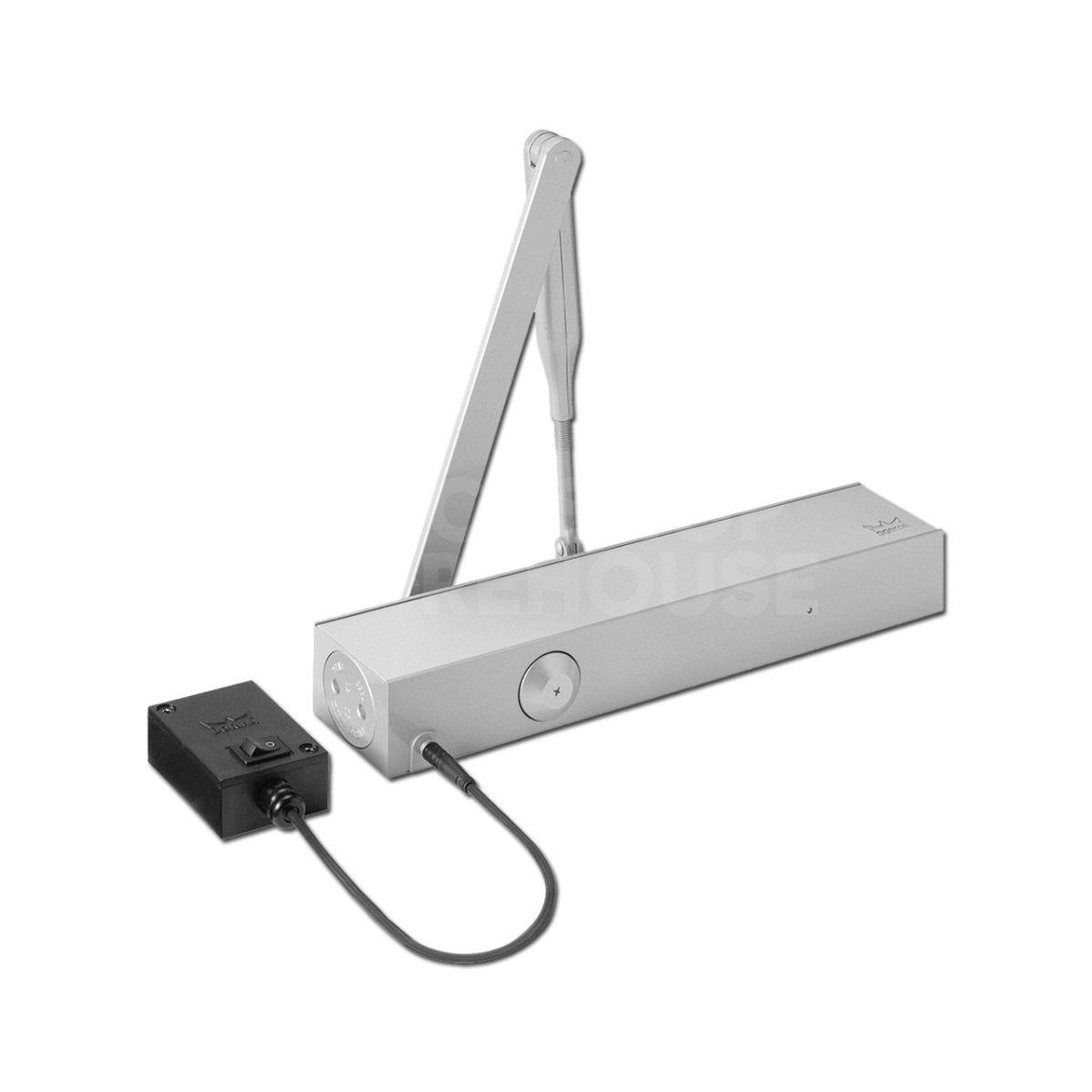

Dorma TS73EMF Hold-Open Device (Door Fixing)

£256.32

(£213.60 ex VAT)

sku: 549
  • Combines a hydraulic door closer with an electromagnetic hold-open unit
  • Designed specifically for fire and smoke check door applications
  • Integrates with smoke detection systems for automatic release during alarms
  • Provides a stable and reliable hold-open point for high-traffic areas
  • Improves accessibility by holding doors open during normal operation
  • Door-fixed configuration for standard leaf mounting
  • Ensures controlled closing to maintain fire compartmentation
Document Icon product info Document Icon product info
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Dorma TS73EMF is a specialised door control solution that combines a standard hydraulic door closer with an integrated electromagnetic hold-open device. This system is engineered primarily for use on fire and smoke check doors where it is necessary to hold the door open during normal operation while ensuring it closes automatically in the event of a fire.

Functionally, the unit allows the door to be held at a fixed point, improving pedestrian flow and accessibility in high-traffic commercial or public buildings. When connected to an external smoke detection system or fire alarm, the electromagnet releases upon signal interruption, allowing the hydraulic closer to shut the door securely. This makes it an essential component for fire safety compliance in corridors and escape routes.

Typical applications include hospitals, schools, and offices where barrier-free access is required without compromising fire safety protocols. The TS73EMF is designed for door fixing and is compatible with various single-leaf door configurations. It is suitable for both new installations and as a replacement unit for existing fire door hardware systems.

FAQs

The TS 73 EMF combines a hydraulic door closer with an electromagnetic unit. It allows the door to be held open at a specific point for convenience but will automatically release and close the door if the power is cut or a fire alarm is triggered, ensuring safety.

Yes, it is specifically designed for use on fire and smoke check doors. When linked to a smoke detection system, it provides a reliable method for controlled hold-open while ensuring the door closes securely in an emergency.

To operate as a certified hold-open system for fire protection, this device must be used in conjunction with an external smoke detection system, such as the DORMA RMZ-K/S, which monitors the area and controls the power to the unit.

This product is supplied as standard in a Silver Enamel finish. If your project requires a different aesthetic, alternative finishes may be available upon request through our support team.
