Match the lockout to the electrical equipment.
Start with the exact equipment type. A circuit-breaker clamp, a bottle-fuse lockout and a plug enclosure perform different jobs and are not interchangeable.
Check the manufacturer's fitting instructions and the site's isolation requirements before ordering. These products are not equipment for live working.
E201 and E203 are different circuit-breaker fitting arrangements. E218 is for compatible D01/D02 bottle-fuse bases, while E245 addresses the specified motor-protection-switch format. P110/P550 enclose a disconnected plug; P600 fits compatible CEE plugs.
Check the padlock opening as well as the electrical equipment. E218 and E245 have a listed 6.5 mm shackle limit, so a coated 7 mm shackle should not be recommended as a direct fit. A smaller shackle still needs adequate clearance and suitable body geometry.
Plan the rest of the equipment.
No matching products found, try adjusting your filters

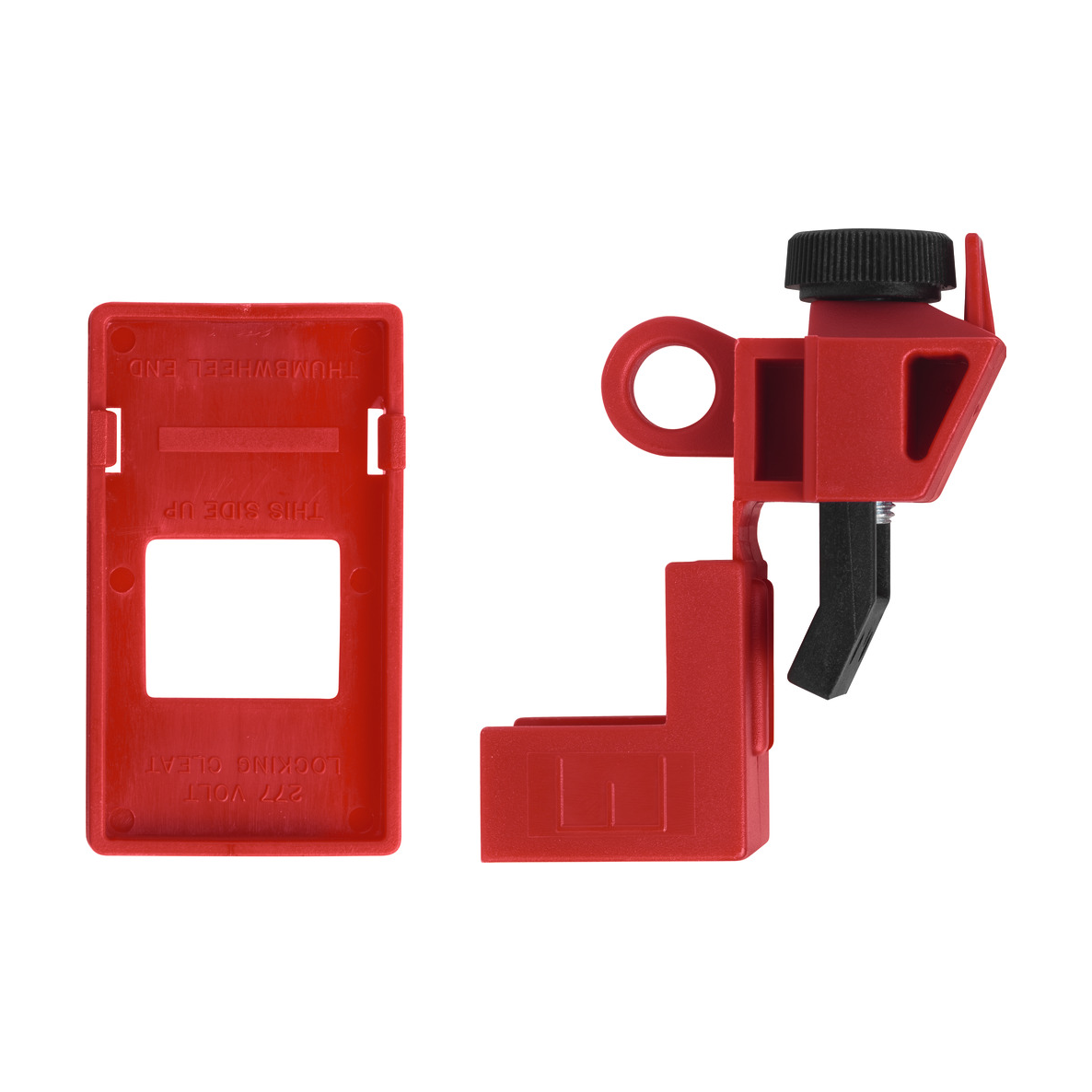

ABUS E201 Circuit Breaker Lockout
A screw-fixing lockout for compatible single-pole circuit breakers, with a blade-fuse adapter.
£11.95 (£9.96 ex VAT)

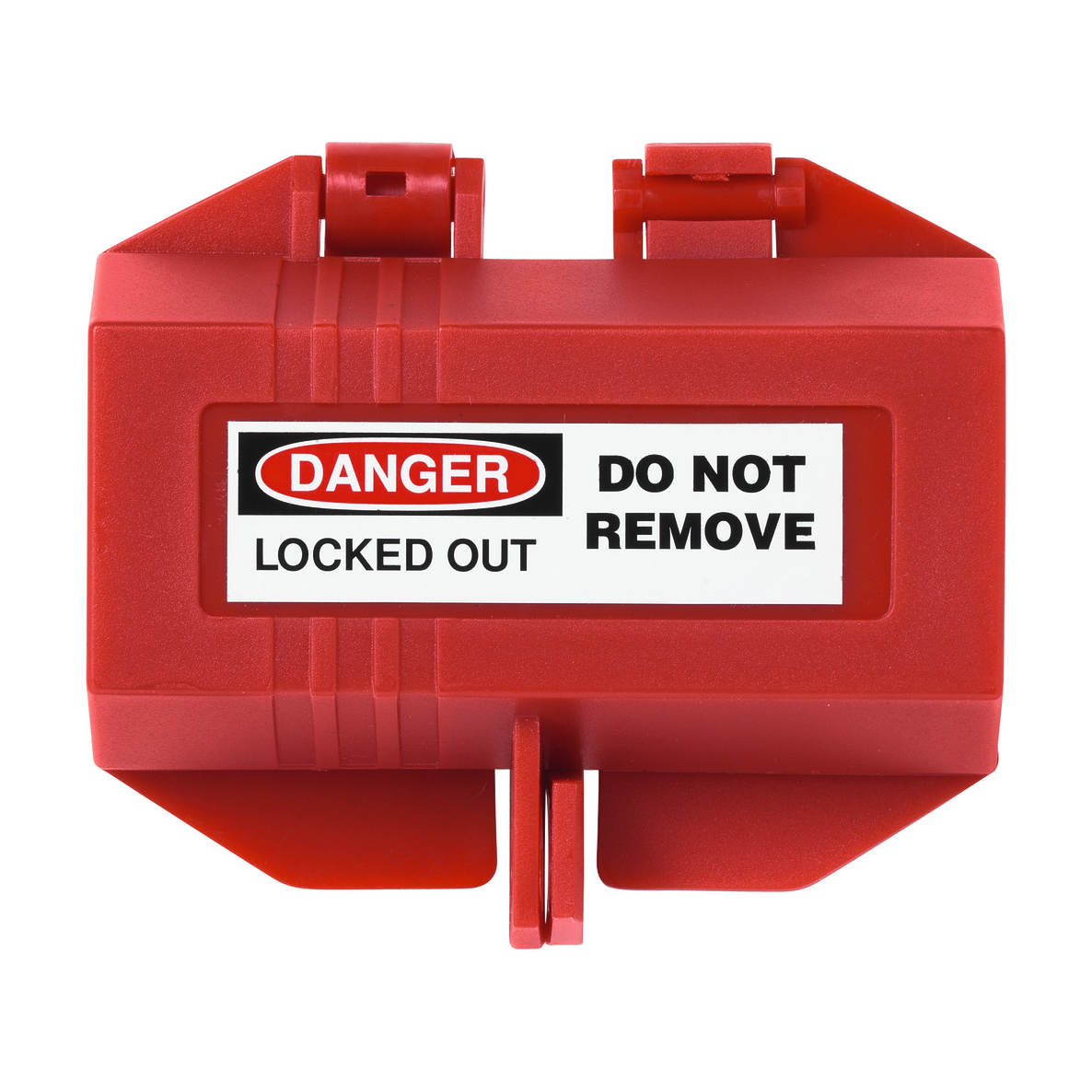

ABUS P110 / P550 Plug Lockout Boxes
Enclosing plug lockout boxes in two sizes for compatible plugs and cable diameters.
£11.95 (£9.96 ex VAT)

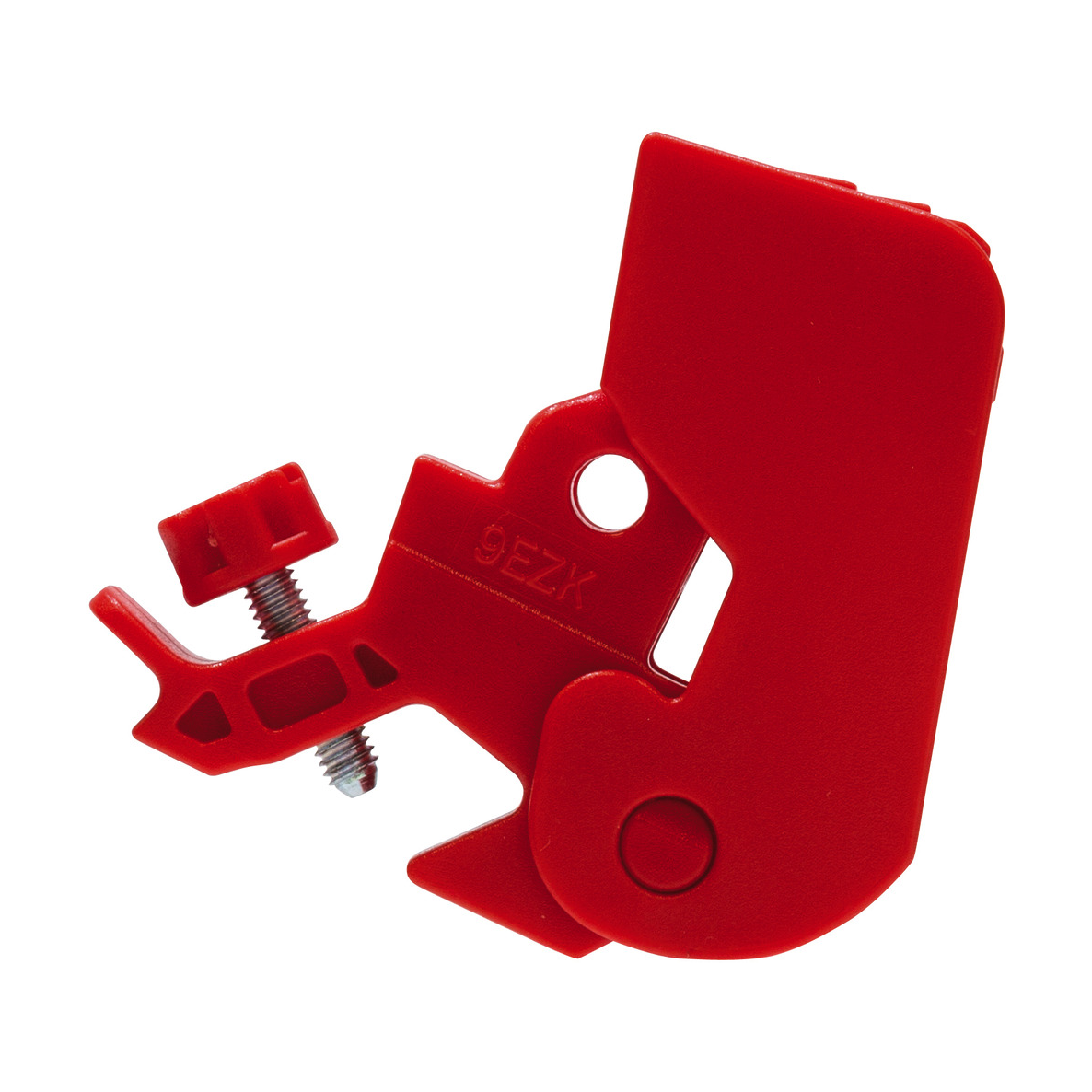

ABUS E203 Circuit Breaker Lockout
A handwheel-operated lockout for compatible single- and multi-pole circuit breakers.
£14.95 (£12.46 ex VAT)

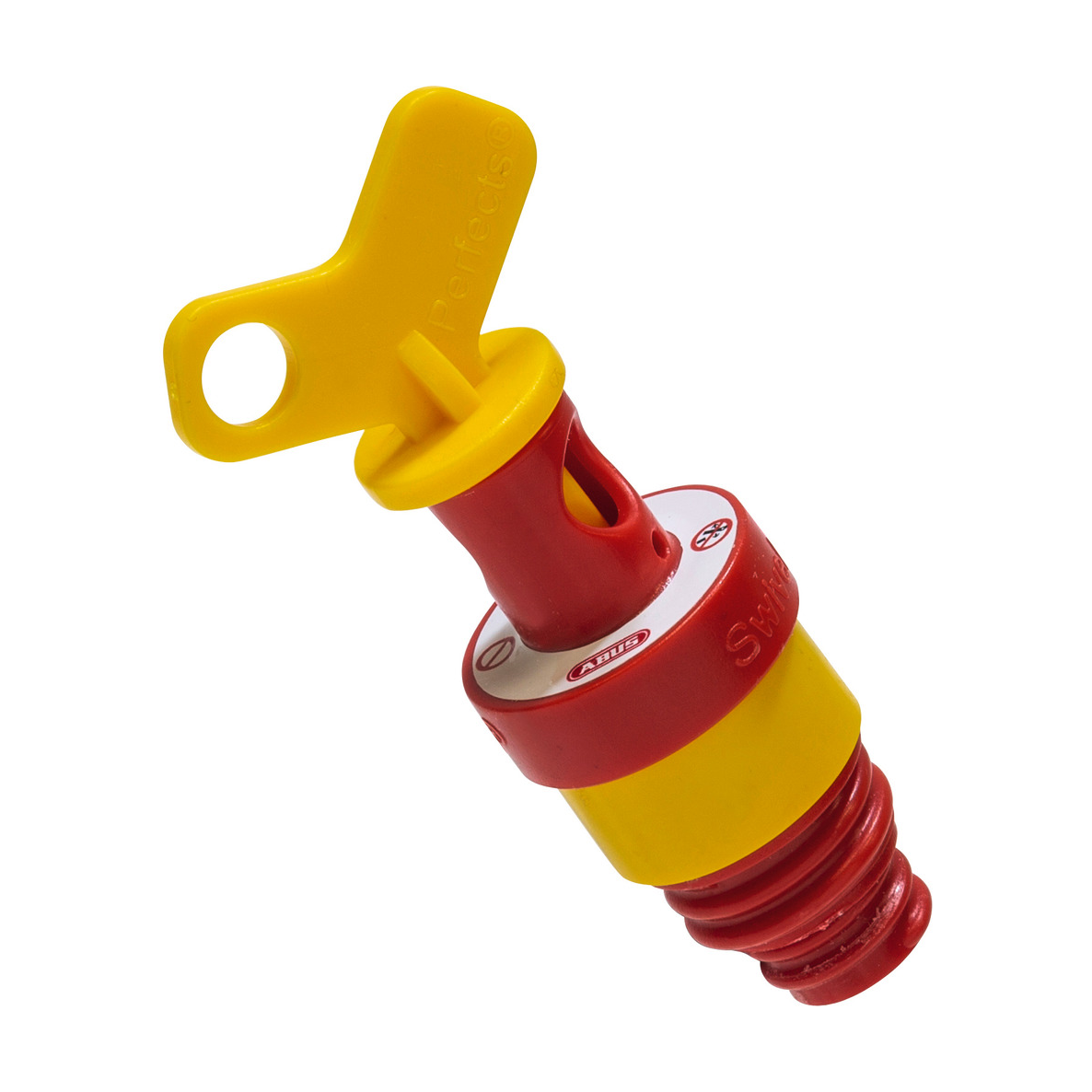

ABUS E218 Bottle Fuse Lockout
A stepped-thread lockout for D01 and D02 bottle-fuse bases.
£39.25 (£32.71 ex VAT)

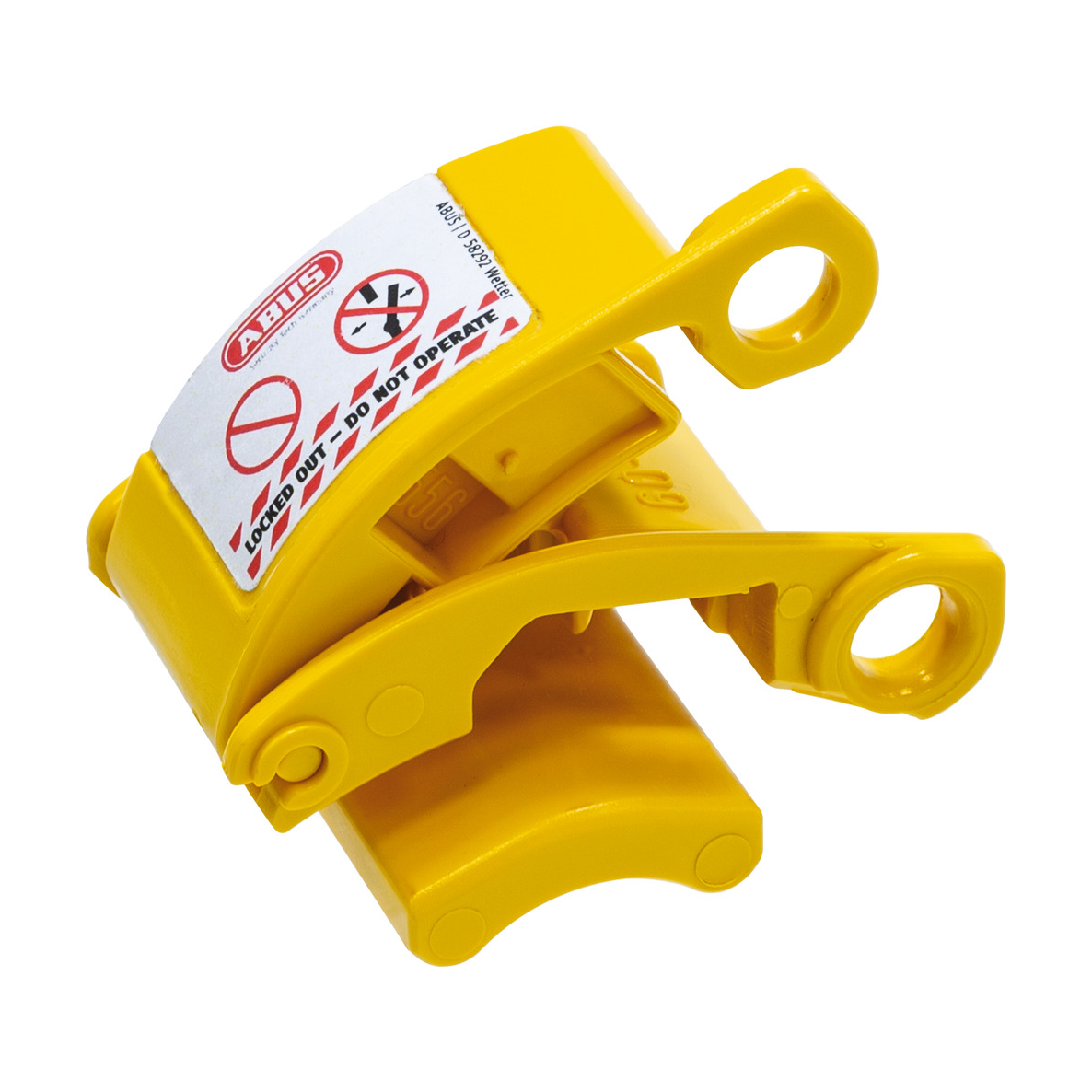

ABUS P600 CEE Plug Lockout
A compact lockout device for compatible CEE power plugs.
£21.95 (£18.29 ex VAT)

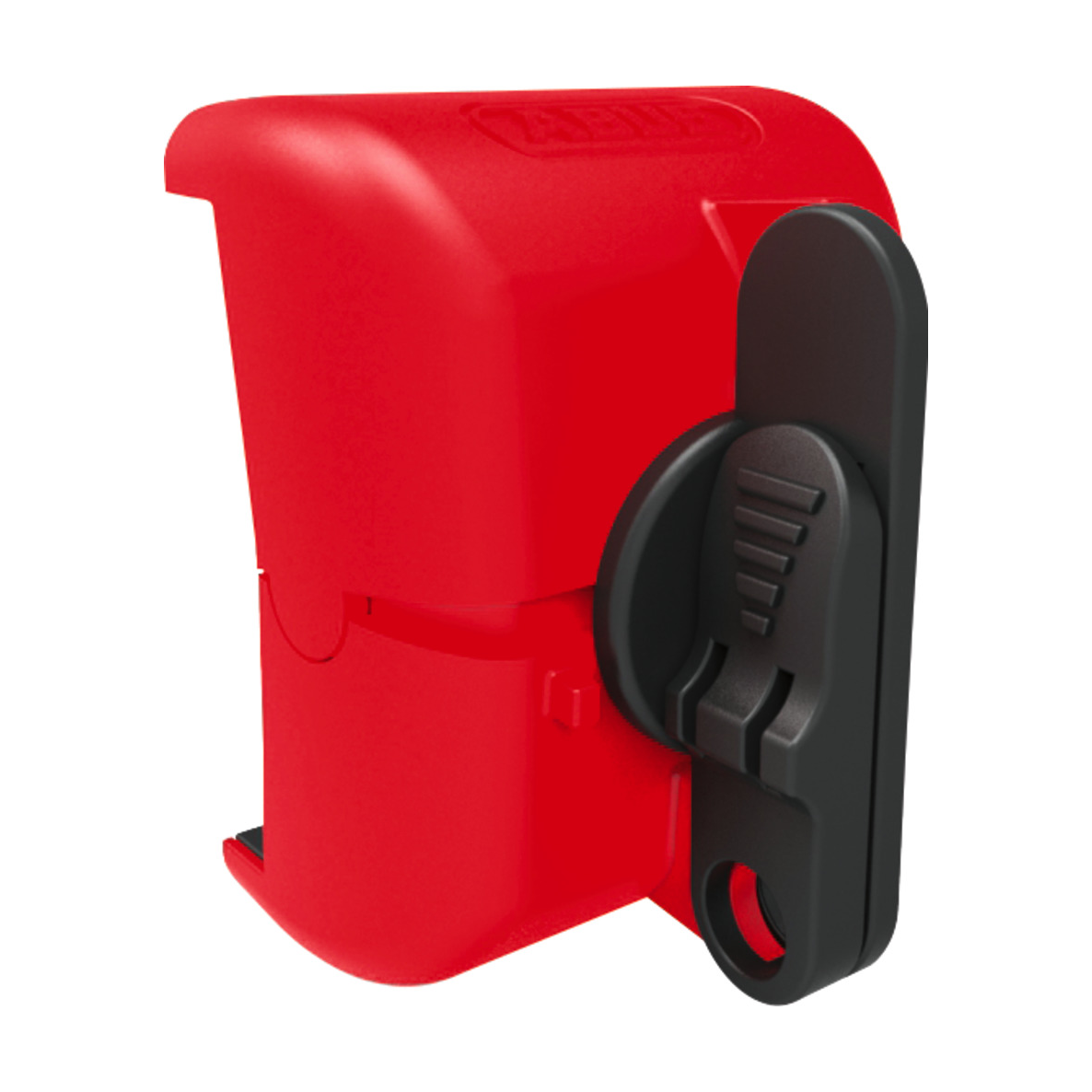

ABUS E245 Motor Protection Switch Lockout
A lockout device for compatible motor-protection switches with a 45 mm switch-panel height.
£54.50 (£45.42 ex VAT)
