Elite Automatic Slam-Shut Latch and Deadbolt Multipoint Lock

£89.71

(£74.76 ex VAT)

sku: ELITE-0013
  • Standard automatic locking layout
  • 45 mm straight and radius-ended versions have manufacturer-listed trigger engagement on closure
  • 20 mm faceplate on the documented 45 mm versions
  • The retained 35 mm radius option requires exact-model verification
  • Furniture and release function must match the complete door assembly

size

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The documented 45 mm Elite Standard Automatic versions engage their auxiliary latchbolts when the door closes, without lever lifting for that engagement.

This does not prove a fully keyless entry or release arrangement, automatic central-deadbolt operation or prevention of door bowing. The retained 35 mm radius option needs its own original specification. Straight and radius-ended layouts are not universally interchangeable.

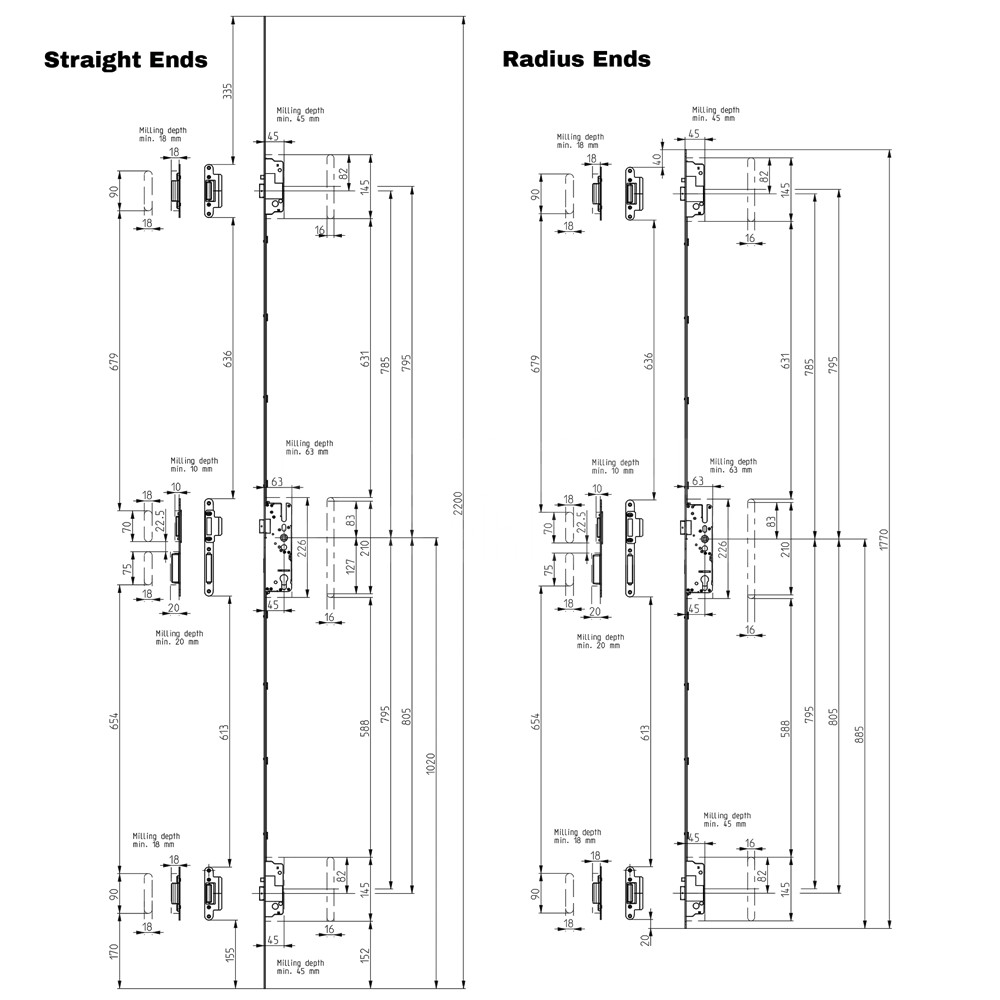

Dimensions Image: Elite Automatic Slam-Shut Latch and Deadbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1770 2200
Case Width 54 -
Case Height 200 -
Locking Point Dead Bolt 2 -
Faceplate Width 20 -

FAQs

The documented 45 mm versions use closure triggers to engage their auxiliary latchbolts. Confirm the central deadbolt and release functions separately; the 35 mm version needs its own original instruction.

The manufacturer describes the documented versions for composite and timber doors. Exact routing, keeps and furniture must match the selected version and door profile.

The documented versions are manufacturer-listed for pull-handle applications. Automatic engagement does not establish the required cylinder or internal release arrangement.

No blanket exposed-site or coastal guarantee is established. Suitability depends on the complete installation, environment and maintenance specification.
