skip to Elite Compact 2 Hook 2 Roller Multipoint Door Lock Twin Spindle

Elite Compact 2 Hook 2 Roller Multipoint Door Lock Twin Spindle

£52.56

(£43.80 ex VAT)

sku: EDLSC-2R2H
  • Two-hook, two-roller compact layout
  • Dual-follower centre case
  • 35 mm backset and 16 mm faceplate
  • Extendable system with optional shootbolt arrangements
  • Shorter-rebate and French-door applications require the matching assembly
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

The Elite EDLSC/2R2H is the manufacturer's dual-follower compact model for shorter rebates.

Compact describes the locking layout and application, not proof of a smaller gearbox. The specified rebate-height limits depend on the shootbolt arrangement; they are not strip-length measurements or unrestricted cropping permission. Furniture, extensions and profile keeps must match the original assembly.

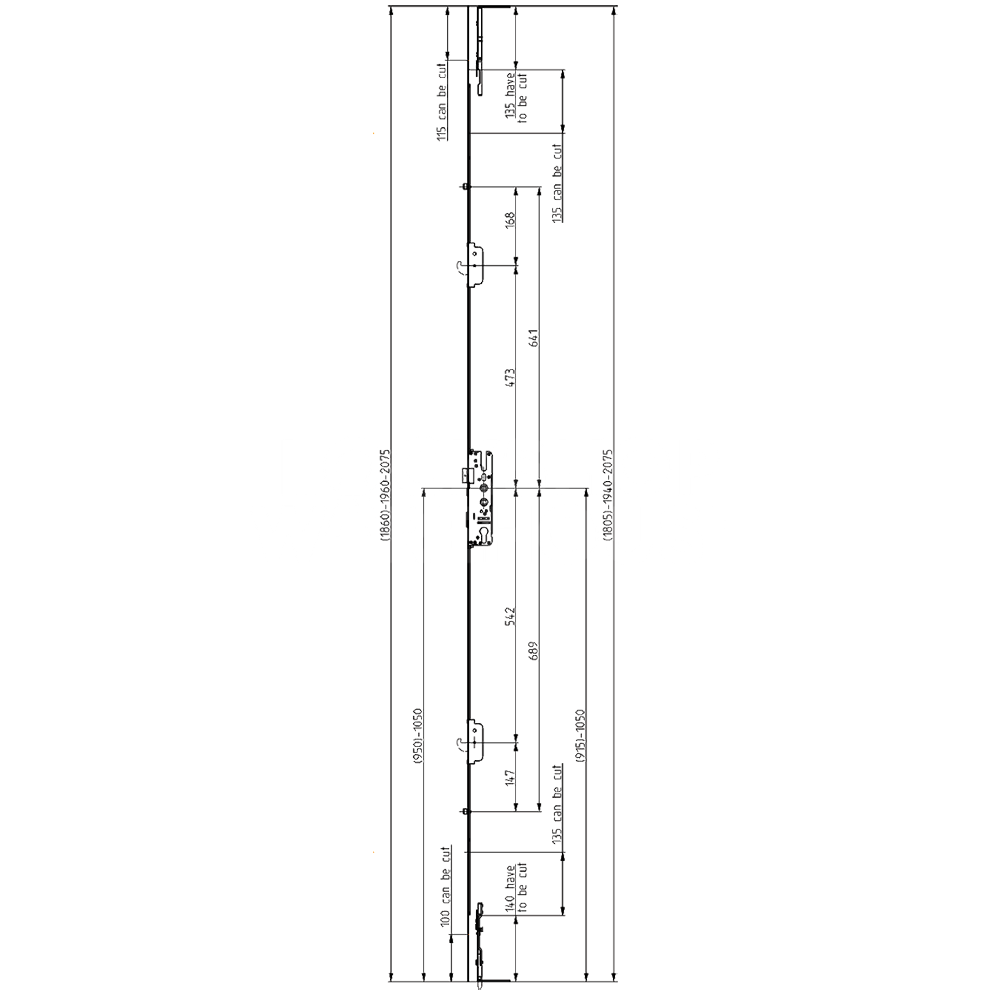

Dimensions Image: Elite Compact 2 Hook 2 Roller Multipoint Door Lock Twin Spindle
Part Size (mm)
Backset 35
Body Length 2075
Case Width 53
Case Height 200
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The manufacturer identifies shorter-rebate applications. This does not establish a smaller gearbox or fit to every smaller door; use the exact layout and shootbolt configuration.

The documented dual-follower night-latch arrangement requires appropriate furniture. Exterior release behaviour is not established by the follower count alone.

No guaranteed coastal service life is established. Exposure, installation and maintenance must be assessed separately from the finish description.

The manufacturer describes an extendable system with optional shootbolts. Correct connections, action, keeps and profile must be matched; this is not permission to add arbitrary parts.
