skip to Elite Compact 2 Hook 4 Roller Twin Spindle Multipoint Lock

Elite Compact 2 Hook 4 Roller Twin Spindle Multipoint Lock

£45.79

(£38.16 ex VAT)

sku: EDLS-4R2HC
  • Two-hook, four-roller compact layout
  • Dual-follower version EDLS/4R2HC
  • 35 mm backset and 16 mm faceplate
  • Extendable system with optional shootbolt arrangements
  • Furniture and profile keeps must match the selected assembly
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

The Elite EDLS/4R2HC is the manufacturer's dual-follower compact version, distinct from the single-follower EDL/4R2HC.

Shorter-rebate application limits depend on the specified shootbolt arrangement and are not overall strip lengths. Matching furniture, connections and profile-specific keeps are required. The roller arrangement does not establish weatherproofing, thermal performance or universal replacement fit.

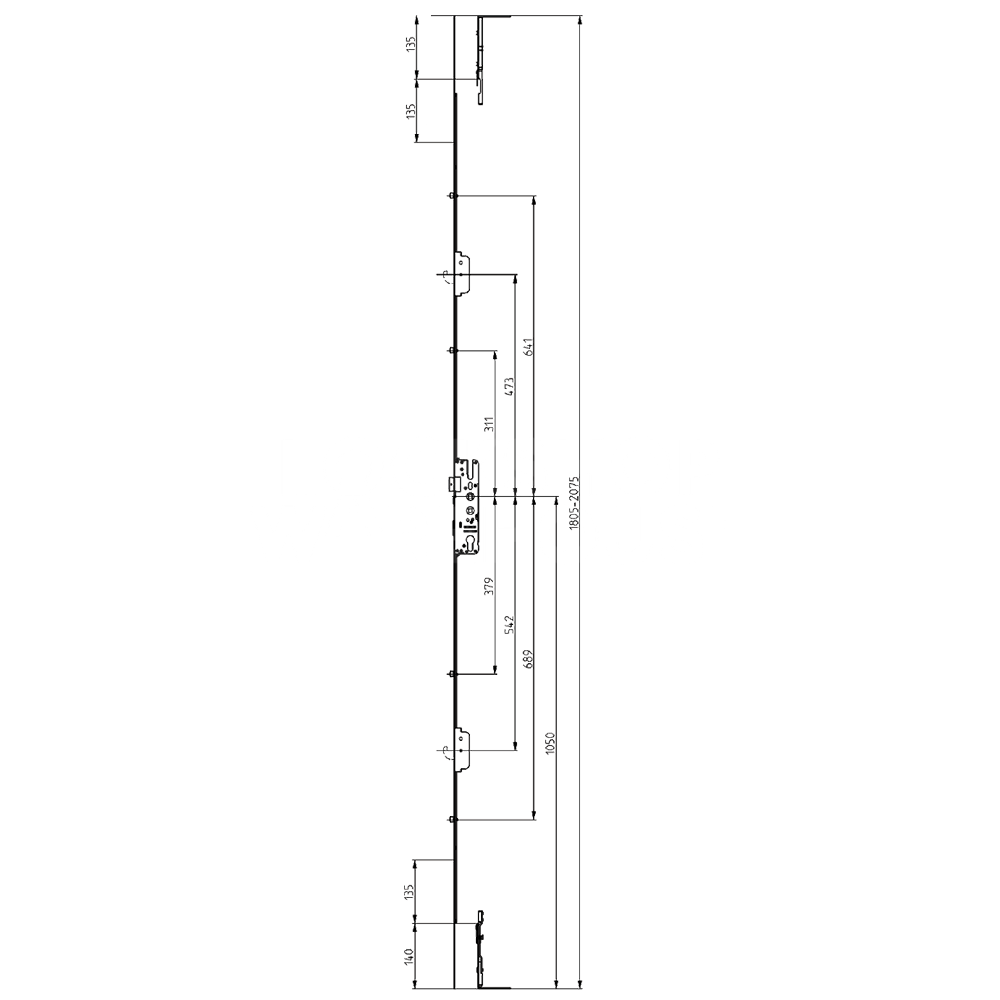

Dimensions Image: Elite Compact 2 Hook 4 Roller Twin Spindle Multipoint Lock
Part Size (mm)
Backset 35
Body Length 2075
Case Width 53
Case Height 200
Locking Point Hooks 2
Locking Point Roller 4
Faceplate Width 16

FAQs

The compact layout is intended for shorter rebates. The exact rebate height, shootbolt arrangement and existing locking-point positions must match; smaller-door fit is not universal.

The ordering table identifies EDLS/4R2HC as dual follower. The furniture and follower arrangement must be verified; lever/pad exterior entry behaviour is not proved by that designation alone.

No blanket coastal or harsh-weather guarantee is established. Assess the complete installation and maintenance requirements for the actual exposure.

The manufacturer describes an extendable system with shootbolt options. Match the exact connectors, action and profile keeps; no arbitrary extension or maximum-security claim is made.
