skip to Elite Heritage Automatic 3 Latch Multipoint Door Lock

Elite Heritage Automatic 3 Latch Multipoint Door Lock

£98.66

(£82.22 ex VAT)

sku: ELITE-0014
  • Automatic slam shut mechanism secures the door instantly upon closing
  • Features three deadlocking latch bolts for robust multipoint security
  • Built-in triggers automatically engage top and bottom bolts without manual operation
  • Designed for use with composite and timber door systems
  • Provides enhanced resistance against latch manipulation once the door is closed
  • Ideal for pull handle applications where effortless auto-locking is required
  • High corrosion resistance exceeding EN1670 Grade 5 standards

size

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Elite Heritage Automatic multipoint lock is a high-security slam shut system designed specifically for timber and composite doors. It functions by automatically engaging the locking points as soon as the door is closed, providing immediate security without the requirement to lift a lever handle or manually turn a key to throw the bolts.

This system utilises three deadlocking latch bolts. Upon closing the door, built-in triggers are activated to deploy the top and bottom bolts. This functionality makes the lock particularly suitable for doors fitted with fixed pull handles or for heritage-style installations that require a traditional aesthetic combined with modern multipoint performance.

The lock is commonly employed in new door manufacture or as a high-performance replacement part for existing automatic systems. Once the latch bolts are fully engaged, they are secured against external manipulation to provide enhanced protection against unauthorised entry. The assembly is treated with specialised surface protection, ensuring durability and performance in varying environmental conditions.

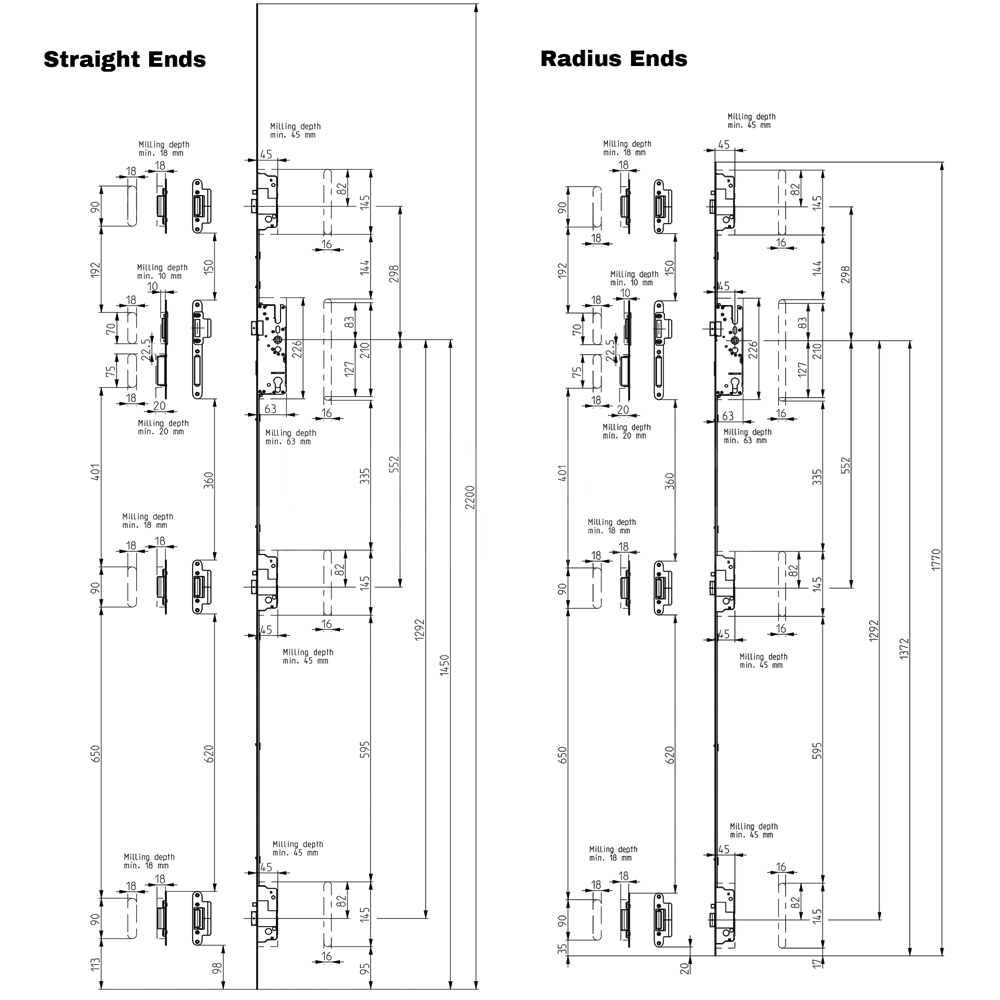

Dimensions Image: Elite Heritage Automatic 3 Latch Multipoint Door Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1770 2200
Case Width 54 -
Case Height 200 -
Locking Point Dead Bolt 3 -

FAQs

The Elite Heritage lock features built-in triggers that detect when the door meets the frame. Upon closing, these triggers automatically deploy the top and bottom deadlocking latch bolts, securing the door instantly without the need for manual intervention.

Yes, this lock is ideal for doors fitted with fixed pull handles. Since the security points engage automatically when the door is slammed shut, there is no requirement for a lever-handle to throw the bolts, allowing for a sleek, modern, or traditional aesthetic.

No, you do not need to lift a handle or manually turn a key to engage the multipoint locks. The system is designed to provide immediate security the moment the door is closed, making it an effortless solution for busy households.

Absolutely. The Elite Heritage lock is manufactured with high corrosion resistance that exceeds EN1670 Grade 5 standards. This ensures the mechanism remains reliable and functional even when exposed to varying outdoor environmental conditions.
