Elite Key Wind Multipoint Lock with 2 Deadlocking Latches

£74.70

(£62.25 ex VAT)

sku: EDLAKWSR-2H2045
  • Standard key-wind locking layout
  • Cylinder key or thumbturn engages and retracts the bolts and latch
  • 45 mm backset and 20 mm radius-ended faceplate
  • Manufacturer-listed for pull-handle applications
  • Furniture and release arrangement require exact matching
Document Icon Elite standard keywind: 45mm radius layout drawing (2022)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Elite EDLAKWSR/2H2045 operates through the cylinder key or thumbturn, rather than automatic trigger engagement.

The original standard-layout drawing is distinct from the Heritage key-wind version. Exact key travel and approved furniture must follow the matching operating instruction. A pull-handle application does not prove that every lever set is prohibited, nor does the lock establish emergency-exit suitability.

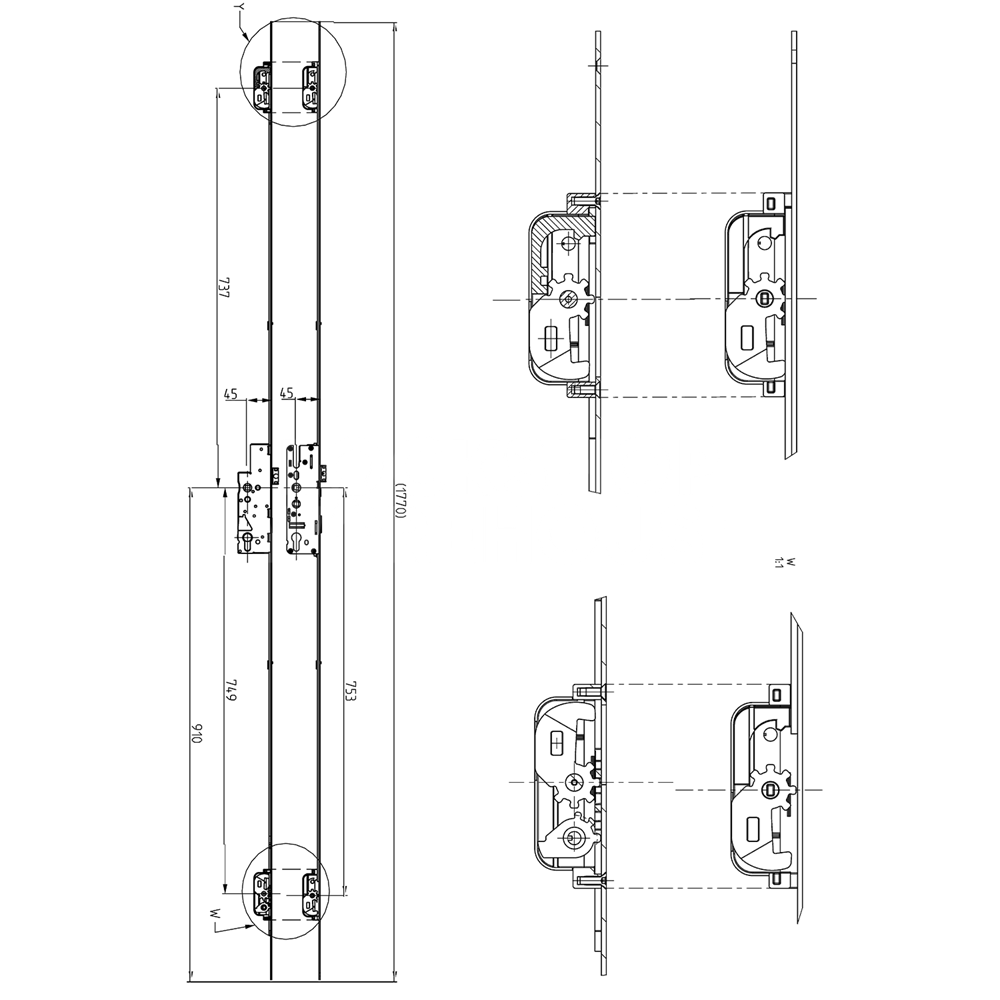

The stored manufacturer drawing shows the 45mm-backset, 20mm-faceplate radius-end layout issued in 2022. Match the supplied generation, complete strip, fixing positions and door preparation to the drawing. It is a dimensional reference, not an operating manual.

Dimensions Image: Elite Key Wind Multipoint Lock with 2 Deadlocking Latches
Part Size (mm)
centres 92
Backset 45
Body Length 1770
Case Width 54
Case Height 200
Locking Point Dead Bolt 2

FAQs

The manufacturer describes cylinder-key or thumbturn actuation of the bolts and latch. The exact turn count must come from the matching operating instruction.

This is the documented standard key-wind layout. No blanket forced-entry guarantee or exact installed-door certification is established here.

The manufacturer identifies pull-handle applications. Confirm approved operating furniture and release function for the exact assembly; no universal lever prohibition is established.

No guaranteed outdoor service life is established. Assess the actual exposure, installation and maintenance specification.
