Elite Lever Operated Latch & Deadbolt Twin Spindle Centre Case - 35/92

£41.39

(£34.49 ex VAT)

sku: G-BOX3592-SS
  • Supplier reference G/BOX3592/SS; retained catalogue SKU G-BOX3592-SS
  • Latch-and-deadbolt centre case only
  • Listed 35mm backset and twin-spindle arrangement
  • Exact Elite donor model, drive travel and connections must be matched
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Elite G/BOX3592/SS centre case is a replacement centre component, not a complete multipoint locking strip.

The exact supplier reference is G/BOX3592/SS. Elite full locks have different active, slave, compact, automatic and key-wind arrangements; this spare should not be treated as compatible across those models.

Elite full-lock range descriptions of surface protection or guarantees are not exact spare-case certificates or confirmed terms for this product. Replacement fit and the supplied case's own specification need to be checked separately.

Match the exact original case and lock generation, backset, spindle arrangement, case outline, drive connections and retaining fixings. Matching the brand or a single measurement does not establish a direct replacement.

A centre-case repair can retain the locking strip only when the replacement is an exact match and the strip, remote locking points and frame keeps remain serviceable. Have the fault and the complete assembled lock checked before assuming that the gearbox alone is sufficient.

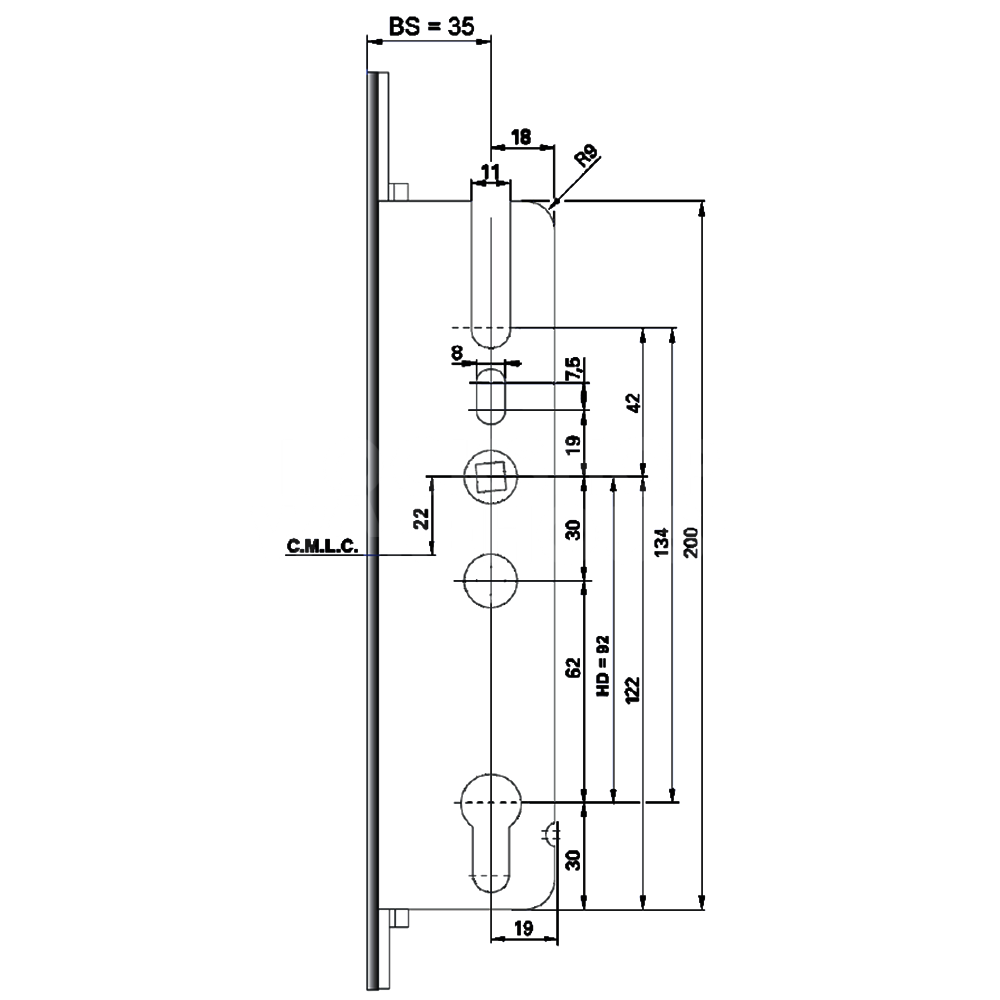

Dimensions Image: Elite Lever Operated Latch & Deadbolt Twin Spindle Centre Case - 35/92
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 226

FAQs

Check the handing and latch-reversal instructions for the actual supplied case. Do not use a generic screw-removal procedure or assume that every revision can be reversed in the same way.

Match the exact original case and lock generation, backset, spindle arrangement, case outline, drive connections and retaining fixings. Matching the brand or a single measurement does not establish a direct replacement. Confirm the full Elite donor reference and drive travel; the listed backset and centres alone do not prove interchangeability.

An exact spare-case corrosion test or certificate has not been established for G/BOX3592/SS. Elite full-lock surface-protection descriptions should not be treated as a verified corrosion grade or blanket harsh-environment guarantee for this replacement case.

The two spindle positions must be matched to the required handles and operating function. Twin-spindle construction alone does not establish split-spindle operation or guarantee key-only outside entry. Confirm the follower layout and handle requirements for the exact supplied case. A wider-range guarantee is not a confirmed spare-case warranty.
