Elite Standard 4 Roller Twin Spindle Multipoint Lock

£43.03

(£35.86 ex VAT)

sku: EDLS-4R
  • Twin spindle design allows for versatile handle configurations and operations.
  • Features four roller cams for enhanced weather sealing and door compression.
  • Central latch and deadbolt provide robust security at the midpoint.
  • Extendable ends are designed to accept optional shootbolts for increased protection.
  • High corrosion resistance with Silbear finish, tested to EN1670 Grade 5.
  • Standard 16mm faceplate ensures compatibility with a wide range of door profiles.
  • Designed for use with standard Euro profile cylinders.
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
tick Latch & Deadbolt

The Elite Standard 4 Roller Twin Spindle Multipoint Lock is a robust security solution engineered for use on both standard and tall door applications. This lever-operated mechanism features a central latch and deadbolt complemented by four roller cams distributed along the faceplate to ensure tight compression and weather sealing.

Built with a twin spindle system, the gearbox allows for versatile handle operations, making it suitable for various door configurations. The locking sequence is user-friendly: lifting the lever engages the rollers and deadbolt, while a single turn of the key secures the entire mechanism.

Typical applications include:

  • Replacement of existing multipoint locks in uPVC, timber, or composite doors.
  • New installations requiring high levels of security and weatherproofing.
  • Usage in coastal or exposed environments thanks to the Silbear surface protection.

This lock is designed with extendable ends, allowing for the easy addition of optional shootbolts to further enhance the security of the door at the top and bottom. It features a 16mm faceplate and is designed for compatibility with standard Euro profile cylinders.

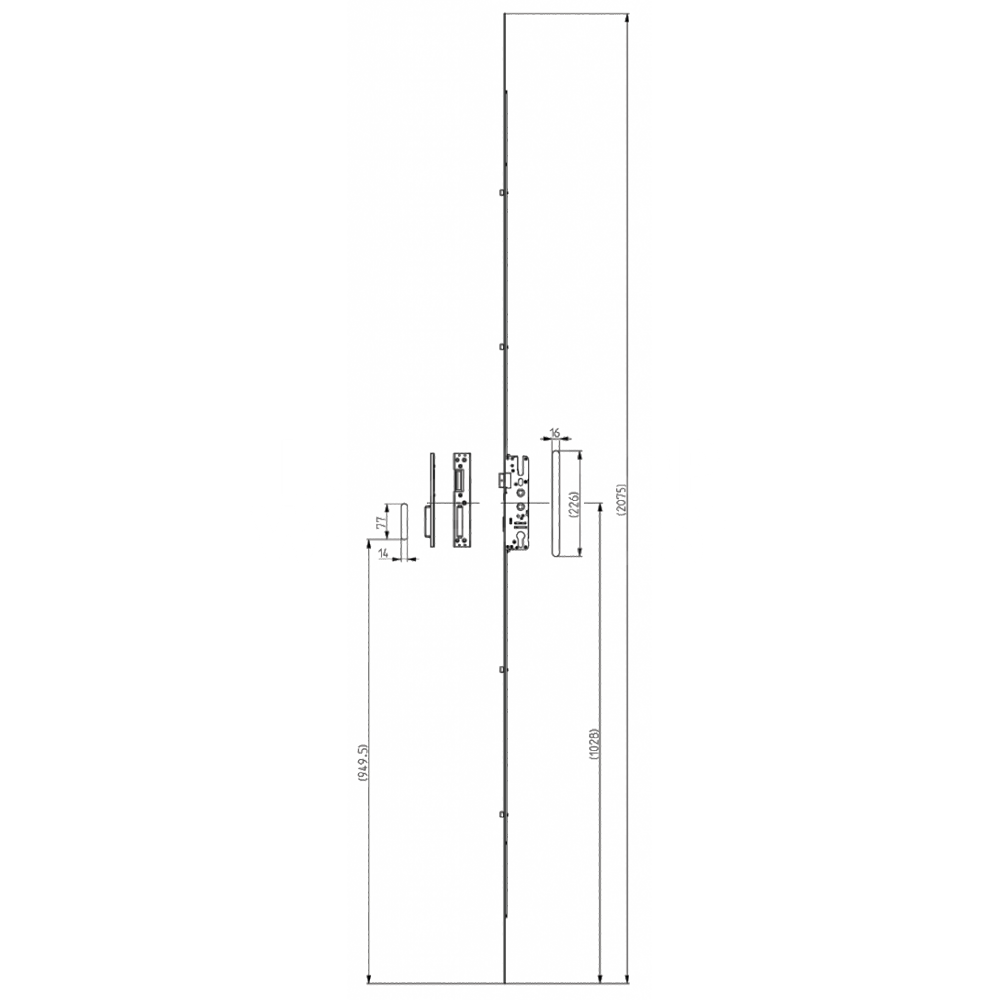

Part Size (mm)
centres 92
Backset 35
Body Length 2075
Case Width 50
Case Height 226
Locking Point Roller 4
Faceplate Width 16
