Elite Standard Multipoint Lock 4 Roller Single Spindle

£32.62

(£27.18 ex VAT)

sku: EDL-4RNE
  • Centre latch and deadbolt with four rollers
  • Match the complete lock and frame-keep layout
  • Check the follower, spindle and furniture arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

This Elite EDL/4RNE single-spindle multipoint lock is supplied as a full lock unit. Match the legacy NE centre case, furniture and keeps. Do not assume the extension provision or operating sequence of a current EDL/4R or EDLS/4R unit applies to this version.

Before replacement, compare the complete strip, centre case, fixing positions, locking points and handing with the existing installation. Use the operating instructions for the exact supplied version and matched furniture. Matching the brand or nominal backset alone is not enough.

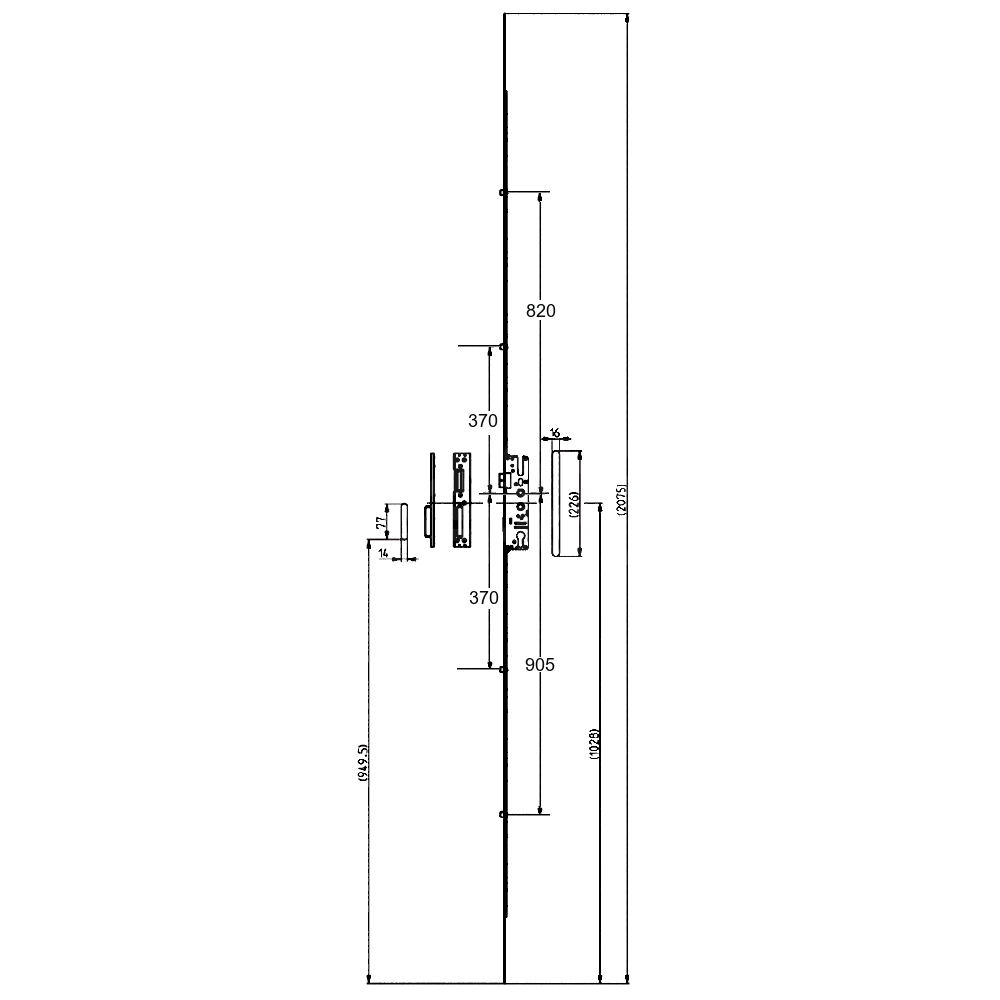

Dimensions Image: Elite Standard Multipoint Lock 4 Roller Single Spindle
Part Size (mm)
centres 92
Backset 35
Body Length 2075
Case Width 50
Case Height 226
Locking Point Roller 4
Faceplate Width 16

FAQs

The listing describes a lever-operated unit, but the exact operating sequence and handle arrangement must be confirmed for the fitted generation. Do not rely on a generic key-turn count or assume the outside handle retracts the latch.

The listed rollers form part of the lock layout. Their presence does not guarantee a draught-free, watertight or thermally improved door. Keep alignment, door condition and seals must be assessed separately; do not use a generic adjustment procedure for an unidentified mechanism.

No exact EDL/4RNE exposure specification or current test certificate has been established. A salt-spray claim for similar Elite hardware is not a guarantee of coastal or harsh-environment suitability; confirm the finish and exposure requirements for the installation.

The supplier lists a single-spindle Euro-profile case. Check the exact follower function, handle fixings, return springing, cylinder dimensions and cam clearance. Single spindle does not establish every lever/lever or lever/pad arrangement.
