skip to Elite Twin Spindle 2 Hook 4 Roller Multipoint Lock

Elite Twin Spindle 2 Hook 4 Roller Multipoint Lock

£47.18

(£39.32 ex VAT)

sku: EDLS-4R2H
  • Twin spindle mechanism allows for both standard lever/lever and night latch handle operations
  • Two bi-directional steel hooks provide exceptional resistance against forced entry and prying
  • Four rollers ensure consistent and even compression for enhanced weather sealing and thermal performance
  • Extendable design includes connections for optional top and bottom shootbolts to increase security
  • Silbear surface protection exceeds Grade 5 corrosion resistance for longevity in harsh environments
  • Engineered for use in doors requiring PAS 24, Document Q or Secured by Design certification
  • Compatible with standard Euro profile cylinders and a wide range of door materials
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
tick Latch & Deadbolt

The Elite Twin Spindle 2 Hook 4 Roller Multipoint Lock is a versatile high-security locking system designed for residential and commercial door applications. This lock is engineered to provide superior protection through a combination of physical security features and high-performance materials. It features a central gearbox with a latch and deadbolt, alongside two bi-directional steel hooks that grip the frame securely to prevent forced entry.

To ensure the door remains weatherproof and operates smoothly, the lock is fitted with four adjustable rollers. These rollers are positioned along the length of the faceplate to provide even compression, reducing the risk of door bowing and improving thermal efficiency. The system is also fully extendable, featuring integrated serrations designed to accept optional shootbolts for additional security at the top and bottom of the door.

The twin spindle function offers total flexibility for the end user, facilitating different handle configurations such as standard lever/lever or split spindle night latch operation. This makes the lock an ideal choice for both new installations and as a high-specification replacement part in existing doors. It is treated with Elite Silbear surface protection, ensuring it withstands extreme environmental conditions, exceeding 480 hours of salt spray testing.

  • Functional Security: Bi-directional hooks resist lifting and pulling attacks.
  • Compatibility: Suitable for use with timber, UPVC, and composite door systems.
  • Durability: Silbear finish provides Grade 5 corrosion resistance (EN1670).
  • System Integration: Designed to meet PAS 24 and Secured by Design standards when correctly installed.

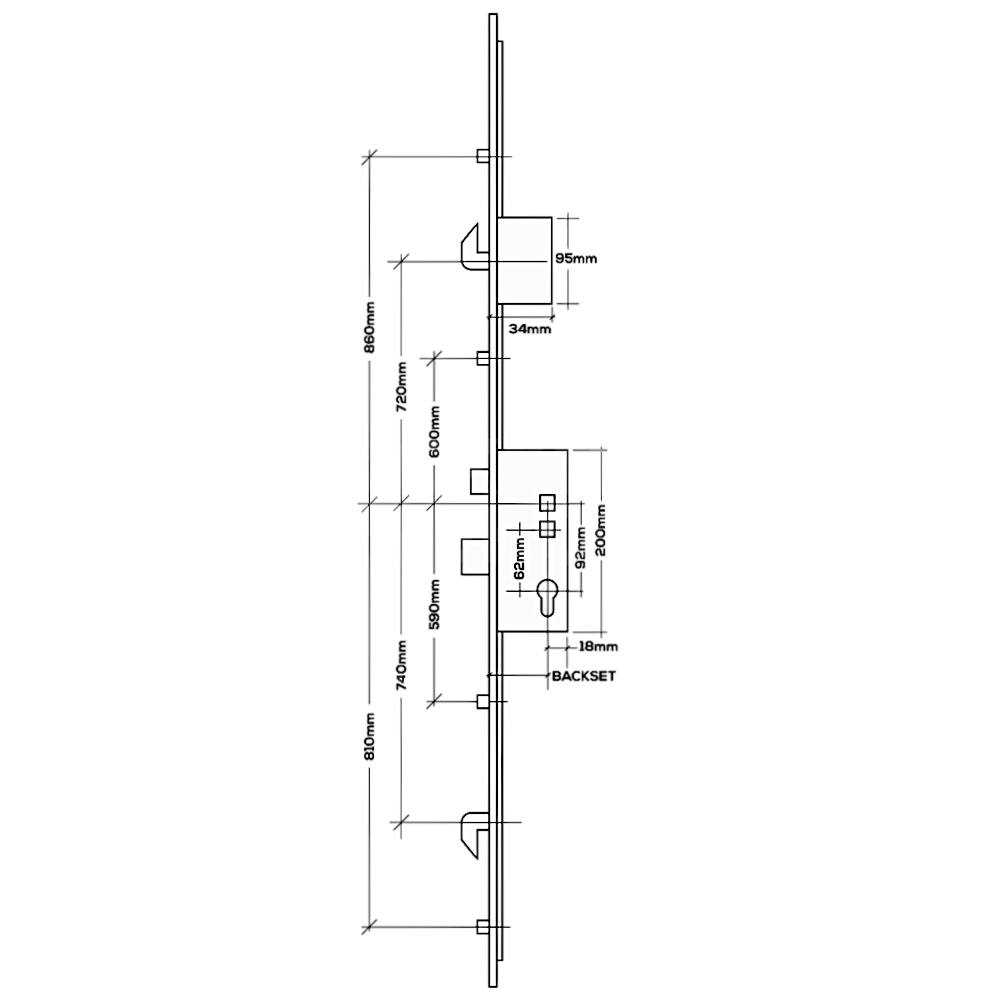

Dimensions Image: Elite Twin Spindle 2 Hook 4 Roller Multipoint Lock
Part Size (mm)
Backset 35
Body Length 2200
Case Width 53
Case Height 200
Locking Point Hooks 2
Locking Point Roller 4
Faceplate Width 16

FAQs

The twin spindle design provides versatility for your door's operation. It allows for both standard lever/lever handle setups and night latch (split spindle) functions. This makes it an adaptable choice for different security requirements and handle configurations.

This lock combines two specific features for optimal performance:

  • Two bi-directional steel hooks: These provide high-level resistance against prying and lifting attacks by gripping the frame securely.
  • Four adjustable rollers: These ensure even compression along the full length of the door, which improves thermal efficiency and weather sealing while preventing the door from bowing.

Yes, the lock features an extendable design with integrated serrated connections. This allows you to easily attach optional top and bottom shootbolts if you require additional security points for your door installation.

This lock is treated with Elite Silbear surface protection, which exceeds Grade 5 corrosion resistance (EN1670). It has been tested for over 480 hours of salt spray, ensuring long-term durability and smooth operation even in challenging environmental conditions.
