Elite Twin Spindle 2 Hook Multipoint Composite Door Lock

£57.79

(£48.16 ex VAT)

sku: ELITE-0012
  • Designed specifically for use in composite door systems.
  • Twin spindle mechanism allows for flexible handle operation and night latch functionality.
  • Features two high-strength hooks for enhanced security and protection.
  • Compatible with routing details for major manufacturers including Door Stop and Distinction.
  • Elite Silbear finish provides Grade 5 corrosion resistance for long-term durability.
  • Compliant with Document Q and Secured by Design standards.
  • Includes a 20mm radiused faceplate for a precise fit into the door slab.

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
tick Latch & Deadbolt

The Elite Twin Spindle 2 Hook Multipoint Lock is a high-security locking solution engineered specifically for composite door applications. It features a lever-operated latch and deadbolt system, integrated with dual spindles as standard to provide versatility for various handle configurations and operational requirements.

This lock is designed for compatibility with industry-standard routing details from major door slab manufacturers such as Door Stop, Distinction, and Capstone UK (Door Co). It incorporates two high-strength steel hooks that engage with the frame to provide superior resistance against forced entry. The 20mm faceplate is finished with radiused ends to ensure a neat, professional installation within the door edge.

The unit is protected by Elite Silbear Surface Protection, which exceeds 480 hours of salt spray testing (EN1670 Grade 5), making it suitable for use in harsh coastal or industrial environments. It is often used in both new installations and as a replacement unit in existing composite doors requiring high-security multipoint locking that meets Document Q and Secured by Design criteria.

  • Operation: Lift lever to engage locking points; turn key to secure.
  • Security: Twin hooks and deadbolt for multi-point engagement.
  • Durability: Grade 5 corrosion resistance for extreme weather protection.

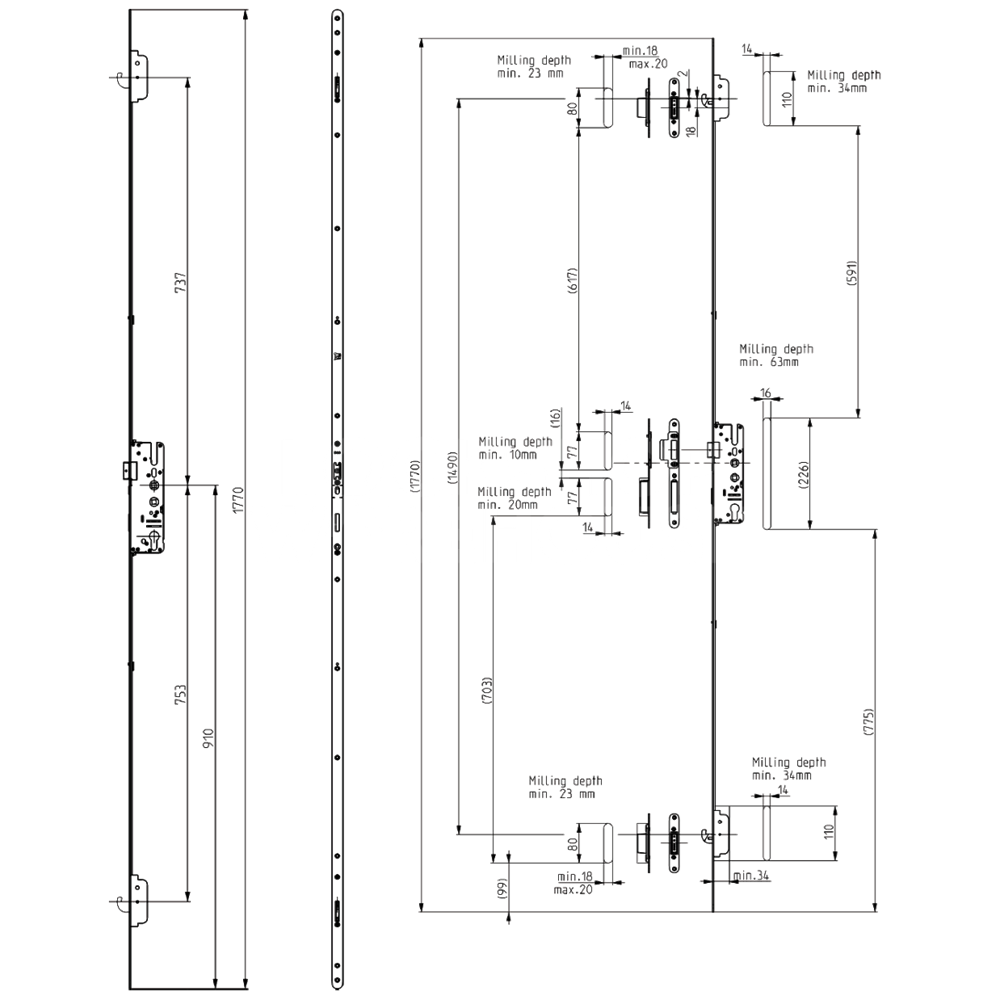

Dimensions Image: Elite Twin Spindle 2 Hook Multipoint Composite Door Lock
Part Min (mm) Max (mm)
Backset 35 45
Body Length 1770 -
Case Width 54 64
Case Height 200 -
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

The twin spindle design provides flexibility for different handle configurations. It allows for standard lever-lever operation or a split-spindle setup for night latch functionality. This allows you to set up the external handle so it remains locked even when the door is closed, requiring a key for entry from the outside.

This multipoint lock is specifically engineered for use with major composite door slabs. It is compatible with routing details from manufacturers including Door Stop, Distinction, and Capstone UK (Door Co). The 20mm faceplate features radiused ends to ensure a precise, professional fit.

Yes. This lock is treated with the Elite Silbear finish, which provides Grade 5 corrosion resistance. It has undergone over 480 hours of salt spray testing, making it exceptionally durable even in harsh coastal or industrial environments.

The lock is designed to meet high-security standards, including Document Q and Secured by Design. Security features include:

  • Two high-strength steel hooks to resist forced entry.
  • A central latch and deadbolt system.
  • Multi-point engagement points along the door edge for superior protection.
