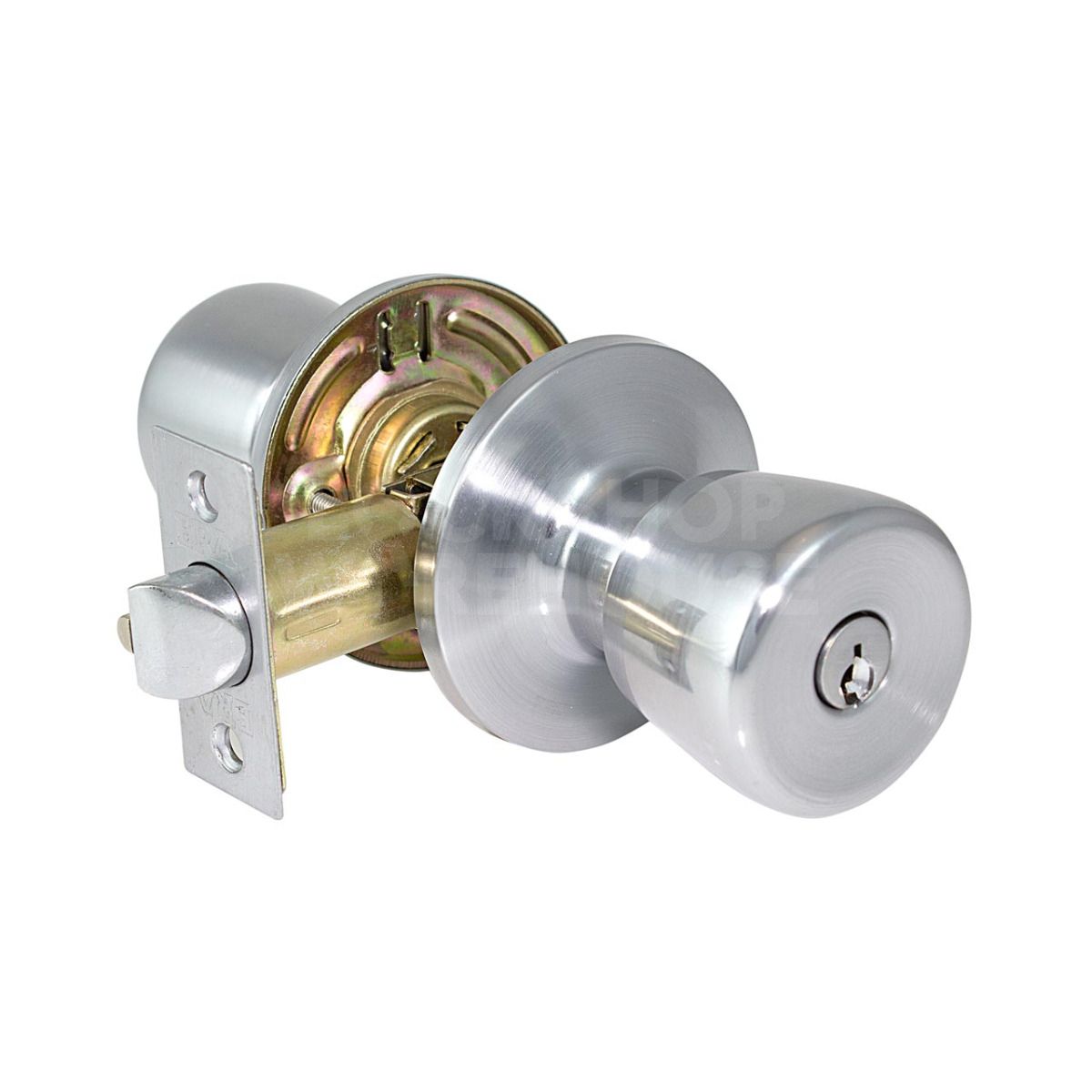

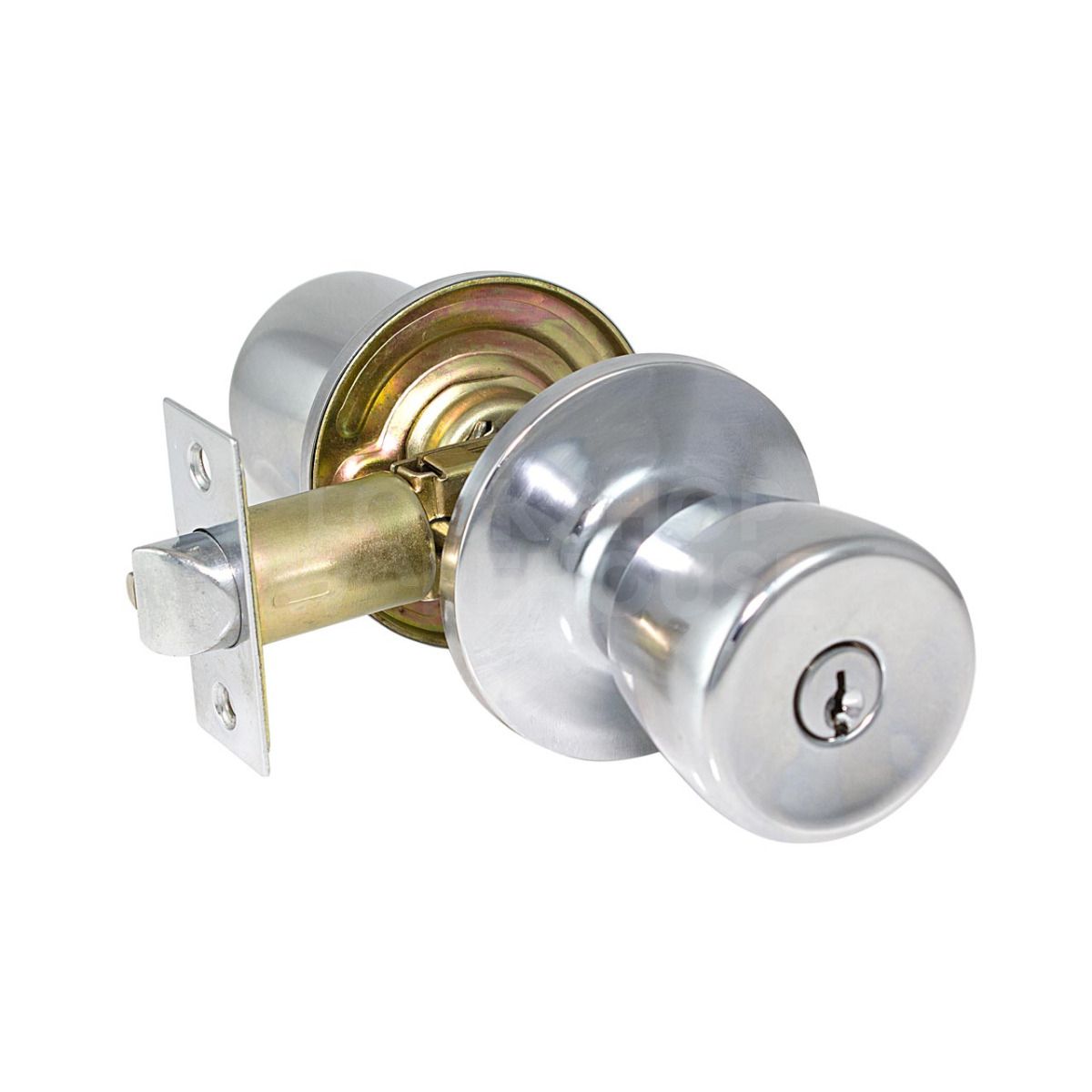

ERA 166 Entrance Knobset

£16.20

(£13.50 ex VAT)

sku: ERA166

Features

  • Includes 2 keys
  • Can be locked from either inside or outside
  • Designed for applications on front and back doors
  • Easy to install
  • Tubular latch adjustable to either 60mm or 70mm
Rose Diameter 67mm
Packaging Visi
Pack Quantity 1
Brand ERA
Backset 60mm to 70mm Adjustable
Weight 512g
Knob Projection 71mm
Knob Function Entrance
Knob Diameter 50mm
Keys Supplied 2
Mechanism 5 Pin
Forend Width 25mm
Forend Length 57mm

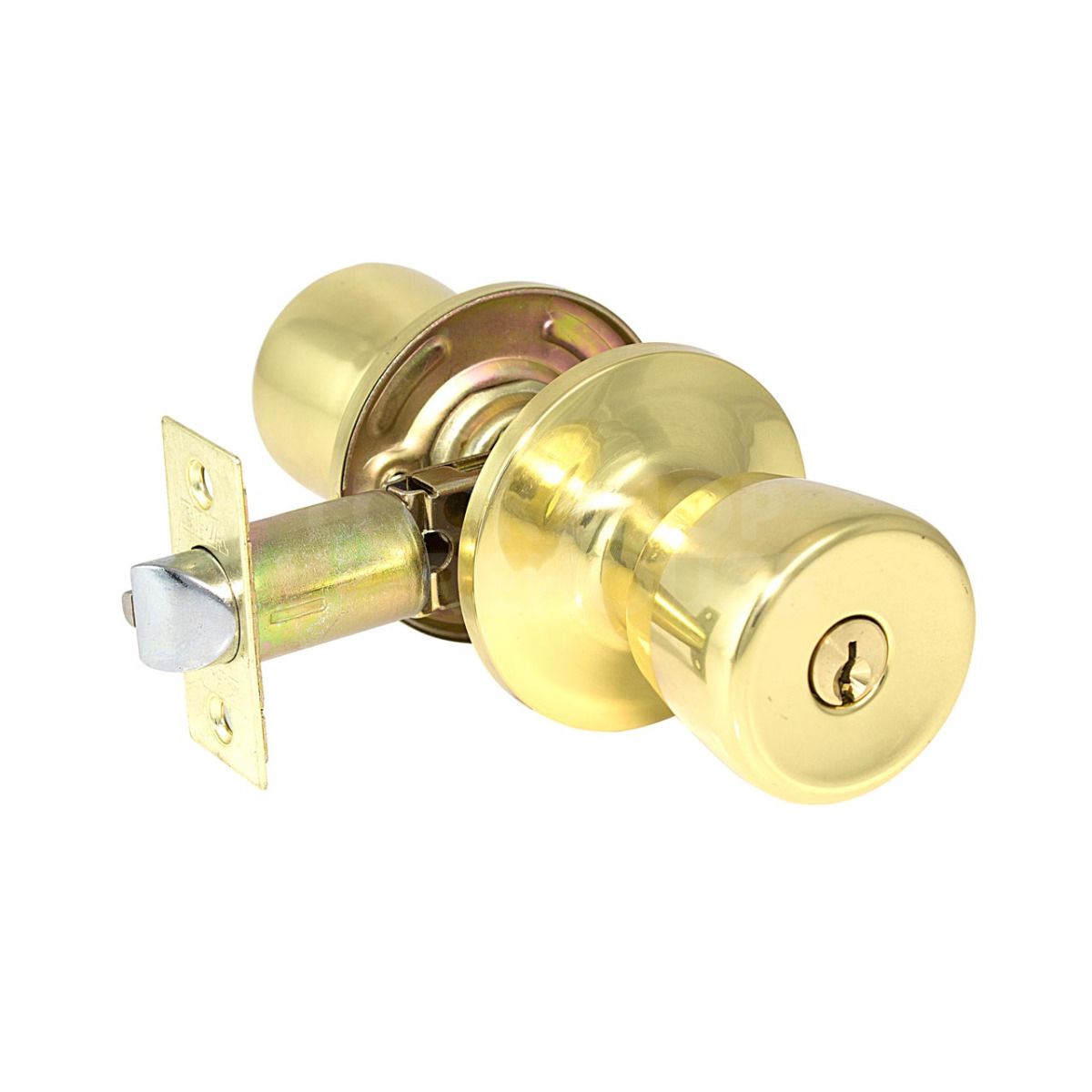

Finish Satin Chrome / Brass / Polished Chrome
Keyed Keyed To Differ

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating
tick Key Profile: 5 Pin
tick Key Profile: Standard

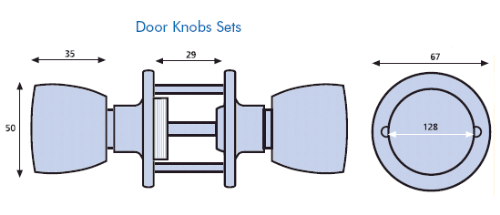

Dimensions Image: ERA 166 Entrance Knobset

Brand

SKU

ERA166

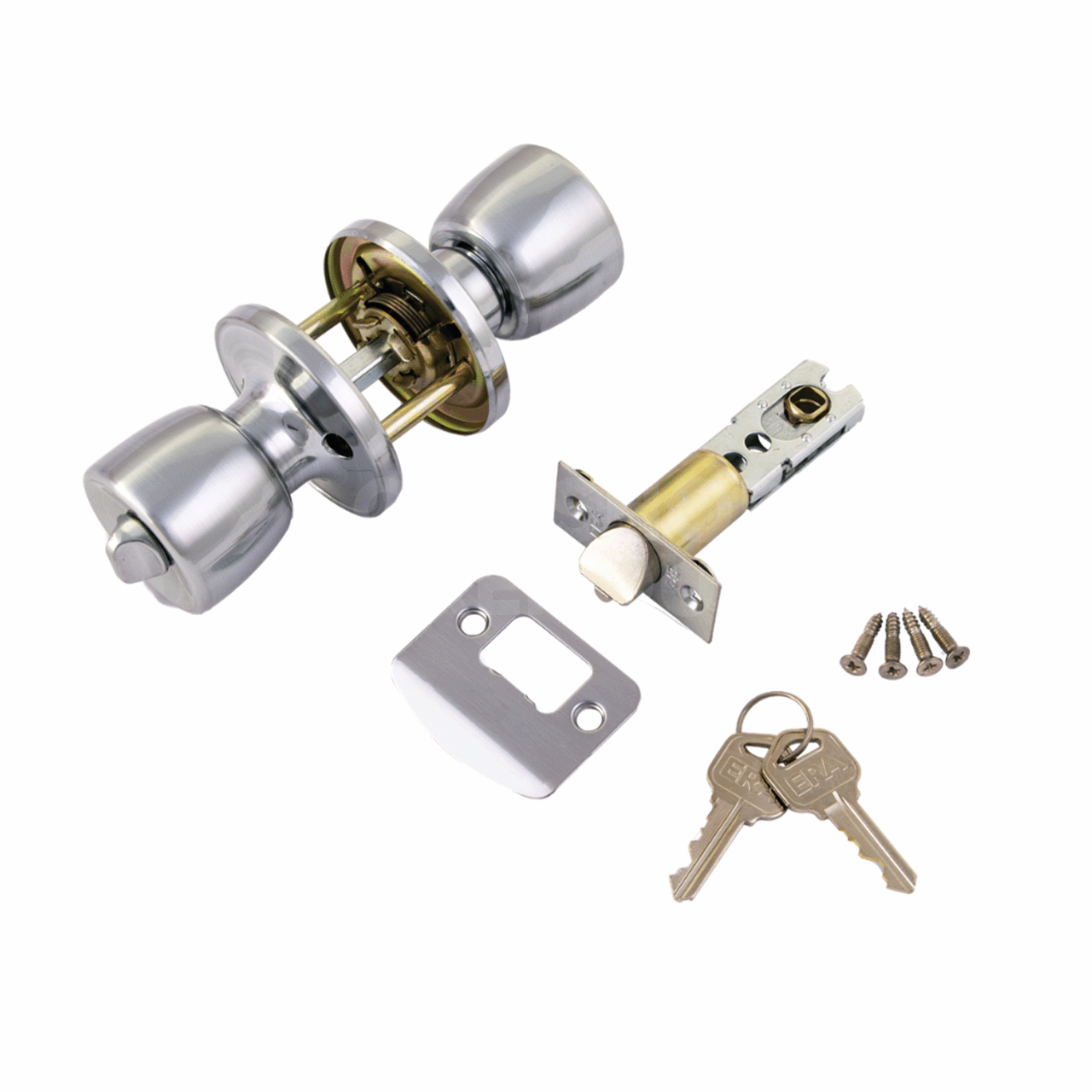

Box Contents

tubular latch

Fixing Kit

instructions

Door Knobs

2 keys

strike plate

Key Profile

Key Profile: 5 Pin
Key Profile: Standard

FAQs

The ERA 166 features a thumb-turn on the internal handle. When the internal handle is locked using this turn knob, a key is required to gain entry from the outside. If the internal handle is left in the unlocked position, the door remains accessible from both sides without a key.

Yes, this unit is designed for versatility with an adjustable tubular latch. It can be set to a backset of either 60mm or 70mm, allowing it to fit most standard front and back door preparations.

No, these knobsets are supplied "Keyed to Differ," meaning each unit has its own unique lock and key combination. They are not available for keyed-alike or master-keying configurations. Each pack is supplied with 2 keys as standard.

The ERA 166 entrance set has the following physical specifications:

  • Knob Diameter: 50mm
  • Rose Diameter: 67mm
  • Knob Projection: 71mm
  • Forend Size: 57mm x 25mm
