ERA 2 Hook 2 Roller Split Spindle Multipoint Lock

£78.26

(£65.22 ex VAT)

sku: 6235-00-85AA
  • Centre latch and deadbolt
  • Two outer hooks and two rollers
  • 35mm backset and 92mm centres
  • 16mm faceplate
  • Split-spindle arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This ERA 6235 layout uses two hooks and two rollers with a latch and deadbolt in the centre case. It is a different arrangement from the 6635 centre-hookbolt design.

Match the complete 6235 reference, strip and locking-point positions to the existing assembly. A visually similar hook-and-roller strip is not automatically a replacement.

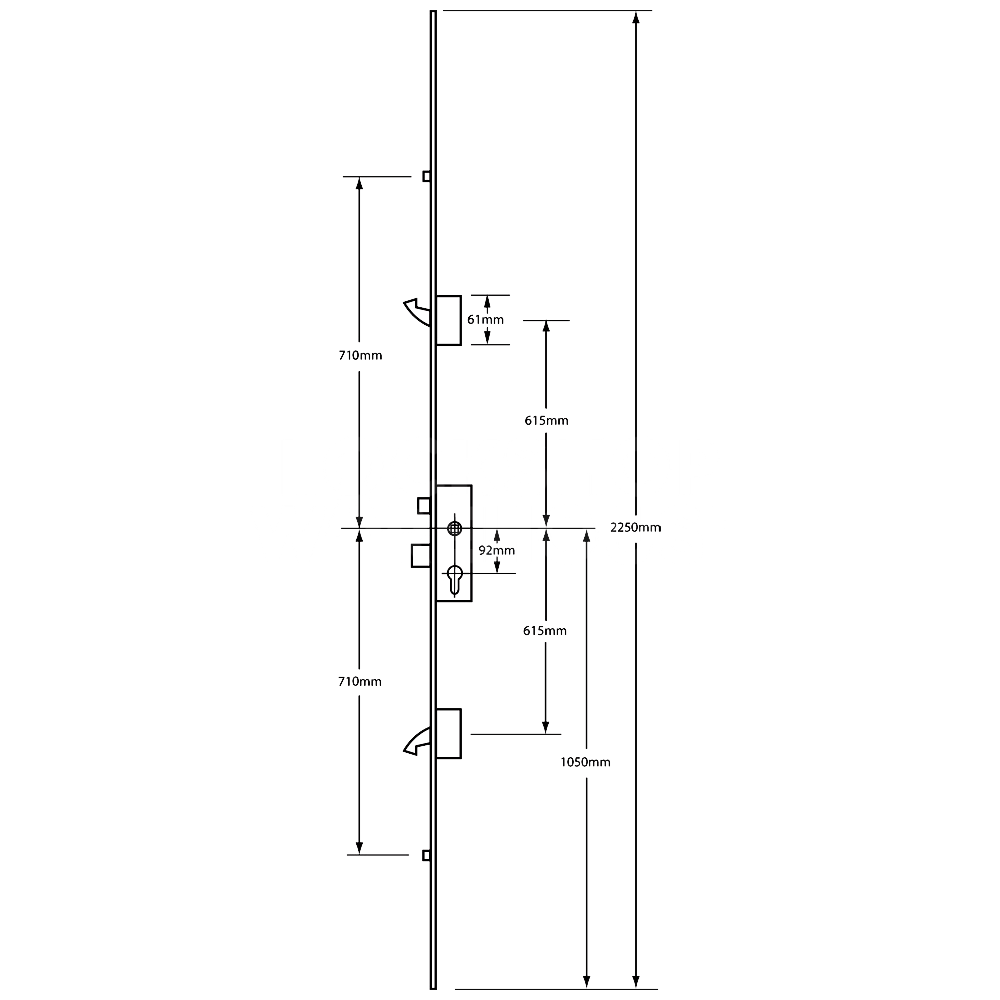

Dimensions Image: ERA 2 Hook 2 Roller Split Spindle Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 220
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

Match the full 6235-00-85AA reference, faceplate, case and all hook and roller positions. Door material alone is not enough.

Check the fixing positions and spindle components as well as the centres. They must suit the split-spindle case and required operation.

This 6235 has a centre deadbolt rather than the 6635 centre hookbolt. Both the centre case and the outer locking-point layout must match a replacement.

No. Check the complete strip and frame keeps as well as the latch orientation.
