skip to ERA 2 Hook Lever Operated Multipoint Lock

ERA 2 Hook Lever Operated Multipoint Lock

£56.28

(£46.90 ex VAT)

sku: 6345-81-85MA
  • Two outer small hooks
  • Centre latch and deadbolt
  • 45mm backset and 92mm centres
  • 20mm radius faceplate
  • Split-spindle arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The 6345-81-85MA is the radius-faceplate version identified by this complete reference. It combines two outer small hooks with a split-spindle latch and deadbolt centre case.

Match the supplied strip, hook positions, case outline and frame keeps to the existing assembly. Other 6345 suffixes should not be treated as the same lock.

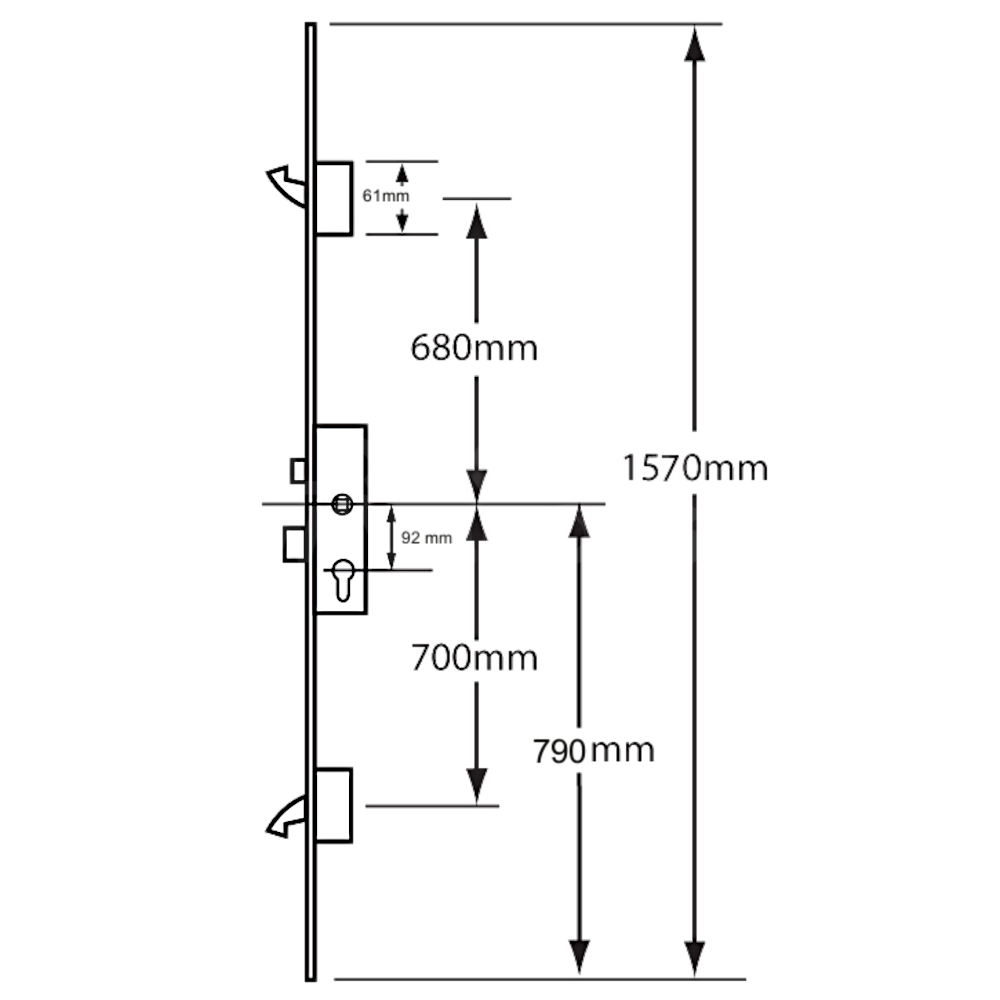

Dimensions Image: ERA 2 Hook Lever Operated Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Case Width 60
Case Height 220
Locking Point Hooks 2
Faceplate Width 20

FAQs

No. Match the complete reference, faceplate, strip length, case outline and hook positions as well as the backset and centres.

No. Check the full lock and keep arrangement, not only whether the latch can be oriented to the door.

No. Any rating depends on the specified complete door assembly, including its keeps, cylinder and furniture.

Check the fixing positions and spindle components against the split-spindle case and required operation. Matching 92mm centres alone is insufficient.
