skip to ERA 2 Hook Multipoint Door Lock

ERA 2 Hook Multipoint Door Lock

£82.34

(£68.62 ex VAT)

sku: 6345-687-85ZA-RH
  • Two outer hooks
  • Centre latch and deadbolt
  • 45mm backset and 92mm centres
  • 20mm faceplate
  • Reference 6345-687-85ZA-RH
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

This ERA unit is identified by the complete 6345-687-85ZA-RH reference. It has two outer hooks and a centre latch and deadbolt.

Match the handed assembly, strip and hook positions to the existing lock. The 45/92 measurements and a similar centre-case appearance are not enough to establish replacement fit.

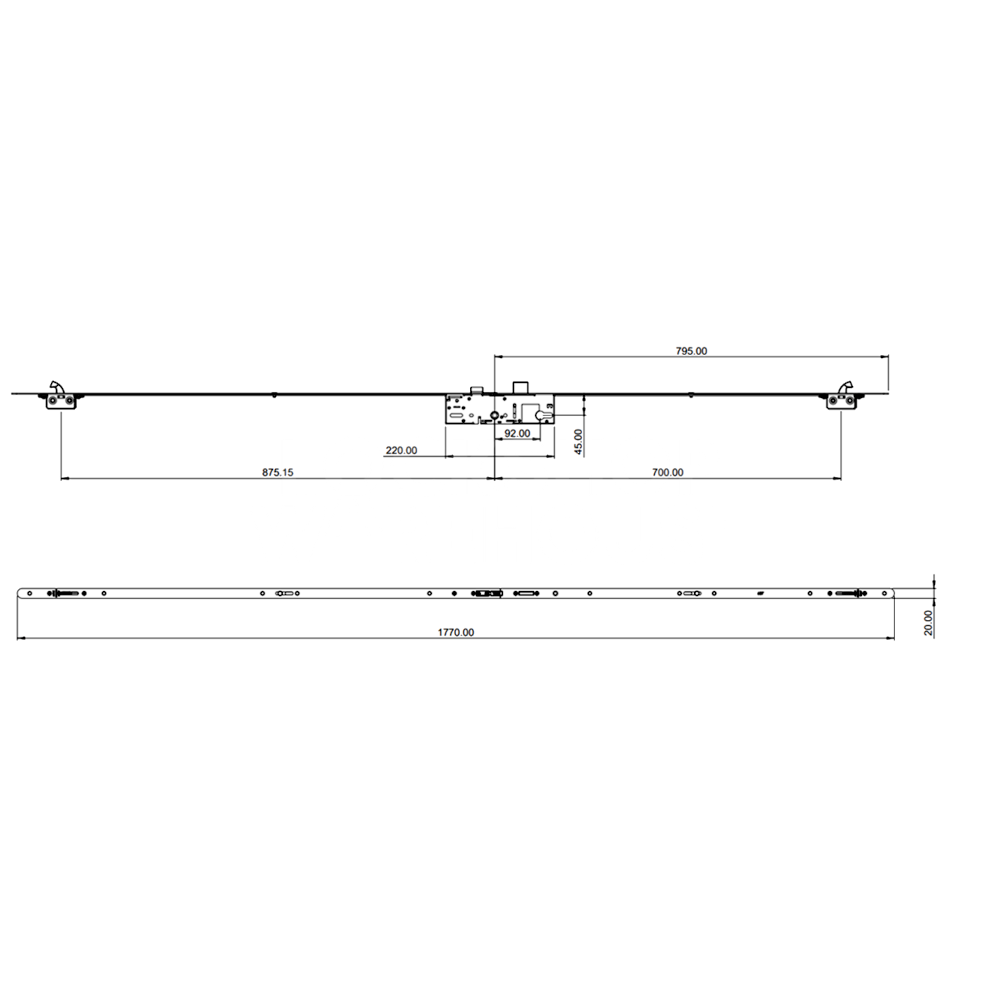

Dimensions Image: ERA 2 Hook Multipoint Door Lock
Part Size (mm)
centres 92
Backset 45
Body Length 1770
Case Width 60
Case Height 220
Case Depth 14
Locking Point Hooks 2
Faceplate Width 20

FAQs

Use the complete 6345-687-85ZA-RH reference. Match the handed assembly, faceplate, case outline and hook positions to the existing lock.

There are two outer hooks, with the latch and deadbolt in the centre case.

No replacement-fit guarantee should depend on that. Check and correct the door and keep alignment so the locking points move freely without forcing the handle.

Check the 92mm centres, handle fixing positions, follower arrangement and cylinder profile against the complete lock assembly.
