ERA 2 Hook Multipoint Lock with Split Spindle 45/92

£166.27

(£138.56 ex VAT)

sku: 6345-00-85MA
  • Two outer hooks
  • Centre latch and deadbolt
  • 45mm backset and 92mm centres
  • 16mm faceplate
  • Split-spindle arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This ERA 6345 unit has two outer hooks with a latch and deadbolt in the centre case. Match the complete -00-85MA reference and supplied strip layout when replacing an existing lock.

The split-spindle case needs matching furniture and spindle components. A matching 45/92 measurement or ERA branding is not enough to identify a replacement gearbox or complete strip.

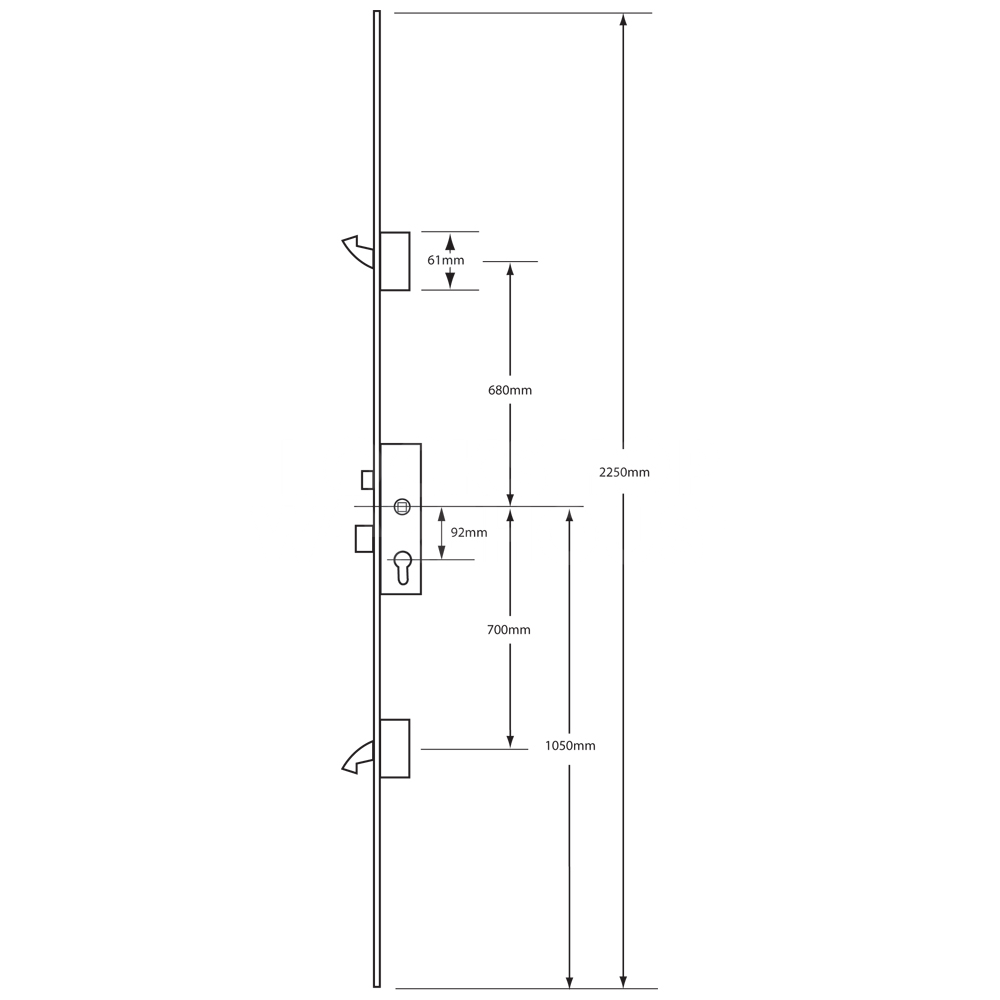

Dimensions Image: ERA 2 Hook Multipoint Lock with Split Spindle 45/92
Part Size (mm)
centres 92
Backset 45
Case Width 60
Case Height 220
Locking Point Hooks 2
Faceplate Width 16

FAQs

Match the furniture and spindle components to the required inside and outside operation, including handle fixing positions as well as the 92mm centres.

No. Match the complete reference, strip length, case outline, hook positions and keeps.

Compare their positions and engagement with the frame keeps. Similar hook shapes do not establish that a different strip fits.

No. Door material alone does not establish compatibility; the full lock and keep layout must match.
