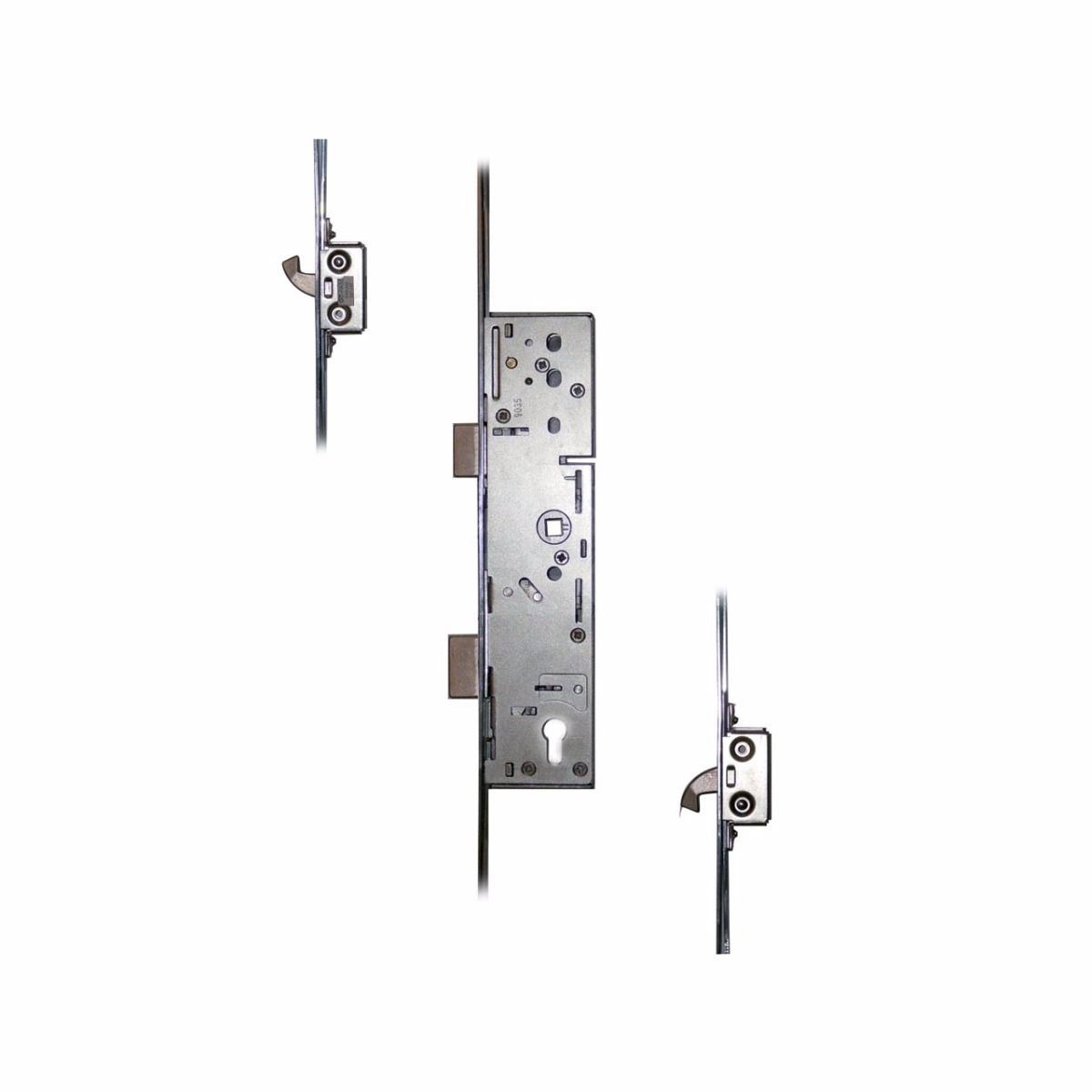

ERA 2 Hook Multipoint Lock with Split Spindle 45/92

£166.27

(£138.56 ex VAT)

sku: 6345-00-85MA
  • Dual bi-directional hooks provide enhanced security and anti-jemmy protection
  • Split spindle functionality supports lever/pad handle configurations for night latch operation
  • Central brass deadbolt with a 22mm throw for robust resistance against forced entry
  • Non-handed design with a reversible latch bolt to suit both left and right-handed doors
  • Integrated snib facility allows for temporary latch retraction and convenience
  • Engineered for compatibility with PVCu, composite, timber, and steel faced entrance doors
  • Designed to meet Secured by Design standards and PAS 24 security testing
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The ERA Lever Operated Latch & Deadbolt Multipoint Lock is a high-security solution designed for versatile application across PVCu, composite, timber, and steel faced entrance doors. This 2-hook mechanism provides significant protection against physical attack, featuring bi-directional hooks that grip the keeps to prevent the door from being jemmied or forced apart from the frame.

This variant is specifically designed with a split spindle operation. This makes it ideal for use with lever/pad handle sets where an external key is required to operate the latch, providing a night latch function for controlled access. The central gearbox is equipped with a 22mm throw brass deadbolt and a reversible latch bolt, ensuring the system can be adapted to any door handing during installation.

Commonly used for both new door builds and as a replacement unit in existing systems, this multipoint lock includes a snib facility as standard. It is engineered to meet the requirements of Secured by Design and has undergone rigorous testing to PAS 24 standards, offering professional-grade security for residential and commercial properties.

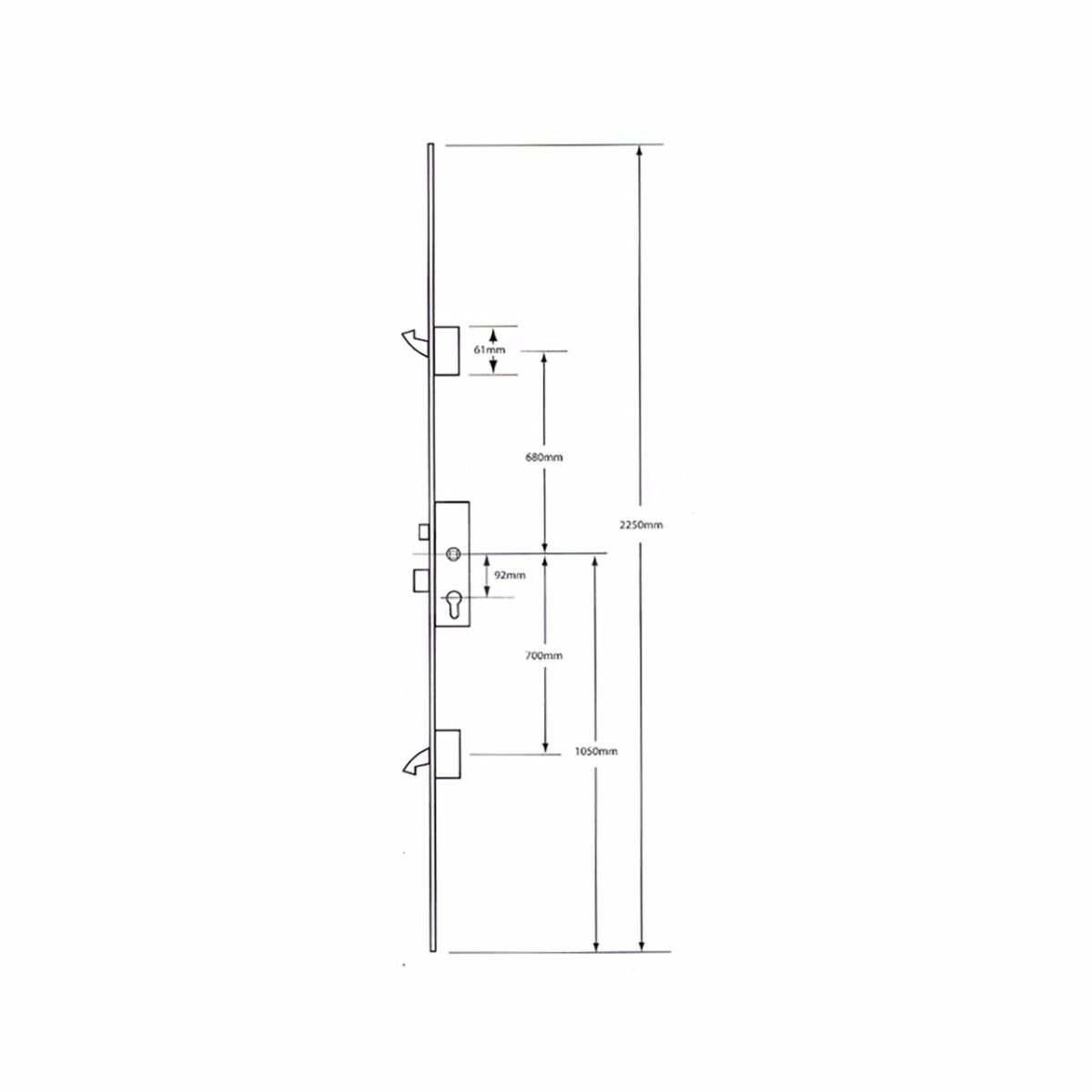

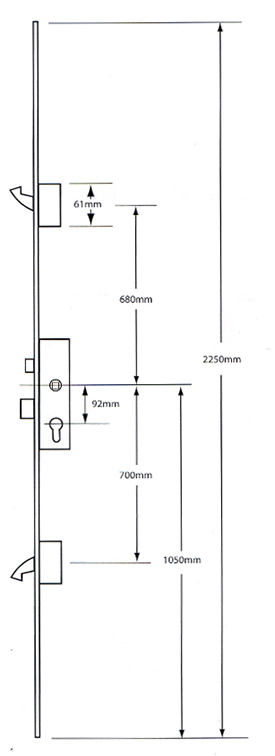

Dimensions Image: ERA 2 Hook Multipoint Lock with Split Spindle 45/92
Part Size (mm)
centres 92
Backset 45
Case Width 60
Case Height 220
Locking Point Hooks 2
Faceplate Width 16

FAQs

The split spindle mechanism supports a lever/pad handle configuration, which creates a night latch function. This means that while the internal handle works as normal, the external handle will not retract the latch without using a key, preventing unauthorized entry even when the door is not fully deadlocked.

Yes. This ERA multipoint lock features a non-handed design with a reversible latch bolt. This allows it to be easily adjusted to suit doors that open either to the left or the right.

The dual hooks operate in opposite directions to firmly grip the frame's keeps. This design provides significant anti-jemmy protection by preventing the door from being forced or pried away from the frame during a physical attack.

This versatile lock is engineered for use with a wide range of entrance doors, including:

  • PVCu
  • Composite
  • Timber
  • Steel faced doors
