ERA Split Spindle 2 Hook Multipoint Door Lock

£54.07

(£45.06 ex VAT)

sku: ERA-0328
  • Two outer large hooks
  • Centre latch and deadbolt
  • Split-spindle operation
  • 20mm radius faceplate
  • 35/92 and 45/92 versions

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

PAS 24:2012
Latch & Deadbolt

This ERA family combines two large outer hooks with a central latch and deadbolt. The 20mm radius faceplate and split-spindle arrangement distinguish it from other ERA strips.

Match the complete 5935 or 5945 reference and backset to the existing lock. Also compare the hook positions, overall strip, case outline and keeps; a similar ERA name is not a replacement specification.

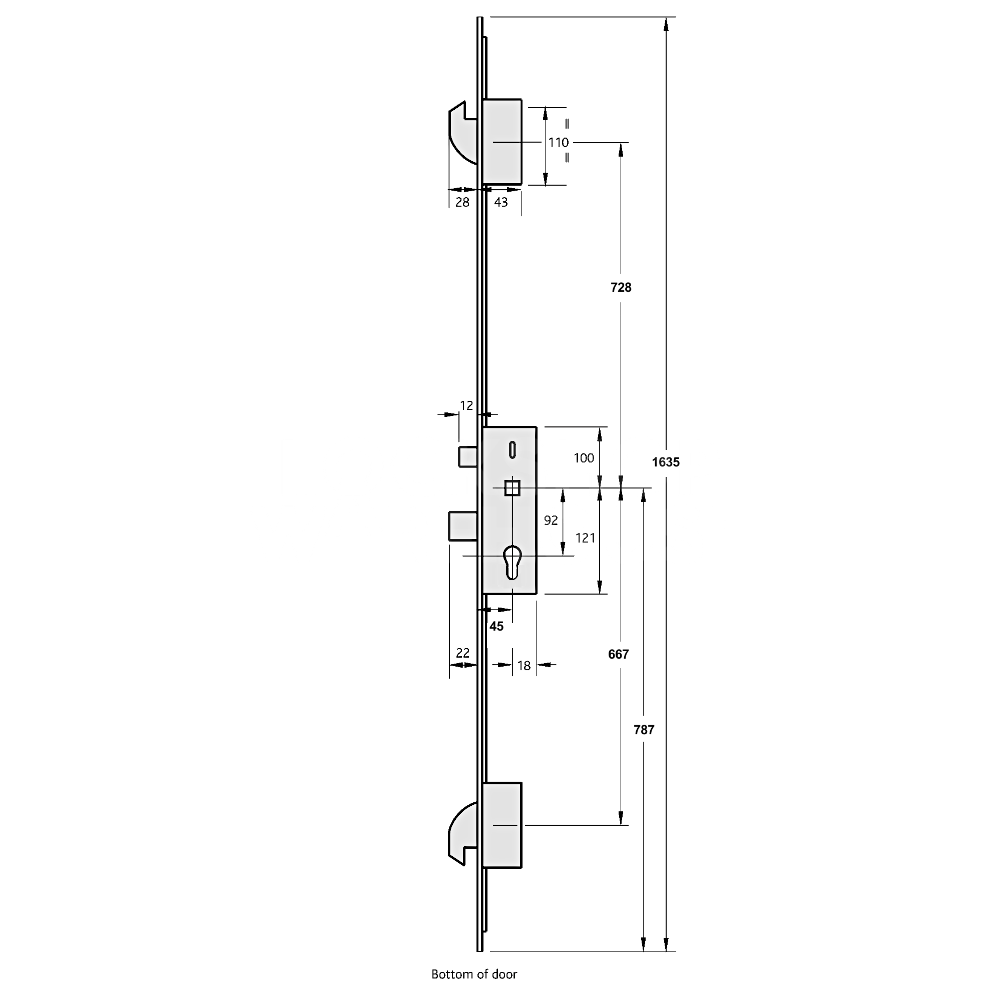

Dimensions Image: ERA Split Spindle 2 Hook Multipoint Door Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1635 -
Case Width 53 -
Case Height 220 -
Locking Point Hooks 2 -
Faceplate Width 20 -

Brand

SKU

ERA-0328

Certifications

tick PAS 24:2012

FAQs

Check the complete manufacturer reference, backset, centre case, faceplate and outer-hook positions. A reversible latch does not make different lock strips interchangeable.

It has two outer large hooks and a centre case containing the latch and deadbolt.

Only if the furniture and spindle components match this split-spindle case and the required operation. Check the handle fixing positions as well as the 92mm centres.

No. Door security depends on the complete tested assembly, including the door, frame, keeps, cylinder and furniture. A replacement strip is not a certification of an existing door.
