ERA 35/92 Split Spindle Latch & Hookbolt Centre Case

£23.94

(£19.95 ex VAT)

sku: 356635
  • Direct replacement for failed ERA multipoint lock gearboxes
  • 35mm backset with 92mm centres
  • Split spindle design for lever/lever or lever/pad handles
  • Secure latch and hookbolt locking configuration
  • Fully reversible latch for left or right-handed doors
  • Designed for use with Euro profile lock cylinders
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Hookbolt

The ERA Lever Operated Latch & Hookbolt Split Spindle Centre Case is a high-performance replacement component designed specifically for ERA multipoint locking systems. This gearbox is the perfect solution when only the centre mechanism of your lock has failed, saving the cost of a full system replacement.

This centre case features a 35mm backset and 92mm centres. The split spindle operation allows for versatile handle configurations, making it compatible with both lever/lever and lever/pad handle sets. It provides robust security through a combined latch and hookbolt mechanism.

  • Backset: 35mm
  • Centres: 92mm
  • Operation: Split Spindle
  • Locking Points: Latch and Hookbolt

The latch is fully reversible, allowing the unit to be used on both left and right-handed doors. To reverse, simply remove the screws, flip the latch, and re-secure. The case is designed to accommodate standard Euro profile cylinders for seamless integration into your existing door hardware.

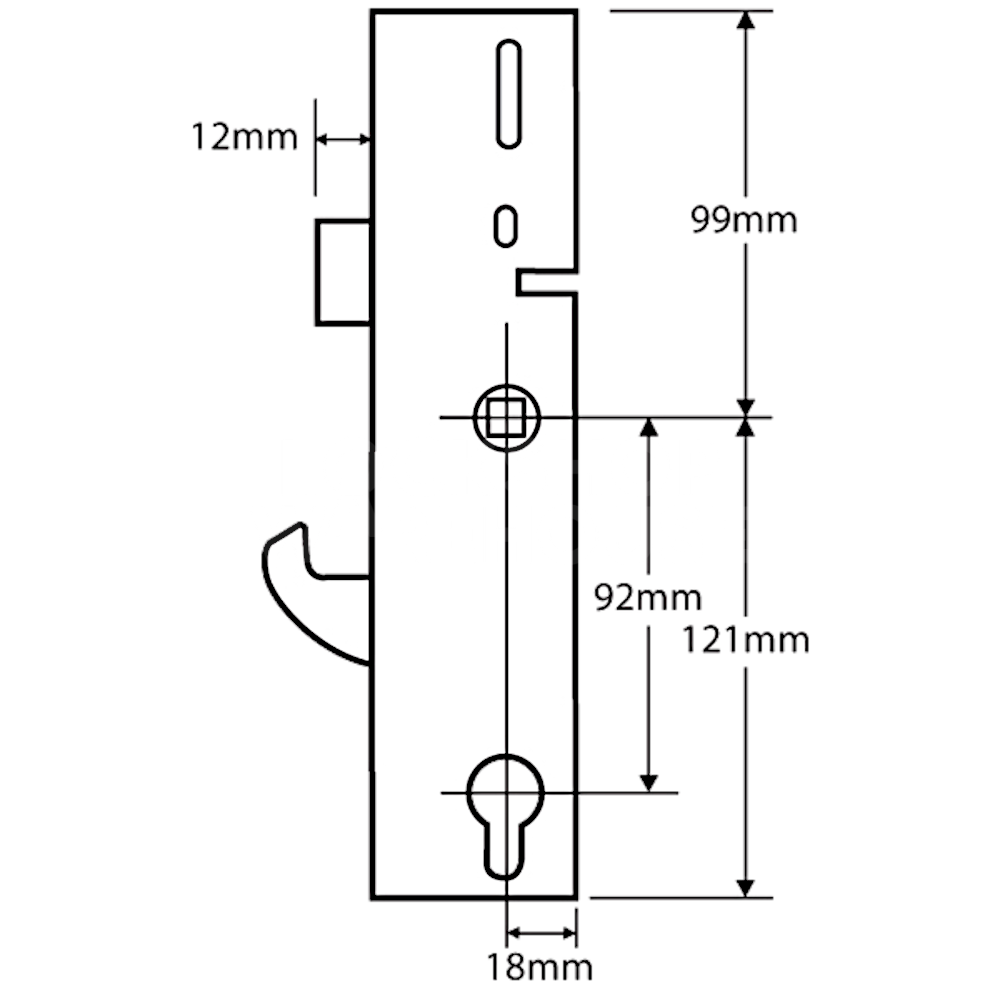

Dimensions Image: ERA 35/92 Split Spindle Latch & Hookbolt Centre Case
Part Size (mm)
centres 92
Backset 35

FAQs

This component is a direct replacement for ERA multipoint lock gearboxes. To ensure it fits, confirm your current lock has a 35mm backset and 92mm centres. It is designed to replace only the central mechanism, which is a cost-effective alternative to replacing the entire locking strip.

The split spindle design is highly versatile and works with both lever/lever and lever/pad handle configurations. This makes it suitable for doors where you want to restrict external access unless a key is used to retract the latch.

Yes, the latch is fully reversible. To change the orientation, simply remove the screws holding the latch in place, flip the latch over to suit your door’s handing, and then re-secure the screws.

This centre case is designed for use with standard Euro profile cylinders. It provides security through a combined latch and hookbolt mechanism, offering robust protection for the main locking point of your door.
