ERA 6635 Lever Operated Hook and Roller Multipoint Lock

£83.98

(£69.98 ex VAT)

sku: 6635-00-85BB
  • Centre latch and hookbolt
  • Two outer hooks plus two rollers
  • 35mm backset and 92mm centres
  • 16mm faceplate
  • Split-spindle arrangement
Document Icon ERA 6635 AA / BB: manufacturer nominal layouts and ordering guide
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Hookbolt

The 6635-00-85BB combines a centre hookbolt with two outer hooks and two rollers. ERA calls this a three-hook, two-roller arrangement because the centre hookbolt is included in the hook total.

The BB layout is different from the AA layout. Match the full suffix and all outer locking-point positions, rather than using the shared 35/92 measurements to select a replacement.

The stored manufacturer sheet shows nominal layouts and ordering references. Compare the actual supplied revision and existing preparation before machining; it is not a measurement of the delivered lock or a certificate for the complete door.

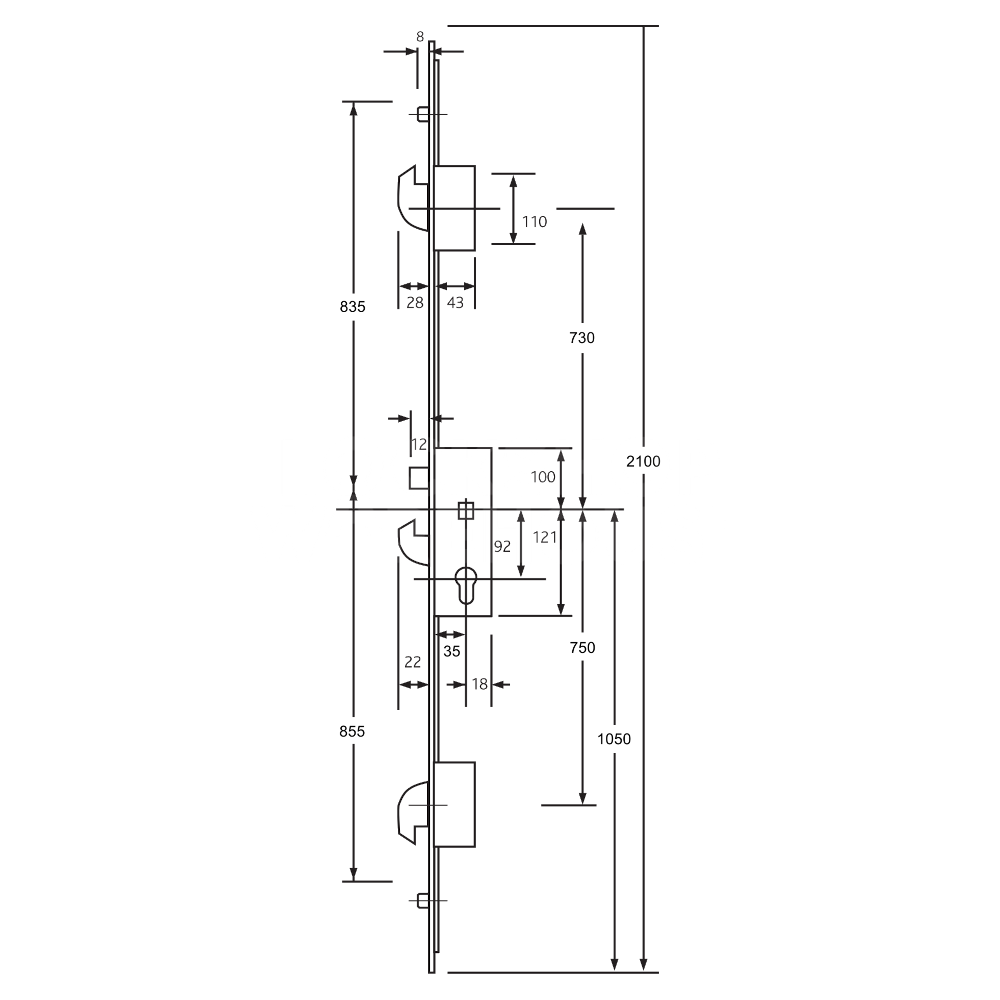

Dimensions Image: ERA 6635 Lever Operated Hook and Roller Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Body Length 2100
Case Width 53
Case Height 221
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The outer hooks and rollers occupy different positions on the strip. Match the complete suffix and locking-point layout; the shared 35/92 measurements do not make the versions interchangeable.

The total includes the centre hookbolt as well as the two outer hooks. There are also two rollers.

Check the 92mm centres, fixing positions and spindle components against the split-spindle centre case and the required inside and outside operation.

No. Check the centre case, faceplate and every outer hook and roller position against the existing lock and keeps.
