ERA 6635 Multipoint Door Lock Latch & Hook Split Spindle

£145.64

(£121.37 ex VAT)

sku: 6635-00-85-AA
  • Centre latch and hookbolt
  • Two outer hooks and two rollers
  • 35mm backset with 92mm centres
  • 16mm faceplate
  • Split-spindle arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Hookbolt

This ERA 6635 arrangement uses a centre hookbolt, two outer hooks and two rollers. Match the complete AA reference and supplied strip to the existing lock.

Do not substitute the BB layout merely because the backset and centres match. Compare every outer locking-point position, the case outline and the frame keeps before ordering.

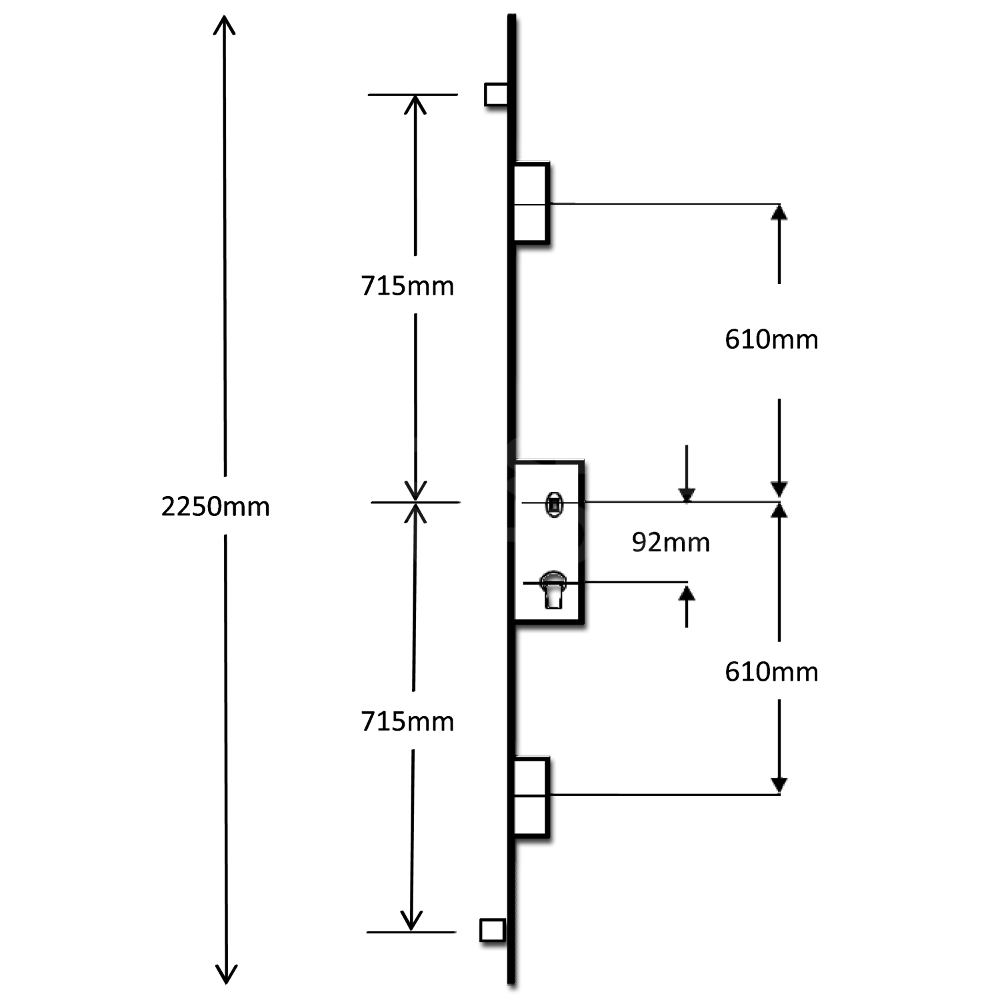

Dimensions Image: ERA 6635 Multipoint Door Lock Latch & Hook Split Spindle
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 220
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

Do not assume so. The AA and BB layouts have different outer-hook and roller positions, despite sharing the same nominal backset and centres.

The handle centres, fixing positions and spindle components must suit the centre case and the required outside operation. A split-spindle description alone is not a handle-fit guarantee.

No. Check the full lock assembly and frame keeps as well as the latch orientation.

The centre case has a latch and hookbolt, with two additional outer hooks and two rollers along the strip.
