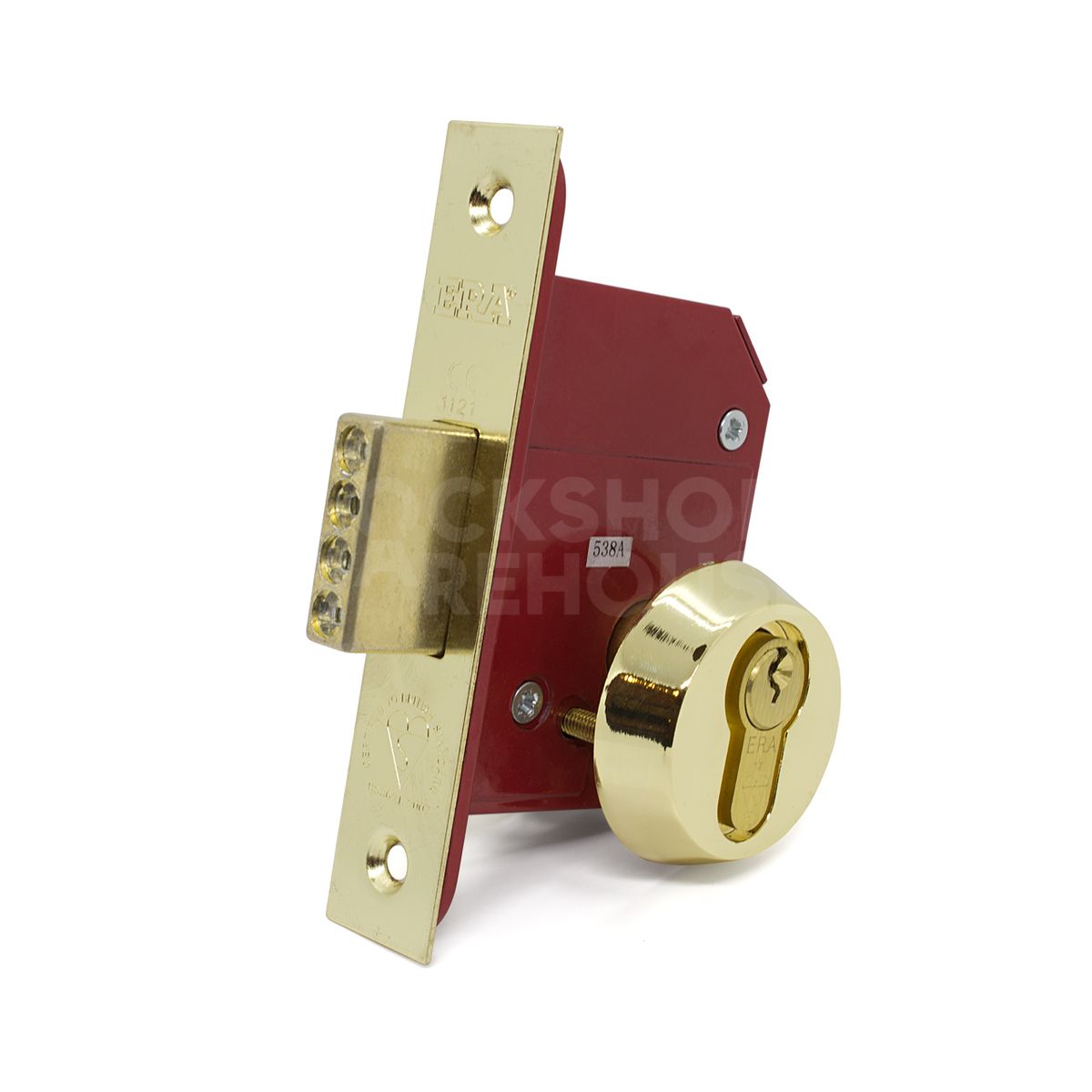

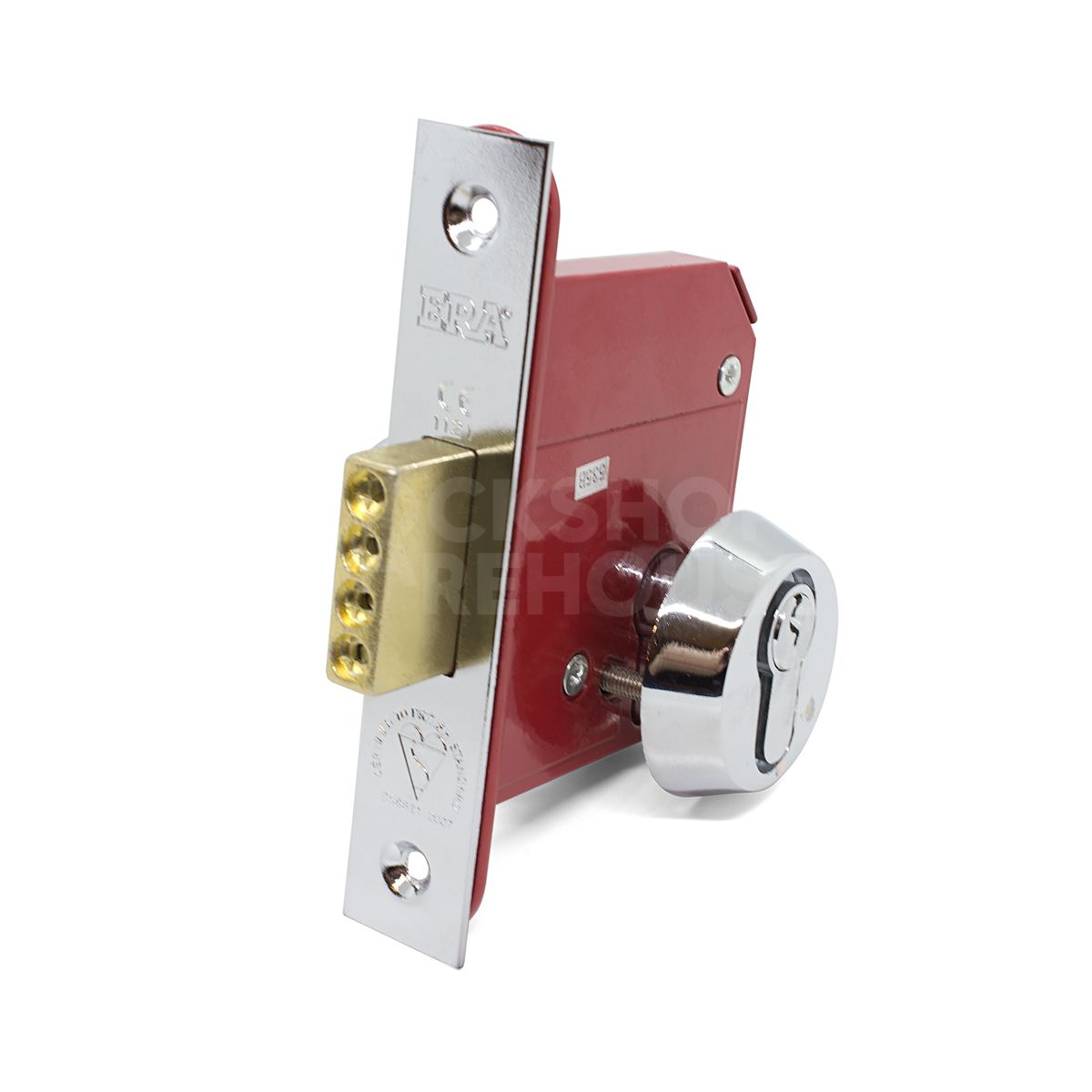

ERA Euro Double Cylinder Mortice Deadlock- BS3621

£59.99

(£49.99 ex VAT)

sku: ERA263

High security Euro Cylinder Mortice Deadlock conforming to British Standard 3621:2007. Drilling, hacksawing and picking resistant. Supplied complete with a High Security 6 pin Euro Profile Cylinder.


Features

Conforms to the BS 3621:2007; meets the exacting demands of insurance companies and the Police
20mm bolt throw for additional strength and security
Designed with hardened steel plates to resist drilling and four hardened steel rollers in the deadbolt to resist hacksawing
Supplied complete with a High Security 6 pin Euro Profile Cylinder - picking and drill resistant
Bolt through heavy duty security roses protect the cylinder

Can be keyed alike to match other locks for the same key solution on your door.

Case Size

Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

star Recommended
heavy-duty Heavy Duty
9/10 Security Rating
british-standard British Standard - BS8621
tick Key Profile: Standard

ERA Fortress Euro Deadlock Details

The Fortress Euro Cylinder British Standard (BS) Deadbolt Mortice Door Lock is a high security deadlock, conforming to the BS 3621:2007; meets the exacting demands of insurance companies and the Police. Higher security and strength are delivered by a 20mm bolt throw in every lock. Designed with hardened steel plates to resist drilling and four hardened steel rollers in the deadbolt to resist hacksawing. Supplied complete with a High Security 6 pin Euro Profile Cylinder, the Fortress BS Mortice Lock is resistant against picking or drill attacks. Bolt through heavy duty security roses protect the cylinder. Available in 64mm (2 ½") and 76mm (3") in brass effect, satin and a range of chrome effect finishes. Rebate set to enable use in French rebated doors available separately.

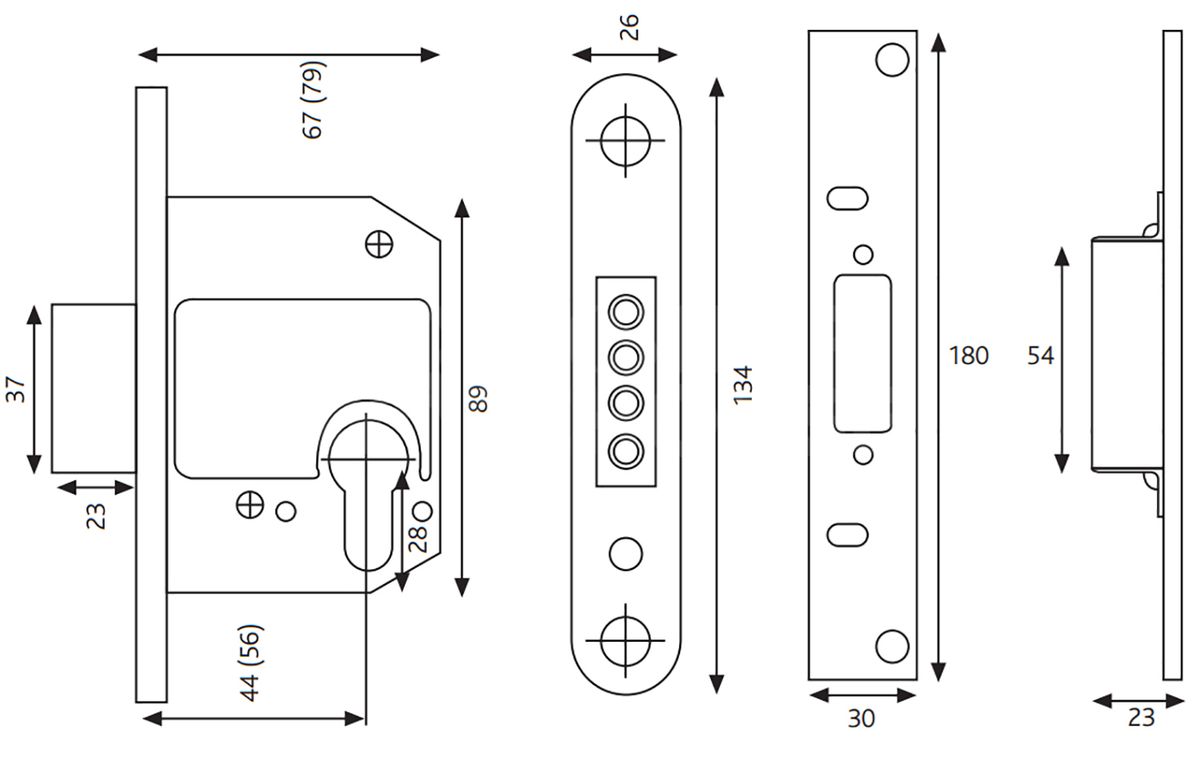

Dimensions Image: ERA Euro Double Cylinder Mortice Deadlock- BS3621
Part Min (mm) Max (mm)
Backset 44 57
Bolt Length 23 -
Case Width 67 79
Case Height 89 -
Forend Width 26 -
Forend Length 134 -
Strike Plate Width 30 -
Strike Plate Length 180 -
Dimensions Image: ERA Euro Double Cylinder Mortice Deadlock- BS3621

Brand

SKU

ERA263

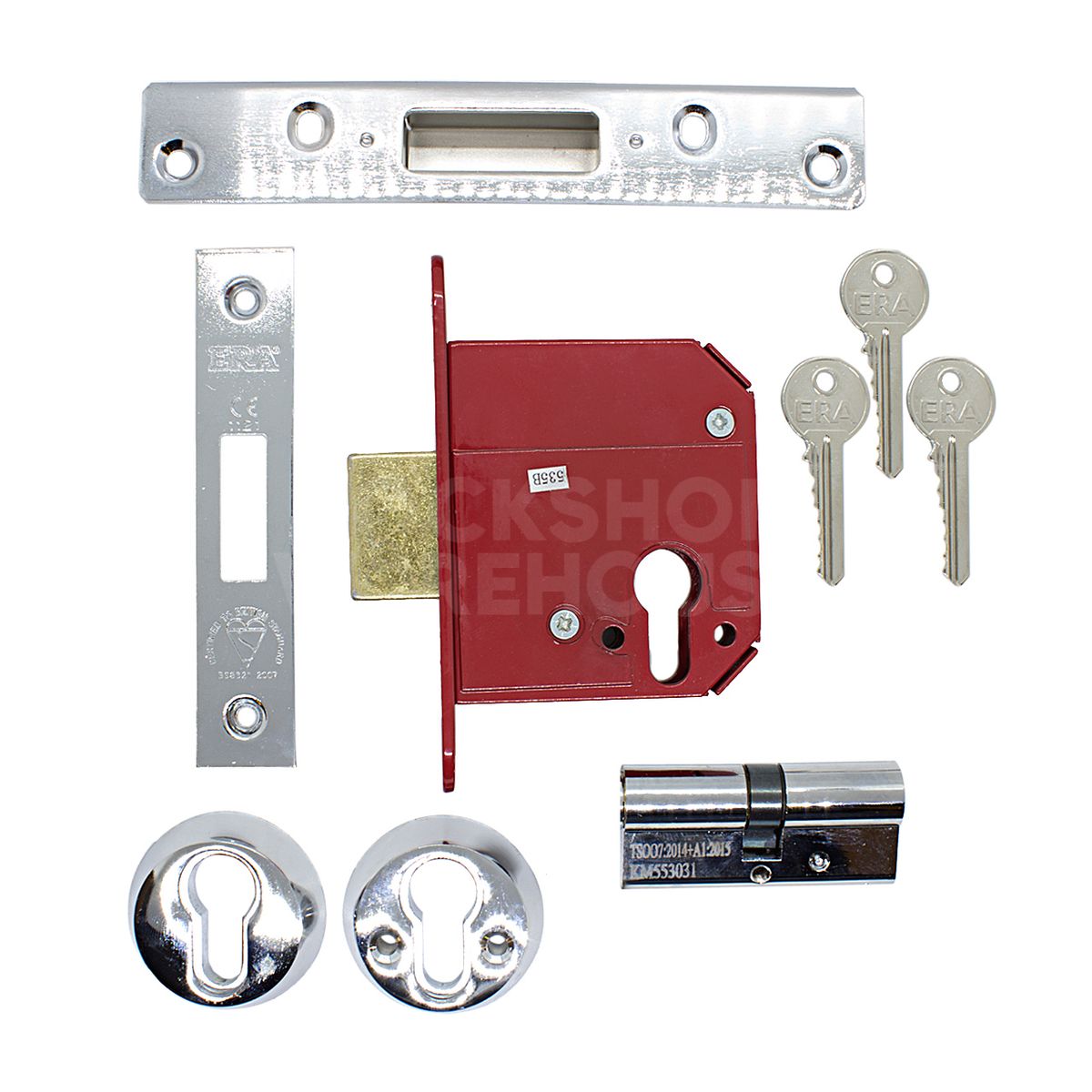

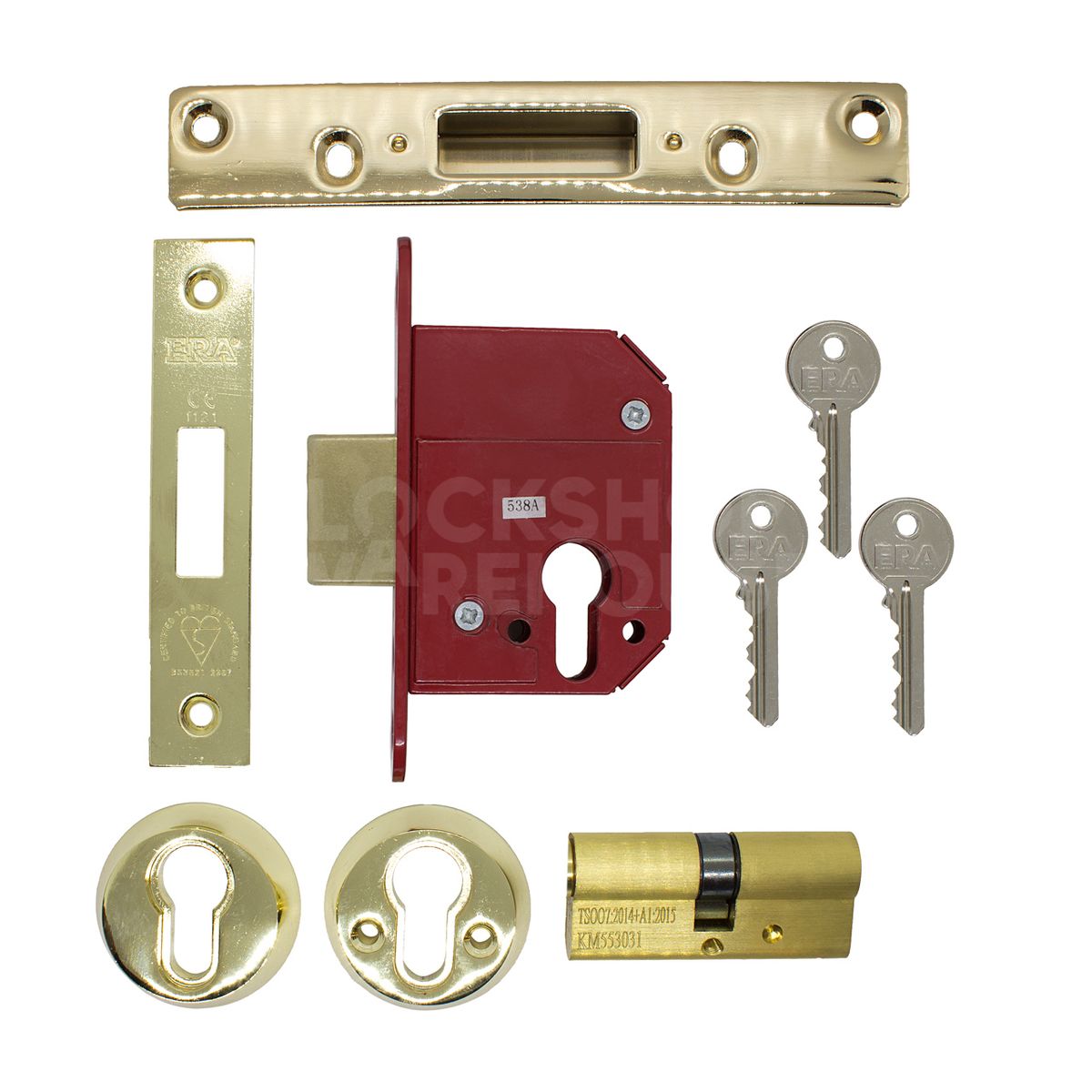

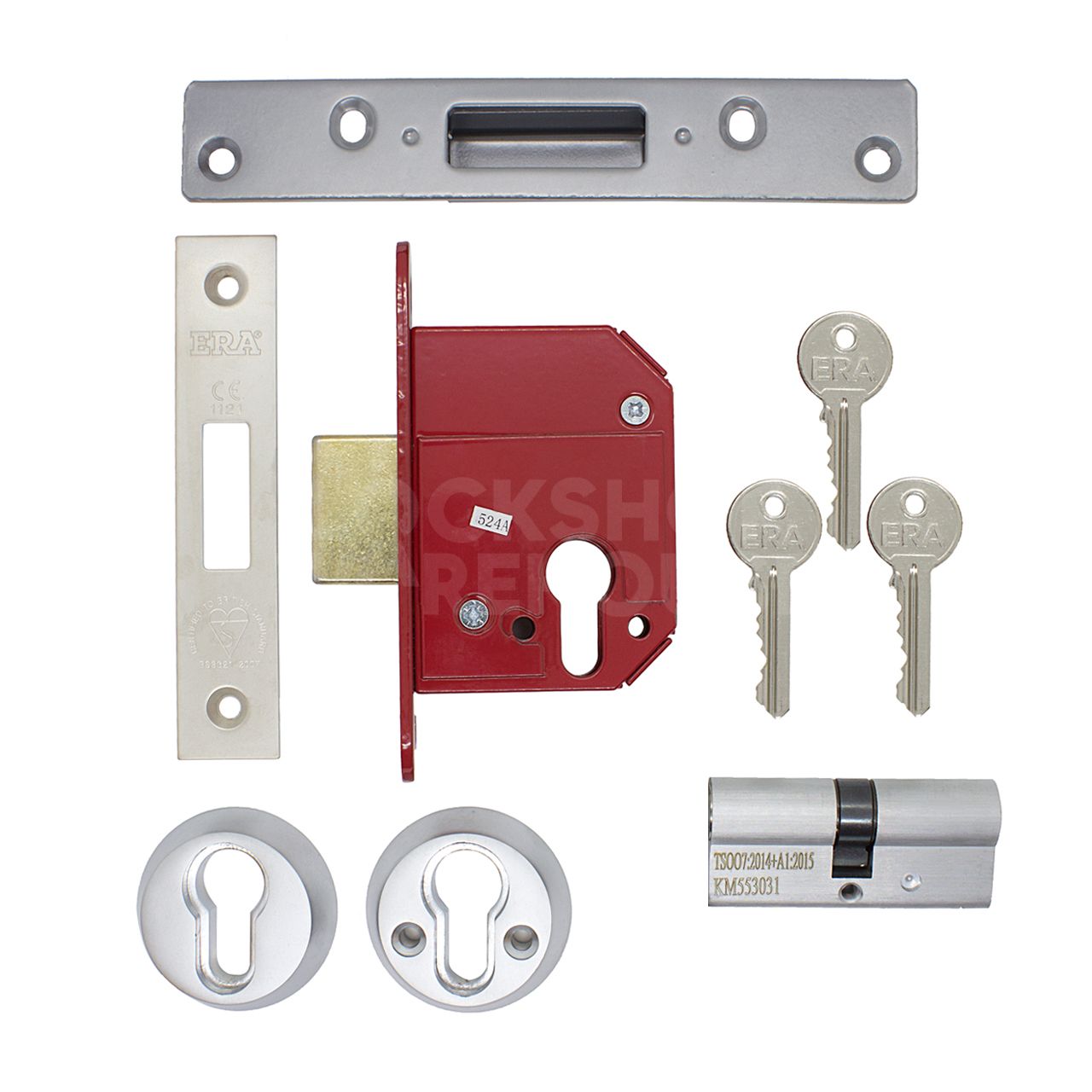

Box Contents

3 keys

strike plate

fixing screws

mortice lock

cylinder screw

security escutcheons

euro cylinder

Certifications

british-standard British Standard - BS8621

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

There are 2 different sizes of lock cases as each lock will give you a different backset. This is the distance from the edge of the lock to the keyhole / spindle for handles. The bigger locks are better for solid wooden doors as they move the keyhole away from the door stop further. If you have a large door stop and fit a 64mm lock case you can find that you hit your knuckles on the door stop when you turn the key. Alternatively the 64mm lock case is better when you have a glass panelled door as you may not have enough wood on the stile to fit the 76mm lock into before you hit and therefore smash the glass. This is very important to check when installing locks to doors with glass in.

No, if the door is a communal entrance/ exit you MUST have a turn on the inside, so a 5 lever key on the inside is not suitable.

There are specific locks we sell called Egress locks that meet both the Insurance and Fire regulations so these are suitable for communal entrance doors.

To meet the fire regulations you need to be able to exit a communal door without the use of a key. If you are using the lock on your personal front door then they are fine but if others use the door you need to look into getting a turn knob internally so you can exit without the use of a key.

With outward opening doors you can not get a BS3621 outward opening nightlatch (see our section for all the options we have available) but if you install a standard security nightlatch you can also fit a BS3621 deadlock to the door which will give you the insurance rated lock required. As the deadlocks are not handed you can use them on any type of wooden door.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes you can, we would need a key back as we dont hold any records of your keys but this is possible. Please get in touch first so we can confirm everything is ok to do and then you can post your key back to us (taped to a piece of card...essential!!)

Yes, this is possible but it is important to make sure you select the same brand and model. The internals and the keys need to match so we can key the locks alike.

We do try to list the products together in our series tab on the product page which should show the suitable products that can be keyed alike together.

If in doubt please ask us and we will let you know.

A rebate set is only required on double rebated doors. If you only have a single door then you will receive all the parts you require with the lock. If you need a rebate set you will need to check the size of your rebate. The most common is 13mm but on older doors they can be 19mm or 25mm.

With the 5 lever locks they are designed to be high security so there are thousands of different keys so the keys do not come with numbers on. Therefore we can not cut additional keys for these locks without a key to copy from. If you post it back to us we can do it for you (please contact us first before you send it) or alternatively nearly all the keys we sell are available from local locksmiths in your area. They maybe more expensive so we would recommend buying the extra keys at the time of purchase so we can cut and try them before we ship the order.

Deadlocks are suitable for either hand and inward and outward opening doors. The locks have keyholes either side and can be used on the left or right hand side of the door.

Yes, the ERA Euro Double Cylinder Mortice Deadlock conforms to British Standard BS 3621:2007. This certification ensures it meets the high-security requirements typically demanded by insurance providers and the Police for external residential doors.

This deadlock features several integrated security measures to prevent forced entry:

  • Hardened steel plates designed to resist drilling attempts.
  • Four hardened steel rollers within the deadbolt to counteract hacksawing.
  • A substantial 20mm bolt throw for enhanced strength and security.

The lock comes complete with a high-security 6-pin Euro Profile cylinder that is specifically designed to be resistant to both picking and drilling. Additionally, the cylinder is protected by heavy-duty bolt-through security roses to prevent it from being tampered with or removed.

Yes, these locks can be keyed alike. This feature allows you to use a single key for multiple doors in your home, providing a convenient "one-key" solution while maintaining high security across all entry points.
