skip to ERA Fortress Mortice SashLock (BS3621:2007)

ERA Fortress Mortice SashLock (BS3621:2007)

£19.08

(£15.90 ex VAT)

sku: ERAFSL

This High Security 5 lever British Standard (BS3621:2007) sashlock has been designed to meet the exacting demands of the insurance companies and the Police. Higher security levels are delivered by a 20mm bolt throw, hardened steel plates to resist drilling, and four hardened steel rollers in the deadbolt to resist hack sawing.

The Fortress Sashlock features a pull and twist action latch which can easily reverse the hand of the lock without the removal of the lock cover or screws. The keys, manufactured of manganese bronze have 1,000 variations for added security. Internally all the steel levers have false notching to resist lock picking.

Mechanism: 5 Lever
Security Level: British Standard - BS3621:2007
Case Size: 67mm or 79mm
Case Finish: Red
Forend Finish: Polished Brass, Satin Chrome, Polished Chrome
Keys Supplied: 2
Differs: 1000
Handling: Reversible

Document Icon product info

Era Fortress BS3621 Range of mortice locks which can be keyed alike together

ERA Fortress Mortice DeadLock (BS3621:2007) £ 17.88
ERA Fortress Mortice SashLock (BS3621:2007) £ 19.08

Finish

Case Size

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

9/10 Security Rating
british-standard British Standard - BS3621

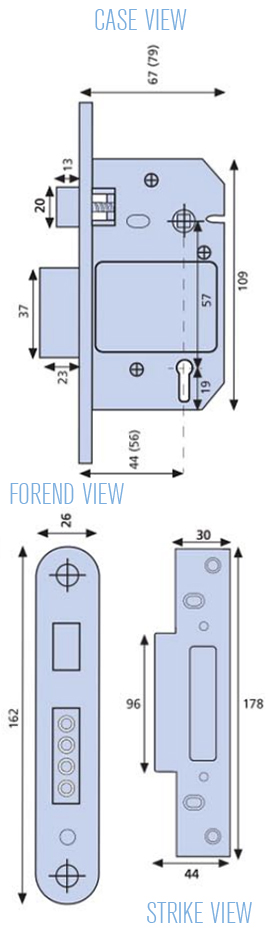

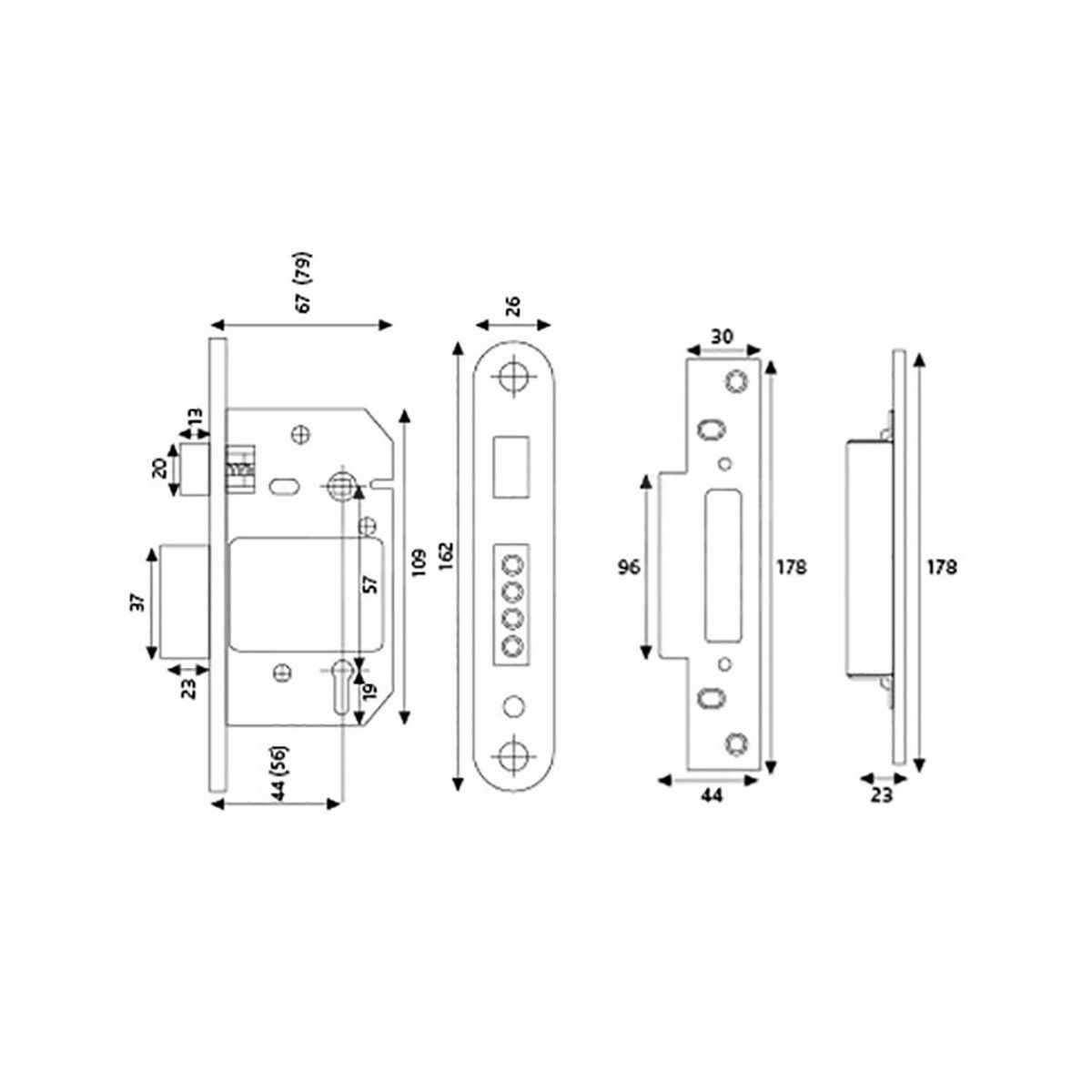

Dimensions Image: ERA Fortress Mortice SashLock (BS3621:2007)
Part Min (mm) Max (mm)
centres 57 -
Backset 44 56
Bolt Length 20 -
Case Width 67 79
Case Height 109 -
Forend Width 26 -
Forend Length 162 -
Strike Plate Width 30 -
Strike Plate Length 178 -

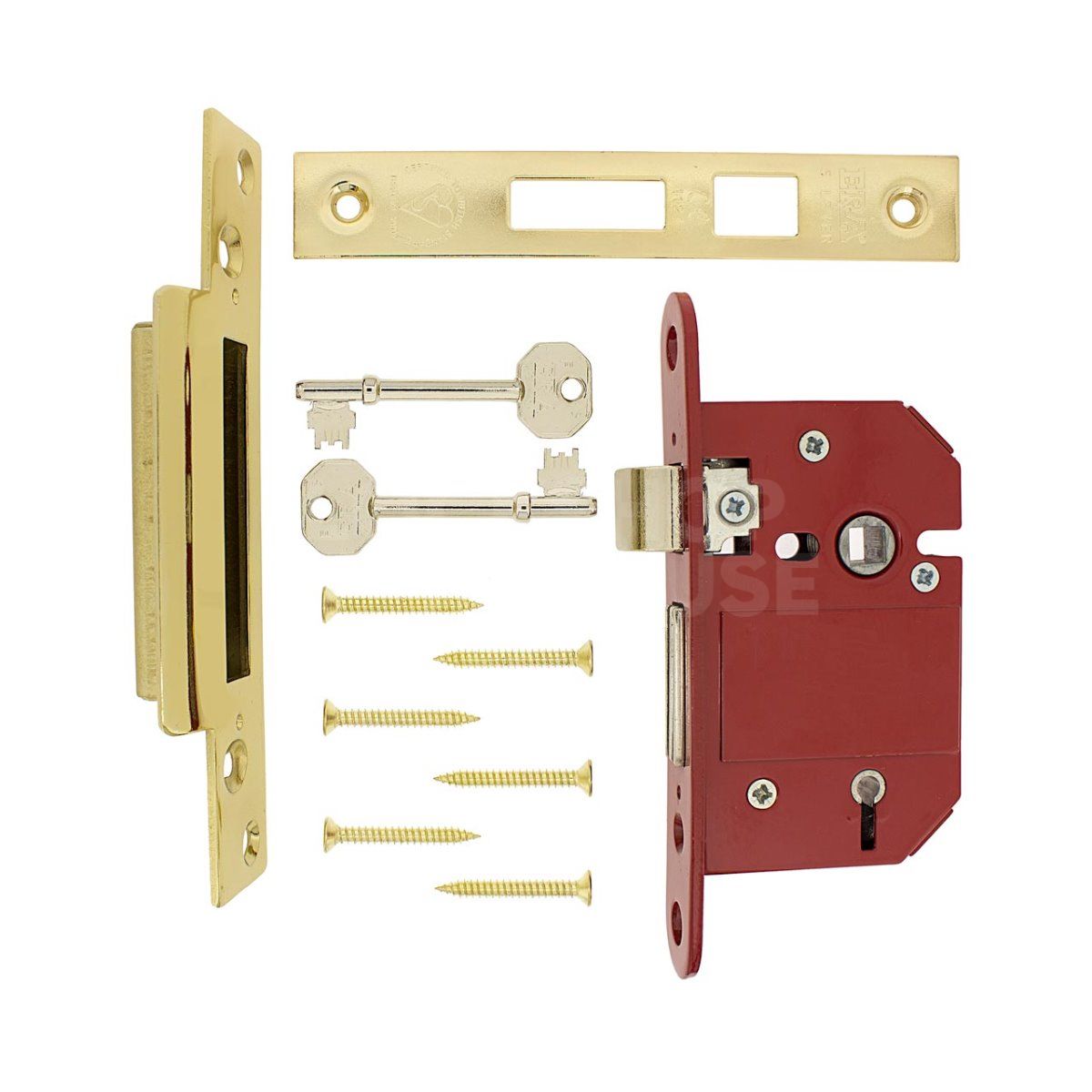

Dimensions Image: ERA Fortress Mortice SashLock (BS3621:2007)

Brand

SKU

ERAFSL

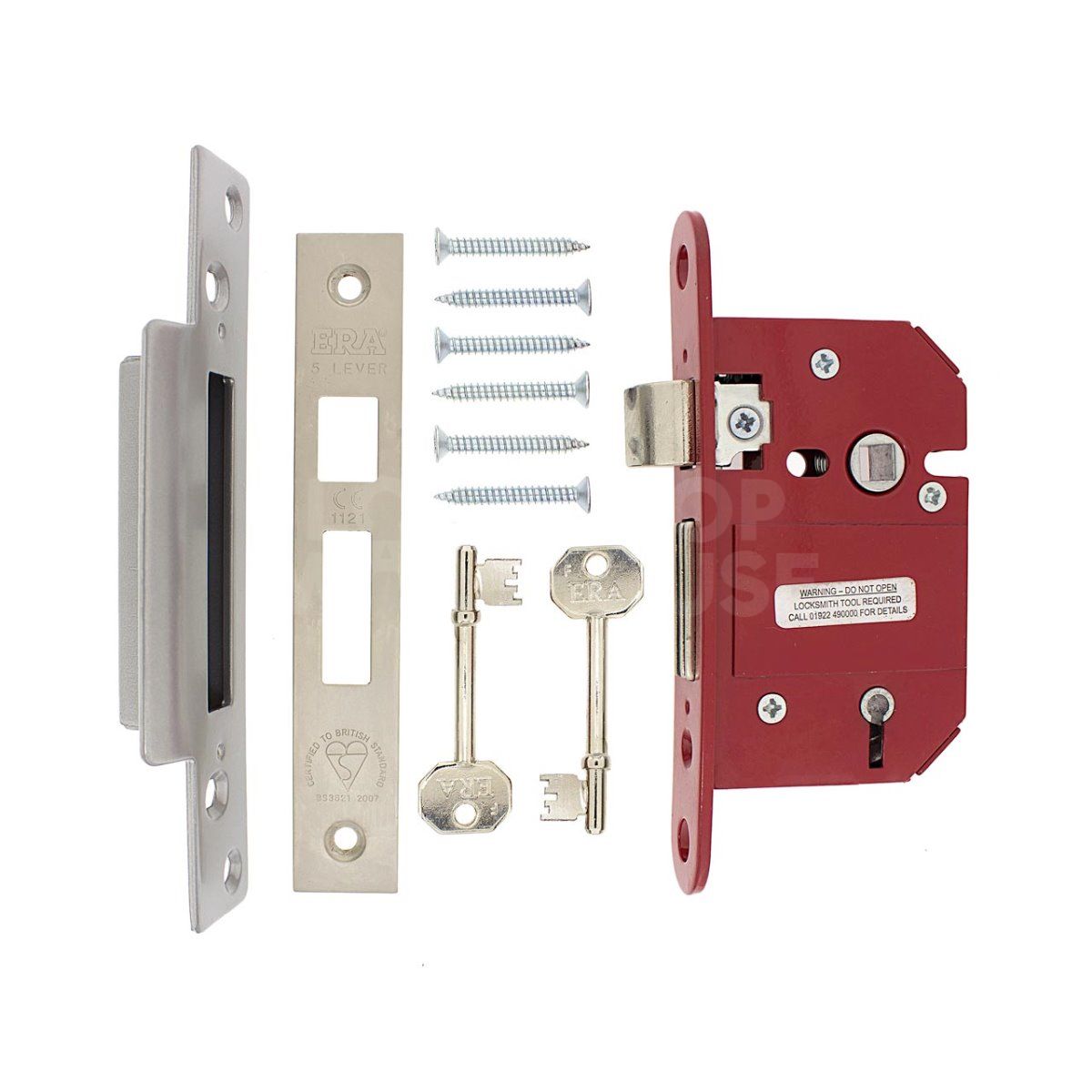

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Certifications

british-standard British Standard - BS3621

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

There are 2 different sizes of lock cases as each lock will give you a different backset. This is the distance from the edge of the lock to the keyhole / spindle for handles. The bigger locks are better for solid wooden doors as they move the keyhole away from the door stop further. If you have a large door stop and fit a 64mm lock case you can find that you hit your knuckles on the door stop when you turn the key. Alternatively the 64mm lock case is better when you have a glass panelled door as you may not have enough wood on the stile to fit the 76mm lock into before you hit and therefore smash the glass. This is very important to check when installing locks to doors with glass in.

No, if the door is a communal entrance/ exit you MUST have a turn on the inside, so a 5 lever key on the inside is not suitable.

There are specific locks we sell called Egress locks that meet both the Insurance and Fire regulations so these are suitable for communal entrance doors.

To meet the fire regulations you need to be able to exit a communal door without the use of a key. If you are using the lock on your personal front door then they are fine but if others use the door you need to look into getting a turn knob internally so you can exit without the use of a key.

With outward opening doors you can not get a BS3621 outward opening nightlatch (see our section for all the options we have available) but if you install a standard security nightlatch you can also fit a BS3621 deadlock to the door which will give you the insurance rated lock required. As the deadlocks are not handed you can use them on any type of wooden door.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes you can, we would need a key back as we dont hold any records of your keys but this is possible. Please get in touch first so we can confirm everything is ok to do and then you can post your key back to us (taped to a piece of card...essential!!)

Yes, this is possible but it is important to make sure you select the same brand and model. The internals and the keys need to match so we can key the locks alike.

We do try to list the products together in our series tab on the product page which should show the suitable products that can be keyed alike together.

If in doubt please ask us and we will let you know.

A rebate set is only required on double rebated doors. If you only have a single door then you will receive all the parts you require with the lock. If you need a rebate set you will need to check the size of your rebate. The most common is 13mm but on older doors they can be 19mm or 25mm.

With the 5 lever locks they are designed to be high security so there are thousands of different keys so the keys do not come with numbers on. Therefore we can not cut additional keys for these locks without a key to copy from. If you post it back to us we can do it for you (please contact us first before you send it) or alternatively nearly all the keys we sell are available from local locksmiths in your area. They maybe more expensive so we would recommend buying the extra keys at the time of purchase so we can cut and try them before we ship the order.

Sashlocks are typically suitable for both left- and right-handed doors, as well as inward- and outward-opening applications. They are designed to be reversible on site, making installation flexible and straightforward.

Depending on the brand and model, latch reversal can be done in one of two ways:

  • Pull and twist the latch bolt to the desired position

  • Remove a retaining screw on the back of the lock case, rotate the latch, then refit the screw

This allows for easy adjustment during installation without the need for specialized tools.

Yes. The ERA Fortress Sashlock is Kitemarked to British Standard BS3621:2007. This certification means it meets the high-security requirements typically specified by insurance companies and the Police for external timber doors.

Yes. The lock features a 'pull and twist' latch mechanism that allows you to reverse the hand of the lock easily. This can be done without removing the lock cover or any screws, making it compatible with both door orientations.

The deadbolt is designed to resist physical attacks using four hardened steel rollers to prevent hacksawing. Additionally, the lock case is protected by hardened steel plates to resist drilling, and the internal levers are false-notched to deter picking.

This lock is available in two case sizes: 67mm and 79mm. When choosing, consider the depth of the mortice required in your door. The 67mm case is generally used for narrower door stiles, while the 79mm provides a deeper backset.
