ERA Multipoint Lock 2 Hook 45/92 Split Spindle

£83.65

(£69.71 ex VAT)

sku: 6945-609-85AA
  • Two outer large hooks
  • Centre latch and deadbolt
  • 45mm backset and 92mm centres
  • Split-spindle arrangement
  • 20mm radius faceplate
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The 6945-609-85AA is a lever-operated ERA strip with two large outer hooks and a centre latch and deadbolt. Its split-spindle case must be matched to the door furniture and spindle arrangement.

Check the complete suffix, strip length, hook positions and case outline when replacing an existing lock. Do not substitute another 6945 or an Invincible version on the strength of matching 45/92 measurements alone.

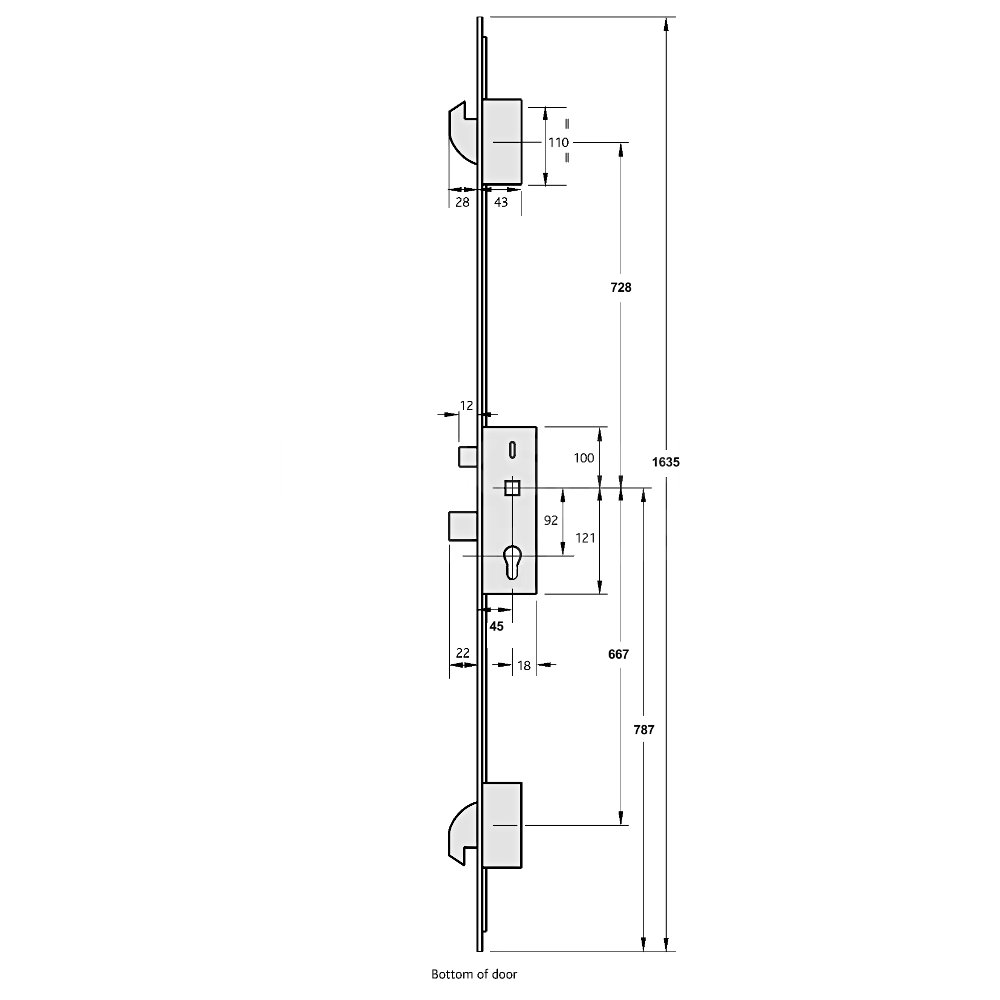

Dimensions Image: ERA Multipoint Lock 2 Hook 45/92 Split Spindle
Part Size (mm)
centres 92
Backset 45
Body Length 1635
Case Width 63
Case Height 220
Locking Point Hooks 2
Faceplate Width 20

FAQs

No. It identifies the backset and handle-to-cylinder centres, not the full strip. Match the complete reference, faceplate, hook positions and centre-case outline.

The outside operation depends on the matching handles and spindle components. Check the required arrangement rather than relying on the split-spindle description alone.

Latch orientation is only part of the match. The complete strip, hook layout, case connections and keeps must also suit the door.

No. Any security rating applies to the specified complete door assembly, not to an arbitrary door fitted with this replacement strip.
