ERA Lever Operated Latch & Deadbolt Split Spindle Centre Case

£25.58

(£21.32 ex VAT)

sku: ERAGB
  • Direct replacement gearbox for ERA multipoint locking systems
  • Choice of 30mm, 35mm, or 45mm backsets with 92mm centres
  • Split spindle design for flexible lever/lever or lever/pad handle configurations
  • 22mm central brass deadbolt throw for superior protection
  • Reversible latch easily adjusts for left or right-handed doors
  • Standard Euro profile lock case compatible with most cylinders

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The ERA Lever Operated Latch & Deadbolt Split Spindle Centre Case is a high-quality replacement gearbox designed for use with existing ERA multipoint locking systems. It offers a cost-effective solution when only the central mechanism requires replacement, avoiding the need for a full lock strip installation.

This versatile unit is available in 30mm, 35mm, or 45mm backsets with standard 92mm centres. The split spindle design makes it suitable for both lever/lever and lever/pad handle applications, providing flexibility for various door security requirements. The central brass deadbolt provides significant security with a 22mm throw, effectively preventing unauthorised entry.

  • Backset Options: 30mm, 35mm, or 45mm
  • Centres: 92mm
  • Case Height: 220mm
  • Security: 22mm deadbolt throw
  • Versatility: Suitable for lever/lever or lever/pad handles

Handing: The latch is fully reversible. Simply remove the screws, take the latch out, flip it to the opposite hand, and refit the screws. Operation: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.

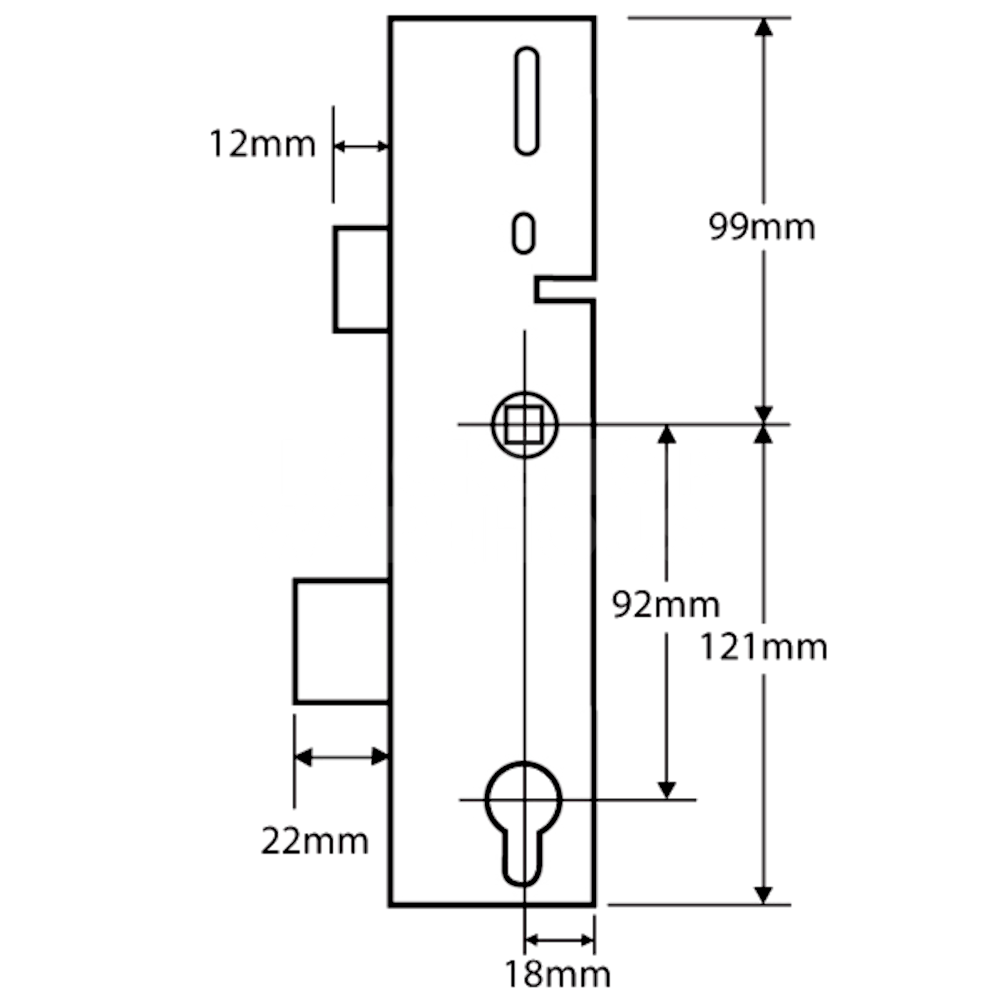

Dimensions Image: ERA Lever Operated Latch & Deadbolt Split Spindle Centre Case
Part Min (mm) Max (mm)
centres 92 -
Backset 30 45
Case Width 45 60
Case Height 220 -

FAQs

Yes. The latch is fully reversible, allowing it to work with either door orientation. To change the handing, simply remove the screws, flip the latch to the required side, and refit the screws.

No. This centre case is designed as a direct replacement gearbox for ERA multipoint locking systems. It provides a cost-effective solution for when only the central mechanism has failed, saving you from having to install a complete new lock strip.

Yes. Because this gearbox features a split spindle design, it is versatile enough to support both standard lever/lever handles and lever/pad configurations, depending on your security requirements.

To identify the correct version for your door, measure the distance from the front of the lock faceplate to the centre of the spindle (the square hole where the handle goes). This product is available in three common sizes:

  • 30mm
  • 35mm
  • 45mm
