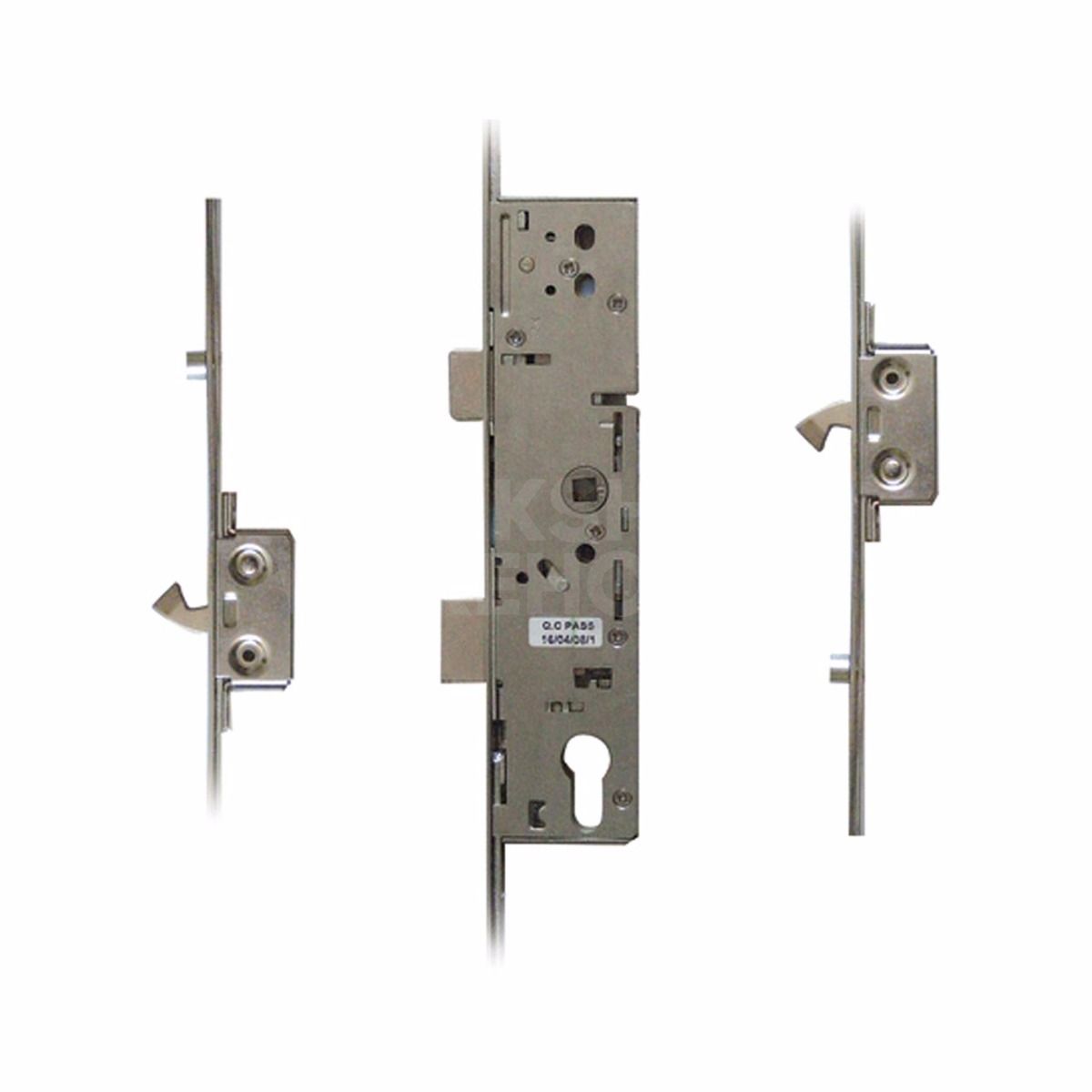

Gallery Image: ERA 2 Hooks and 2 Rollers: UPVC Multi-Point Locking Mechanism

ERA 2 Hooks and 2 Rollers: UPVC Multi-Point Locking Mechanism

£68.71

(£57.26 ex VAT)

The high security MPL locking system is designed to meet the requirements of Secured by Design (Police approved specification) and has passed the latest PAS23 and PAS24 testing criteria.

Features

  • A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock
  • 16mm Faceplate
  • Secured by Design (SBD licence held by ERA Home Security Limited)
  • Split Spindle for lever/pad applications
  • Bi-directional throw of locking feature - enhanced anti-jemmy feature
  • Snib facility as standard on all locks
  • Central brass deadbolt throws 22mm to prevent unauthorised entry
  • Non-handed lock mechanism with reversible sash bolt

Operation:
Locking: Lift Lever to engage locking mechanisms and then one full turn of the cylinder to lock.

Unlocking:
One full turn of the cylinder and then push down the handles to release the locking mechanisms

Spindle Split
Operation A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Brand ERA
Backset 35mm
Case Height 220mm
Centres 92mm
Centre Case Latch & Deadbolt
Case Width 50mm
Weight 2.3Kg
Locking Point Distance D 710mm
Locking Point Distance C 710mm
Locking Point Distance B 615mm
Locking Point Distance A 615mm
Locking Point Roller 2
Locking Point Hooks 2
Faceplate Width 16mm

Please note these Multipoint locks do not come with any strike plates or fixing screws. The strike plates can be ordered but please contact us if required.

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
Secured By Design Icon
8/10 Security Rating
PAS24 Standard (UKAS Tested)

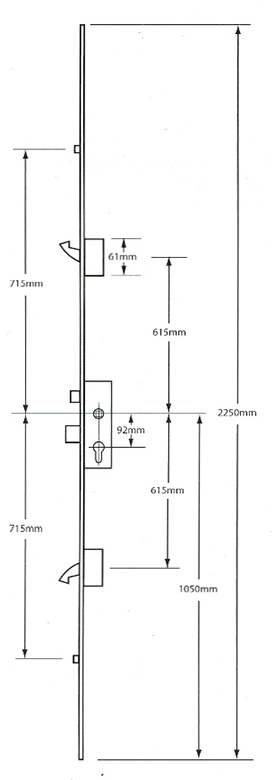

Dimensions

Toggle Icon

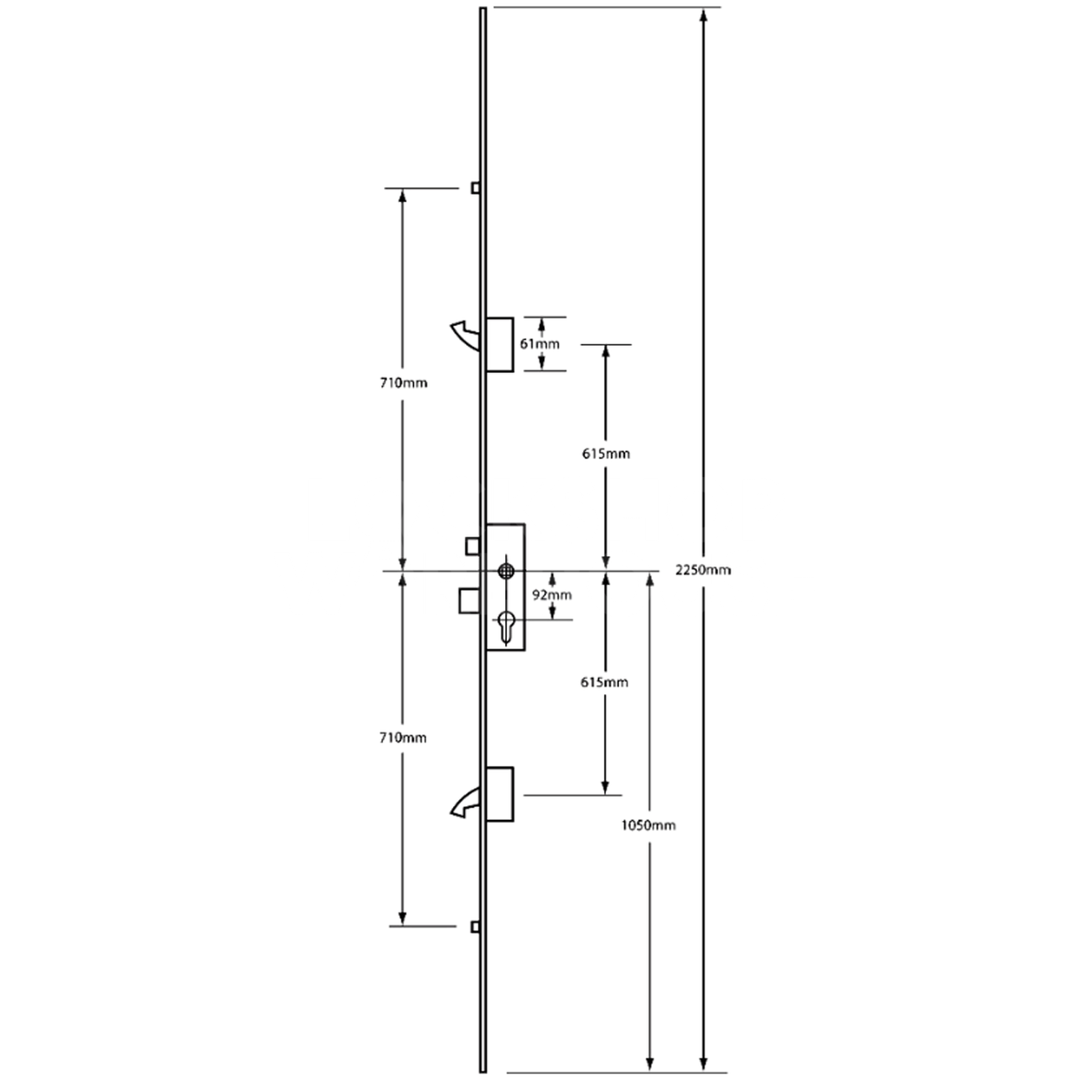

Dimensions Image: ERA 2 Hooks and 2 Rollers: UPVC Multi-Point Locking Mechanism
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 220

Technical Specifications

Toggle Icon

Brand

ERA

SKU

L15438

Box Contents

Euro Profile Lock Case

Latch & Deadbolt

2 x Hooks

2 x Rollers

Certifications

PAS24 Standard (UKAS Tested)
