ERA Multipoint Lock with 2 Hooks and Split Spindle Gearbox

£49.10

(£40.92 ex VAT)

sku: 6335-047-85ZA
  • Two outer small hooks
  • Centre latch and deadbolt
  • Split-spindle centre case
  • 16mm radius faceplate
  • Euro-profile cylinder supplied separately
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

PAS 24:2012
Latch & Deadbolt

The 6335-047-85ZA uses two small outer hooks with a central latch and deadbolt. It has a radius-ended 16mm faceplate and a split-spindle arrangement.

Match the complete -047 reference and locking-point layout to the existing unit. A standard-length 6335 strip is not established as a substitute merely by sharing the same backset and centres.

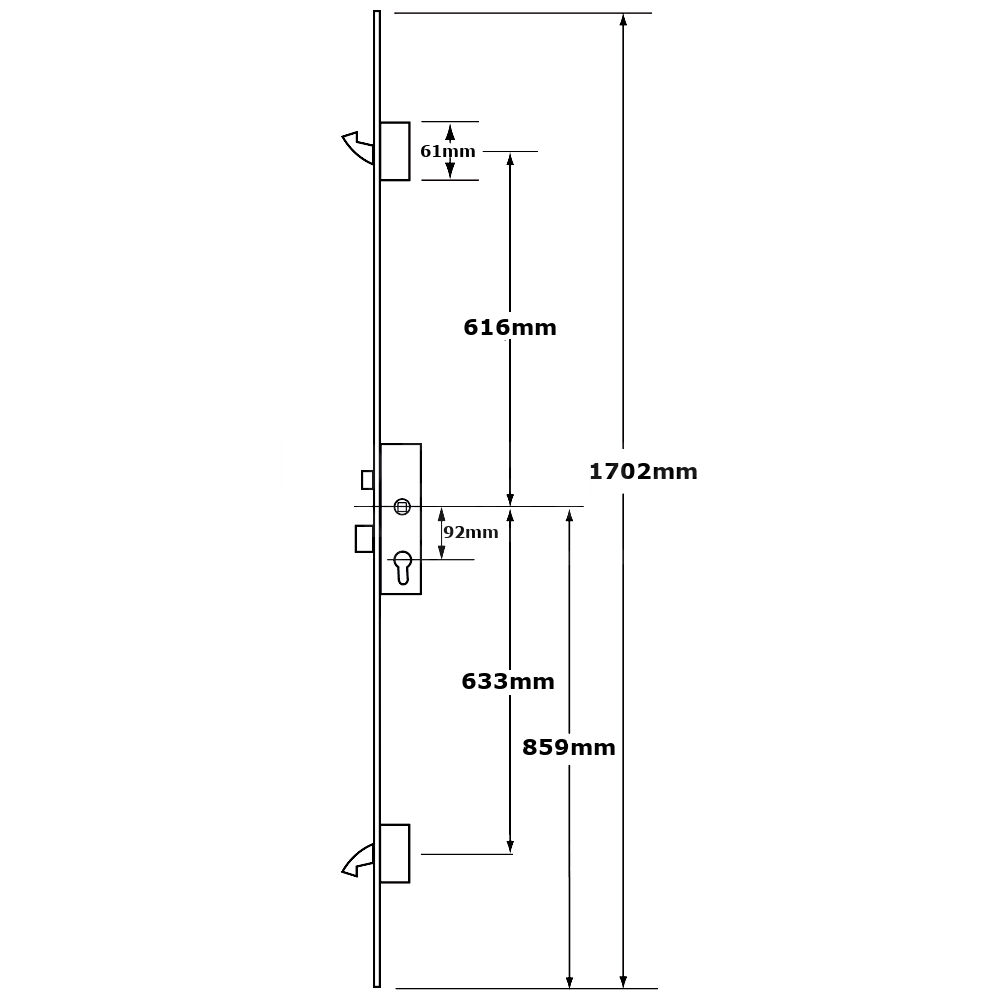

Dimensions Image: ERA Multipoint Lock with 2 Hooks and Split Spindle Gearbox
Part Size (mm)
centres 92
Backset 35
Body Length 1702
Case Width 53
Case Height 220
Locking Point Hooks 2
Faceplate Width 16

Brand

SKU

6335-047-85ZA

Certifications

tick PAS 24:2012

FAQs

Use furniture and spindle components matched to the case and required operation. Check fixing positions as well as the 92mm centres.

No. The complete strip, hook positions, case connections and keeps must also match the door.

No. It is a lever-operated multipoint lock, not an automatic-locking replacement. Use the handle and key to secure the mechanism.

Match the full 6335-047-85ZA reference, radius faceplate and complete hook layout. Do not select by the 6335 prefix alone.
