skip to ERA Retro Fit Trickle Vent Internal & External Set 5000

ERA Retro Fit Trickle Vent Internal & External Set 5000

£13.25

(£11.04 ex VAT)

sku: ERA-0344
  • Set includes an internal ventilator, external canopy and fixing clips that automatically centre the vent
  • Suitable for most applications with rout heights of 10mm to 13mm and rout lengths under 430mm
  • Documented equivalent area is 4000mm2 with 10mm routing and 5000mm2 with 13mm routing, using the manufacturer's routing arrangement
  • Dimensions: 454mm wide by 18.5mm high; canopy extends 25mm
  • 1-year guarantee
Document Icon ERA 5000 trickle vent: specifications and routing

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

1 Year Guarantee

Finish options include White, Brown, Golden Oak and Anthracite Grey, plus a White internal and Anthracite Grey external option.

The manufacturer reports water-penetration resistance using method 1A to BS EN 13141-1: 600Pa with 13mm routing and 900Pa with 10mm routing. Equivalent area and water resistance depend on the specified routing arrangement. Airborne sound insulation was tested to BS EN ISO 10140-1:2016 and BS EN ISO 10140-2; consult the stored sheet for the test conditions.

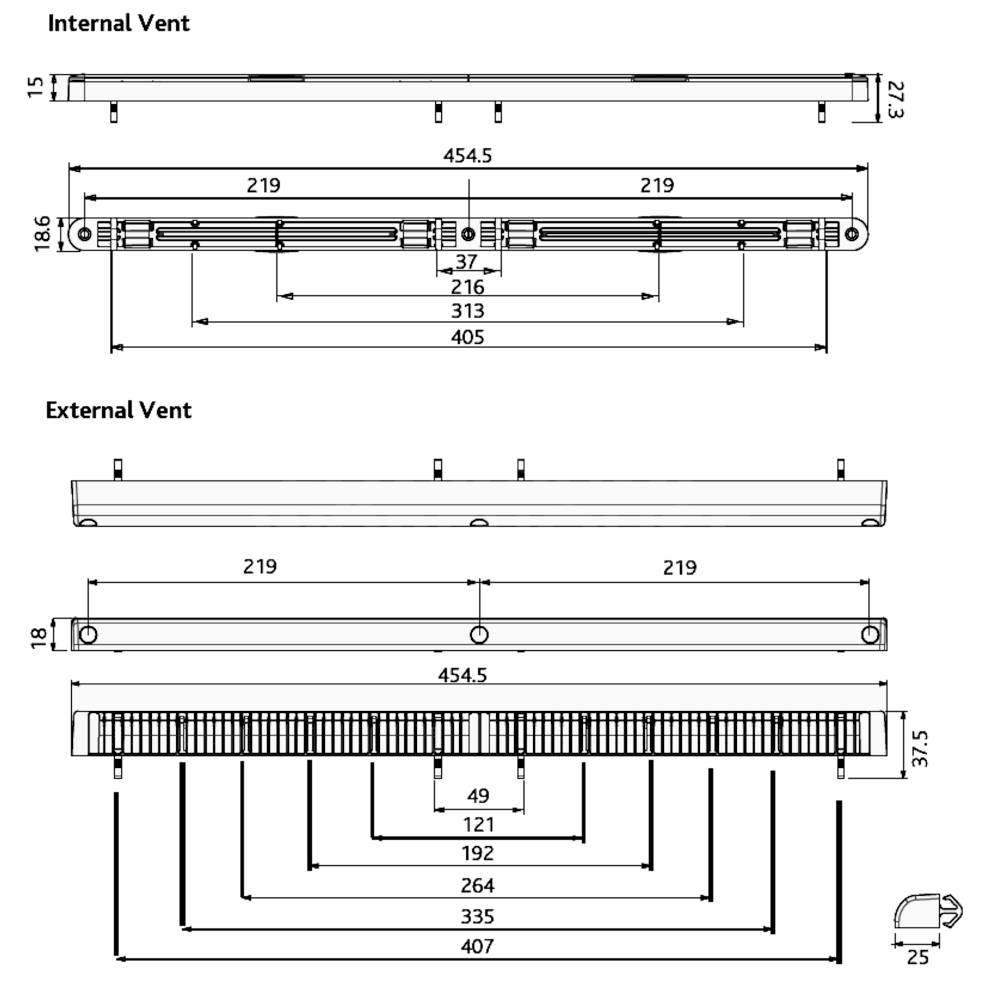

Dimensions Image: ERA Retro Fit Trickle Vent Internal & External Set 5000
Part Size (mm)
width 454
Height 18.5
