ERA Saracen 35/92 Split Spindle Multipoint Centre Case

£28.57

(£23.81 ex VAT)

sku: 35-603STD
  • Compatible with ERA Saracen multipoint locking systems
  • Standard 35mm backset with 92mm centres
  • Split spindle supports lever/lever and lever/pad handles
  • Reversible latch for left or right-handed doors
  • Narrow deadbolt design for secure locking
  • Direct replacement for failed gearboxes
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The ERA Saracen 35/92 Centre Case is an ideal replacement part for ERA multipoint locking systems. Featuring a 35mm backset and 92mm centres, this gearbox is specifically designed to restore the function of your door lock without the need for a full replacement strip.

Constructed for durability and versatility, this unit features a split spindle, allowing it to work seamlessly with both lever/lever and lever/pad handle setups. The thin deadbolt and reversible latch provide secure and flexible installation options for various door types.

  • Backset: 35mm
  • Centres: 92mm
  • Case Height: 220mm
  • Case Width: 50mm
  • Spindle Type: Split
  • Profile: Euro Profile

Operation is straightforward: lift the lever to engage the locks and turn the cylinder to secure. To open, simply reverse the process. The latch is fully reversible, making it compatible with both left and right-handed door openings.

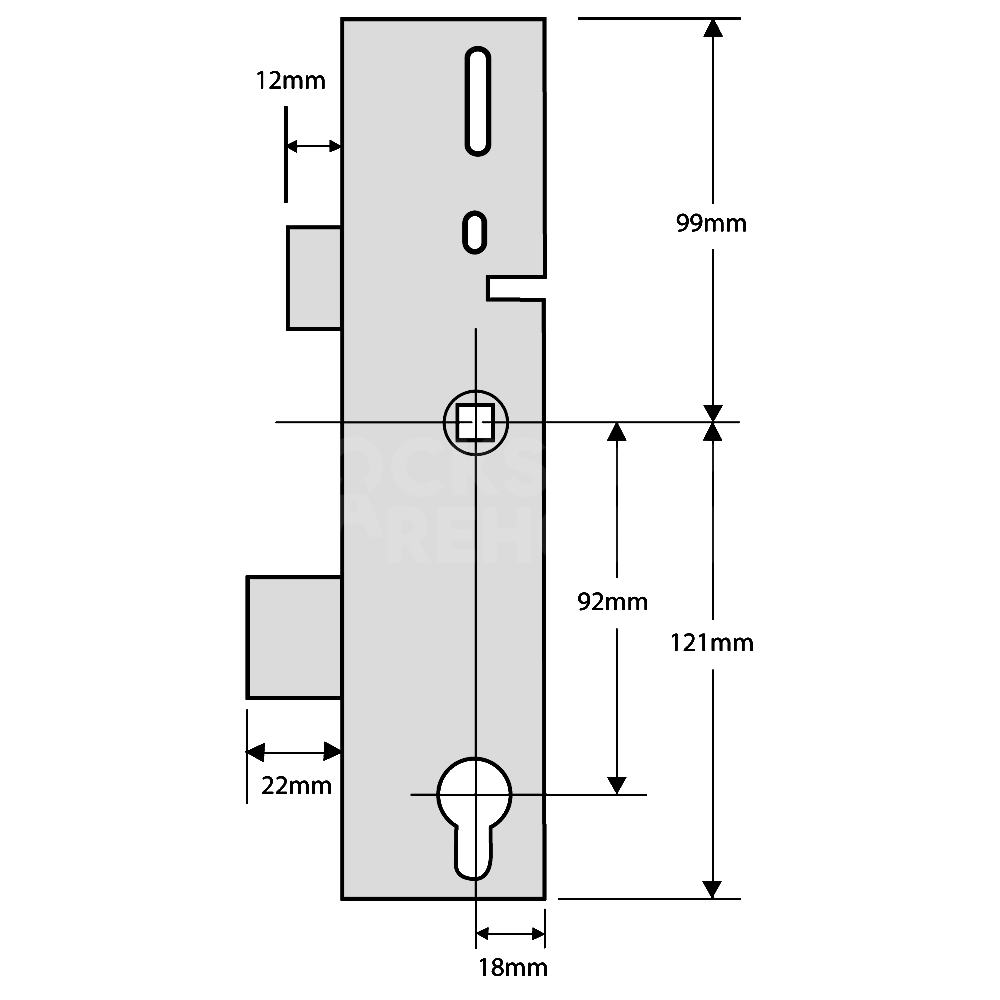

Dimensions Image: ERA Saracen 35/92 Split Spindle Multipoint Centre Case
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 220

FAQs

Yes, this centre case features a fully reversible latch, allowing it to be easily adjusted to suit both left and right-handed door openings during installation.

Yes. The split spindle design ensures this gearbox is compatible with both standard lever/lever handles and lever/pad configurations, where the external handle operates independently of the internal one.

To confirm compatibility, verify the following measurements on your existing gearbox:

  • Backset: 35mm (measured from the front of the faceplate to the centre of the handle spindle).
  • Centres (PZ): 92mm (measured from the centre of the spindle to the centre of the circular part of the key hole).
  • Case Dimensions: The unit should measure approximately 220mm in height and 50mm in width.

No, this centre case is specifically designed as a direct replacement for the internal mechanism. If your existing metal strip is in good condition, you can simply replace the gearbox, which is a more cost-effective way to fix a failed lock.
