ERA Trimlock Lever Operated 2 Hook Multipoint Lock

£104.66

(£87.22 ex VAT)

sku: 6945-301-ZA-01
  • 44mm white aluminium trim
  • Two outer hooks and a centre latch and deadbolt
  • 45mm backset with 92mm centres
  • Split-spindle arrangement
  • For suitable unsprung handles and a Euro-profile cylinder
Document Icon ERA Trimlock: manufacturer nominal layout and ordering guide
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This white ERA Trimlock combines a two-hook multipoint lock with a 44mm aluminium trim. It is the 45mm-backset, 92mm-centre version identified by reference 6945-301-ZA-01.

Match the trim, hook positions and keeps to the door system. The manufacturer's specified security setup requires a suitable 2-star handle or guard; the lock alone does not establish a rating for the finished door.

The stored manufacturer sheet shows nominal layouts and ordering references. Compare the actual supplied revision and existing preparation before machining; it is not a measurement of the delivered lock or a certificate for the complete door.

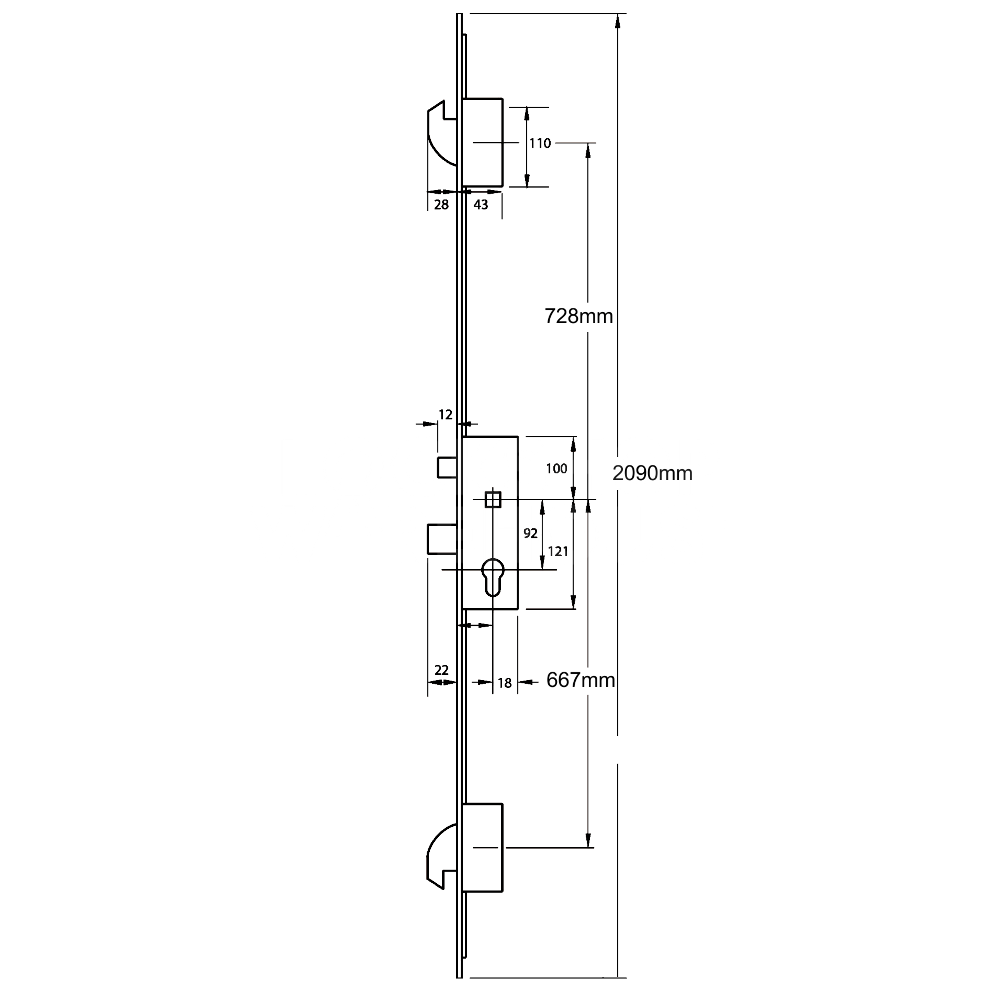

Dimensions Image: ERA Trimlock Lever Operated 2 Hook Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Bolt Length 22
Case Width 63
Case Height 221
Locking Point Hooks 2
Faceplate Width 44

FAQs

It is the width of the white aluminium Trimlock trim. This is not the same profile as a standard narrow ERA faceplate.

No. Match the complete trim, hook layout, centre case and frame keeps to the existing door system as well as checking the latch orientation.

ERA specifies suitable unsprung handles with 92mm centres. The split-spindle arrangement also needs the correct spindle components. Follow the manufacturer's requirement for a 2-star handle or guard in the specified security setup.

The two hooks engage the matching frame keeps. Their positions and the keep profile must match the installation; they are not a remedy for an incorrectly aligned door.
