ERA Vectis Hookbolt & Slave Centre Case Set - 35/95 Keyed Alike

£78.85

(£65.71 ex VAT)

sku: GEARBOX-35-96SLAVE
  • 35mm backset with 95mm centres for standard UPVC French doors
  • Keyed alike set includes both master hookbolt and slave units
  • Mortice key operation eliminates risks of cylinder snapping or extraction
  • High corrosion resistance meeting BS EN 1670:2007 Grade 4 standards
  • Split spindle functionality supports lever/lever or lever/pad handle sets
  • Supplied with 3 traditional mortice keys for convenient suiting
Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Hookbolt With Separate Deadbolt Slave Unit

The ERA Vectis Hookbolt and Slave Centre Case Set is a high-security locking solution specifically designed for French doors. This keyed alike set includes a master 35mm backset hookbolt gearbox and a matching 35mm backset slave gearbox for the passive leaf, both featuring 95mm centres. By utilizing a traditional mortice key mechanism, the Vectis system removes the need for a Euro profile cylinder, effectively protecting the door against common attack methods such as cylinder snapping, plug extraction, and manipulation.

The slave unit is engineered to drive security shootbolts into the frame, ensuring optimum compression and stability at both the top and bottom of the door. Built for durability and long-term performance, this system has been endurance tested to 50,000 cycles and complies with BS EN 1670:2007 Grade 4 for superior corrosion resistance (240 hours salt spray).

  • Split Spindle Design: Compatible with both lever/lever and lever/pad handles for versatile operation.
  • Reversible Latch: Simple screw adjustment allows for easy handing on both left and right-handed doors.
  • Keyed Alike: Both units operate with the same key for simplified user access.
  • Complete Set: Includes three mortice keys and is suitable for suiting with the ERA Viscount range.

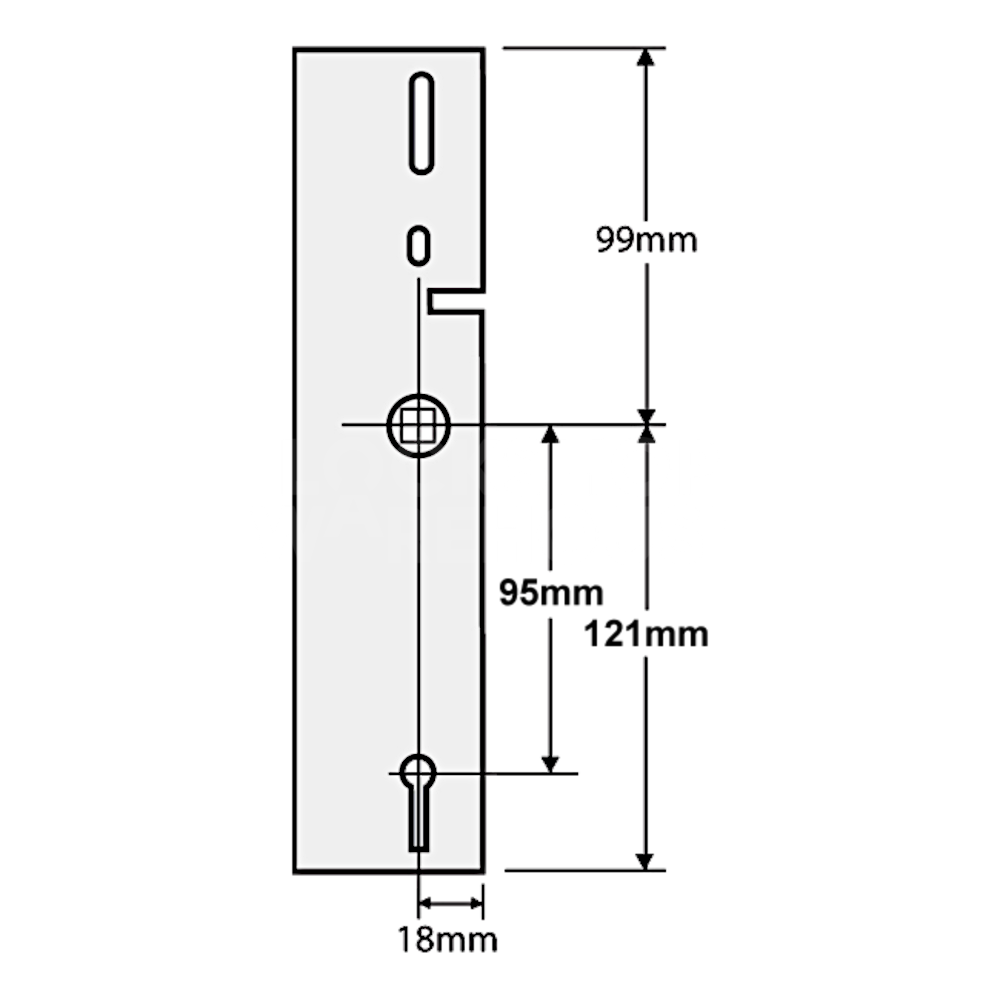

Dimensions Image: ERA Vectis Hookbolt & Slave Centre Case Set - 35/95 Keyed Alike
Part Size (mm)
centres 95
Backset 35
Case Width 50
Case Height 220

FAQs

The Vectis system utilizes a traditional mortice key mechanism instead of a Euro profile cylinder. This design eliminates the risk of common attack methods like cylinder snapping, plug extraction, and lock bumping, offering enhanced security for UPVC French doors.

Yes, this is a comprehensive keyed-alike set that includes both a master hookbolt gearbox for the primary door and a slave unit for the passive leaf. Both units are operated by the same key, and the set comes supplied with three mortice keys.

This set is designed with a 35mm backset and 95mm centres. Thanks to the split spindle functionality, it is compatible with both lever/lever and lever/pad handle configurations, provided they match these specific measurements.

Yes. The master gearbox features a reversible latch that can be easily adjusted with a screw to suit either left-hand or right-hand opening doors, ensuring compatibility with standard French door setups.
