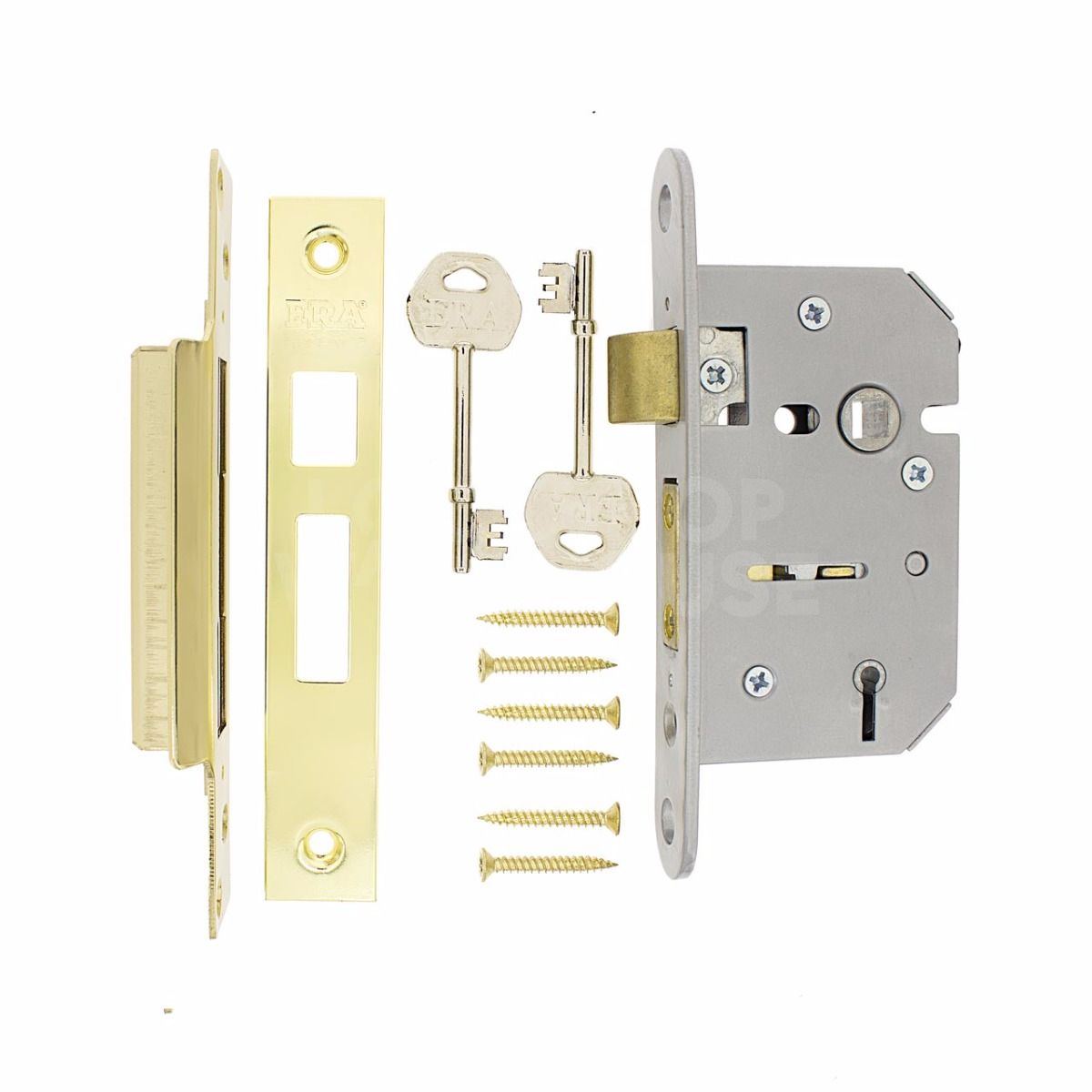

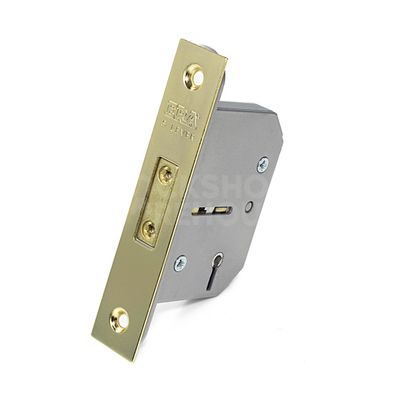

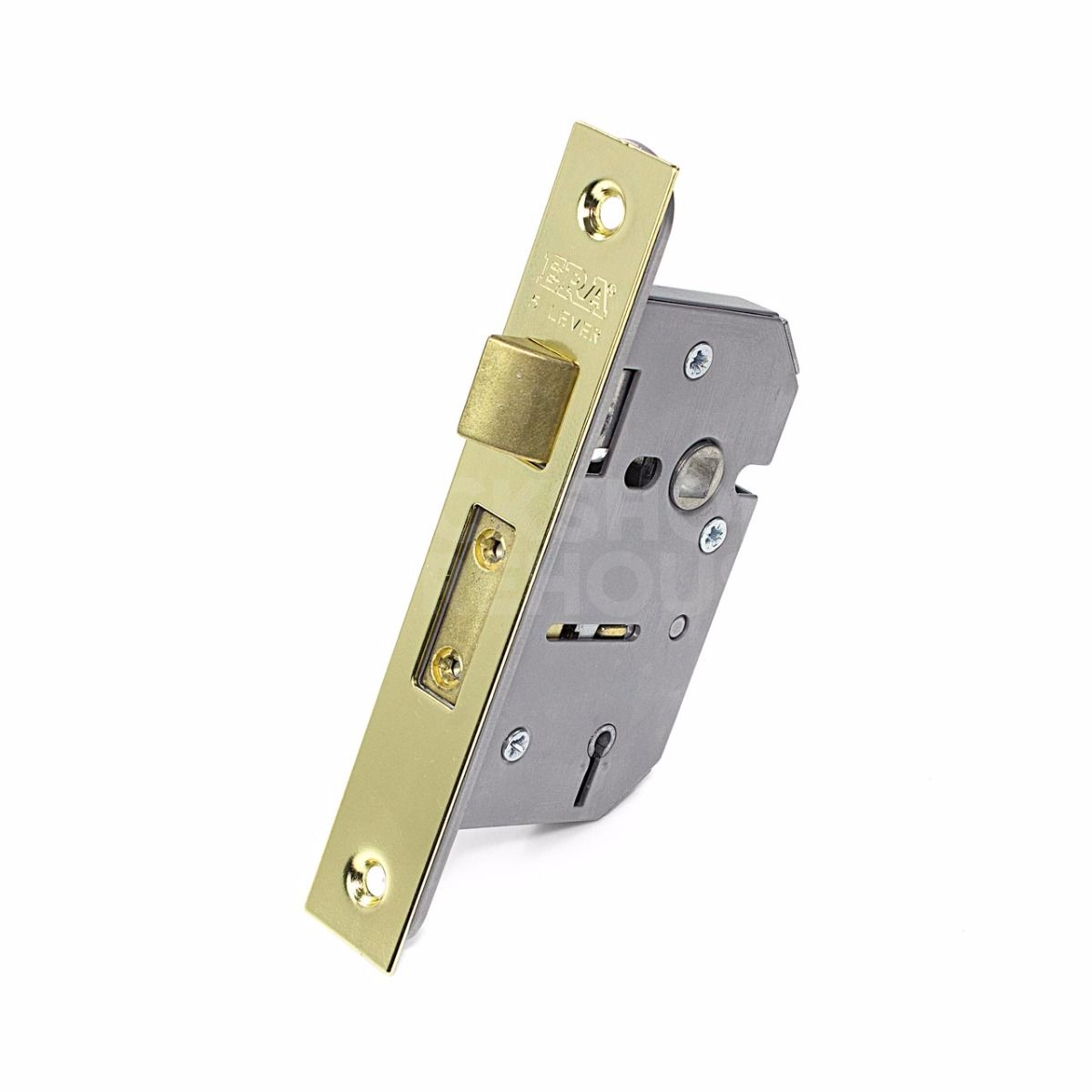

ERA Viscount Sashlock

£21.59

(£17.99 ex VAT)

The ERA 5 Lever Viscount range of door locks are suitable to replace existing 2 and 3 lever door locks. Ideal for the volume user, the Viscount offers long service in demanding situations and is the right choice for replacement or new build projects. The Viscount is also available as a rebated lock, suitable for rebated French doors. Numbered keys are available in addition to the 500 key variations. The latch is easily reversed and hardened steel rollers in the bolt resist hack sawing.

Mechanism: 5 Lever
Case Size: 64mm & 76mm
Case Finish: Grey
Forend Finish: Polished Brass
Keys Supplied: 2
Differs: 500+
Handling: Reversible

Era Viscount Range of mortice locks which can be keyed alike together

Key Configuration

Size

Finish

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
6/10 Security Rating
key-pinned Key Profile: Standard

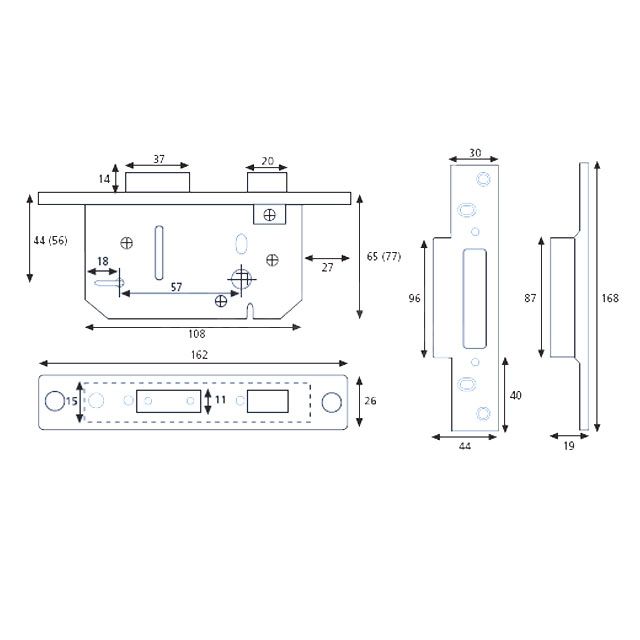

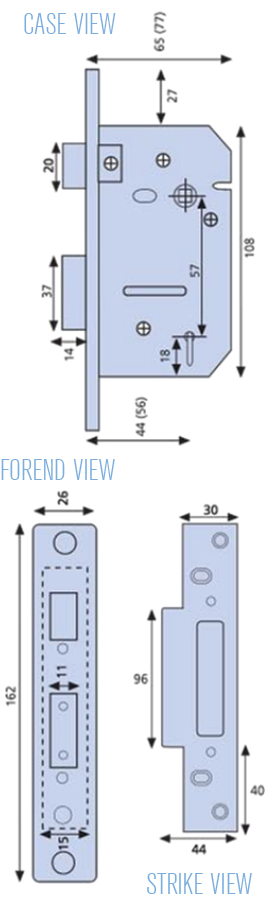

Dimensions

Toggle Icon
Dimensions Image: ERA Viscount Sashlock
Part Min (mm) Max (mm)
centres 57 -
Backset 44 56
Bolt Length 14 -
Case Width 64 76
Case Height 109 -
Forend Width 25 -
Forend Length 162 -
Strike Plate Width 30 -
Strike Plate Length 176 -

Technical Specifications

Toggle Icon
Dimensions Image: ERA Viscount Sashlock

Brand

ERA

SKU

ERA-VIS-S

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard

Reviews

Toggle Icon
skip to ERA 5 Lever Mortice Locks Extra Key
Gallery Image: ERA 5 Lever Mortice Locks Extra Key

ERA 5 Lever Mortice Locks Extra Key

£3.60

(£3.00 ex VAT)

All our extra keys are cut keys to the specific lock you have purchased. We do not supply the uncut blanks unless requested

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Reviews

Toggle Icon
skip to ERA Rebate for Viscount Sashlock Finish Polished Brass
Gallery Image: ERA Rebate for Viscount Sashlock Finish Polished Brass
Gallery Image: ERA Rebate for Viscount Sashlock Finish Polished Brass
Gallery Image: ERA Rebate for Viscount Sashlock Finish Polished Brass
Gallery Image: ERA Rebate for Viscount Sashlock Finish Polished Brass

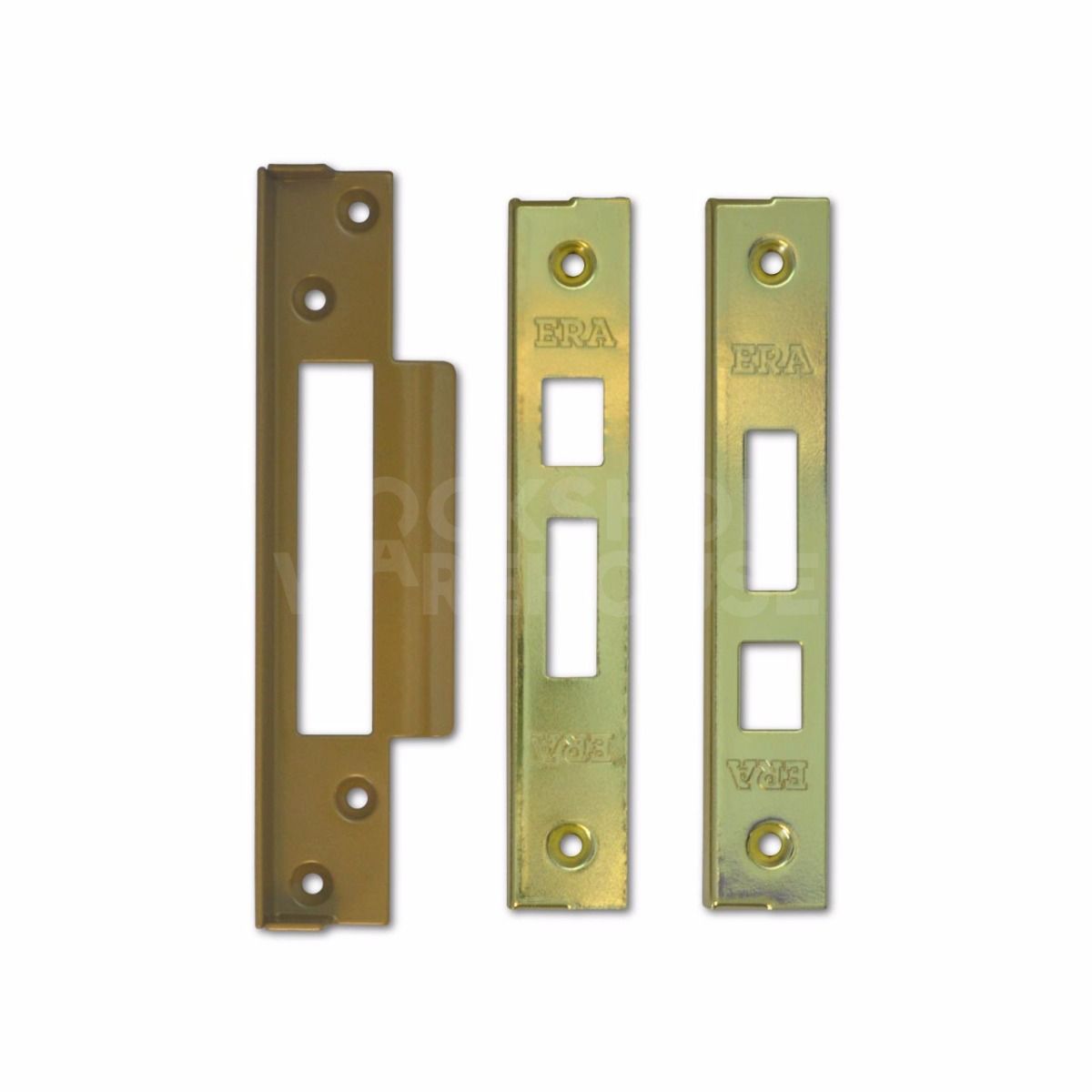

ERA Rebate for Viscount Sashlock Finish Polished Brass

£17.99

(£14.99 ex VAT)

Rebate for ERA 436 and 437 Viscount Sashlocks. Available in polished brass or satin chrome, 13mm or 25mm.

NOTE Special order so please allow approx 5 days for delivery.

Rebate sets are only needed for double rebated doors, these are not the plates you require if you have a single door these are included with every mortice lock.

Size

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Reviews

Toggle Icon
skip to ERA Intumescent Kit To Suit ERA Fortress BS Sashlock

ERA Intumescent Kit To Suit ERA Fortress BS Sashlock

£8.39

(£6.99 ex VAT)

This ERA Intumescent Kit is designed to suit the ERA Fortress BS Sashlock Manufactured from interdens, it can be cut down to size and features zero pressure foam expansion. It has been tested to BS476 Part 22: 1987 & BS EN 1634-1: 2014 and is both 30 and 60 minute rated. The semi rigid interdens with a self-adhesive backing ensure easy application. Features Easy application 30 & 60 minute fire rated Tested to BS476 Part 22: 1987 & BS EN 1634-1: 2014 Zero pressure foam expansion Manufactured from interdens Intumescent kit to suit the ERA Fortress BS Sashlock

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
