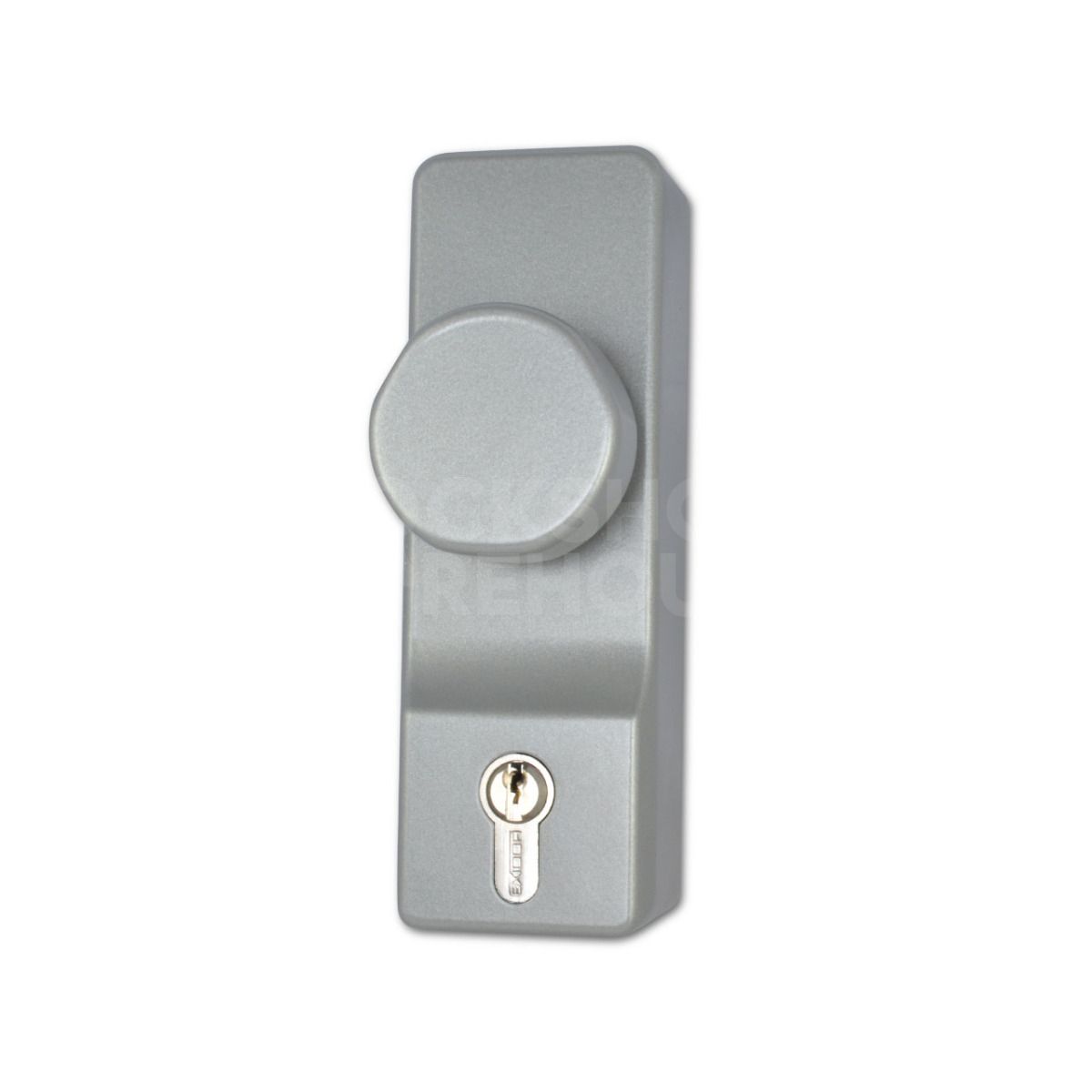

Exidor 302 Knob Operated Outside Access Device

£119.99

(£99.99 ex VAT)

sku: L11569
  • Compatible with Exidor 200 and 300 series panic bolts and latches
  • Provided with a 40mm euro profile cylinder for secure external access
  • Features a free-swinging knob mechanism when locked to prevent forced entry damage
  • Certified for use on both timber and metal fire doors
  • Non-handed design enables installation on both left and right-handed doors
  • Surface-mounted installation using concealed fixings for enhanced security
  • Suitable for door thicknesses up to 45mm as standard
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

7/10 Security Rating
fire Certifire

The Exidor 302 Knob Operated Outside Access Device provides a secure method of entering a building from the outside through doors fitted with Exidor 200 and 300 series panic bolts or latches. It is designed to work in conjunction with emergency exit hardware, allowing keyed access without compromising the safety function of the internal device.

The unit features a clutching mechanism that allows the knob to rotate freely when the device is locked. This functional design helps prevent damage to the internal panic hardware during attempted forced entry, such as pulling or prying. The device is surface-mounted to the external face of the door and secured using concealed machine screws for increased security and a clean finish.

Suitable for both timber and metal doors, the Exidor 302 is fully reversible, making it compatible with both left and right-handed door configurations. It is CE marked and Certifire approved, ensuring suitability for use on fire-rated doors in various commercial and public environments.

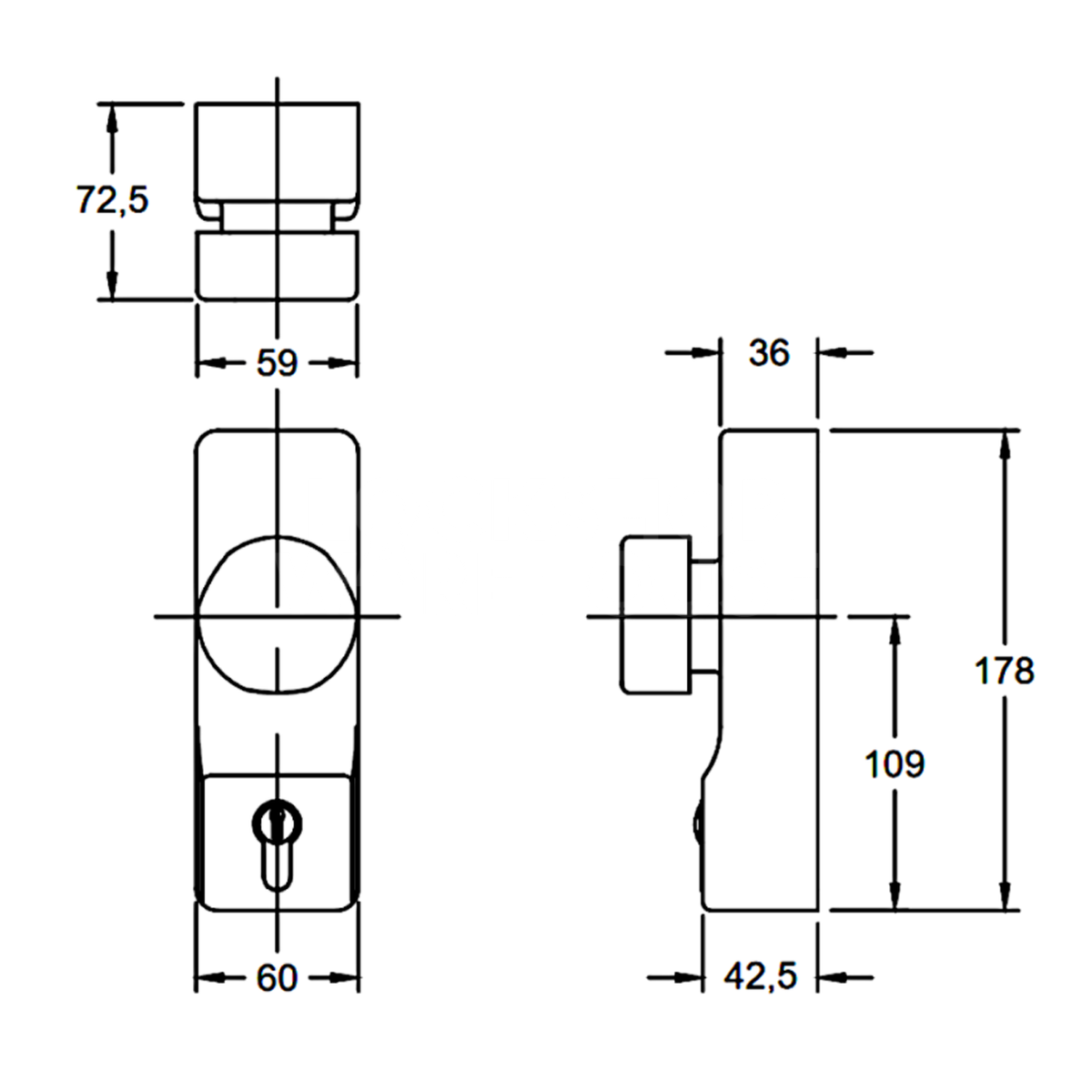

Dimensions Image: Exidor 302 Knob Operated Outside Access Device
Part Size (mm)
width 60
Height 178
Depth 70

Brand

SKU

L11569

Box Contents

euro cylinder

Fixing Kit

3 keys

Knob

Fire Rating

Certifire

FAQs

The Exidor 302 is designed specifically for use with the Exidor 200 and 300 series of emergency exit bolts and latches, providing a secure external access solution.

When the device is locked, the internal mechanism disengages. This allows the knob to rotate freely without engaging the latch, which protects the unit against forced entry attempts such as pulling or prying.

Yes, the Exidor 302 is fire rated and Certifire approved for use on both timber and steel doors. It is also CE marked to ensure it meets relevant safety standards.

Yes, this unit is non-handed and fully reversible. It can be installed on both left and right-handed doors, offering flexibility during the installation process.
