EXIDOR 525 Euro Lever Operated UPVC Door Exit Device

£155.99

(£129.99 ex VAT)

sku: EXD500
  • Compatible with Exidor 500 series panic bolts and latches
  • Supplied with a 45mm half euro profile cylinder and three keys
  • Surface mounted design with concealed machine screw fixings for security
  • Reversible handing suitable for both left and right-handed doors
  • Lever handle meets BS 8300 dimensional requirements for accessibility
  • CE marked for safety and compliance with building regulations
  • Accommodates door thicknesses up to 62mm as standard

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

7/10 Security Rating

The Exidor 525 is a lever-operated outside access device designed specifically for integration with the Exidor 500 series range of panic bolts and emergency latches. It provides a secure means of entry from the external face of a door while ensuring the emergency exit functionality remains fully operational from the interior. This unit is an essential component for timber, metal, or UPVC doors where keyed external access is required for authorised personnel.

Functionally, the device employs a lever handle to retract the internal panic hardware once the cylinder is unlocked. The lever design is compliant with BS 8300, ensuring it meets accessibility standards for ease of operation. Each unit is supplied as standard with a 45mm half euro profile cylinder and three keys, though the cylinder can be exchanged to suit existing master key systems if required.

Typical applications include commercial buildings, schools, and hospitals where controlled entry is necessary alongside fire safety compliance. The device is surface mounted and secured using concealed fixings to prevent external tampering. It is fully reversible, making it a versatile choice for both new installations and as a replacement part for existing Exidor systems.

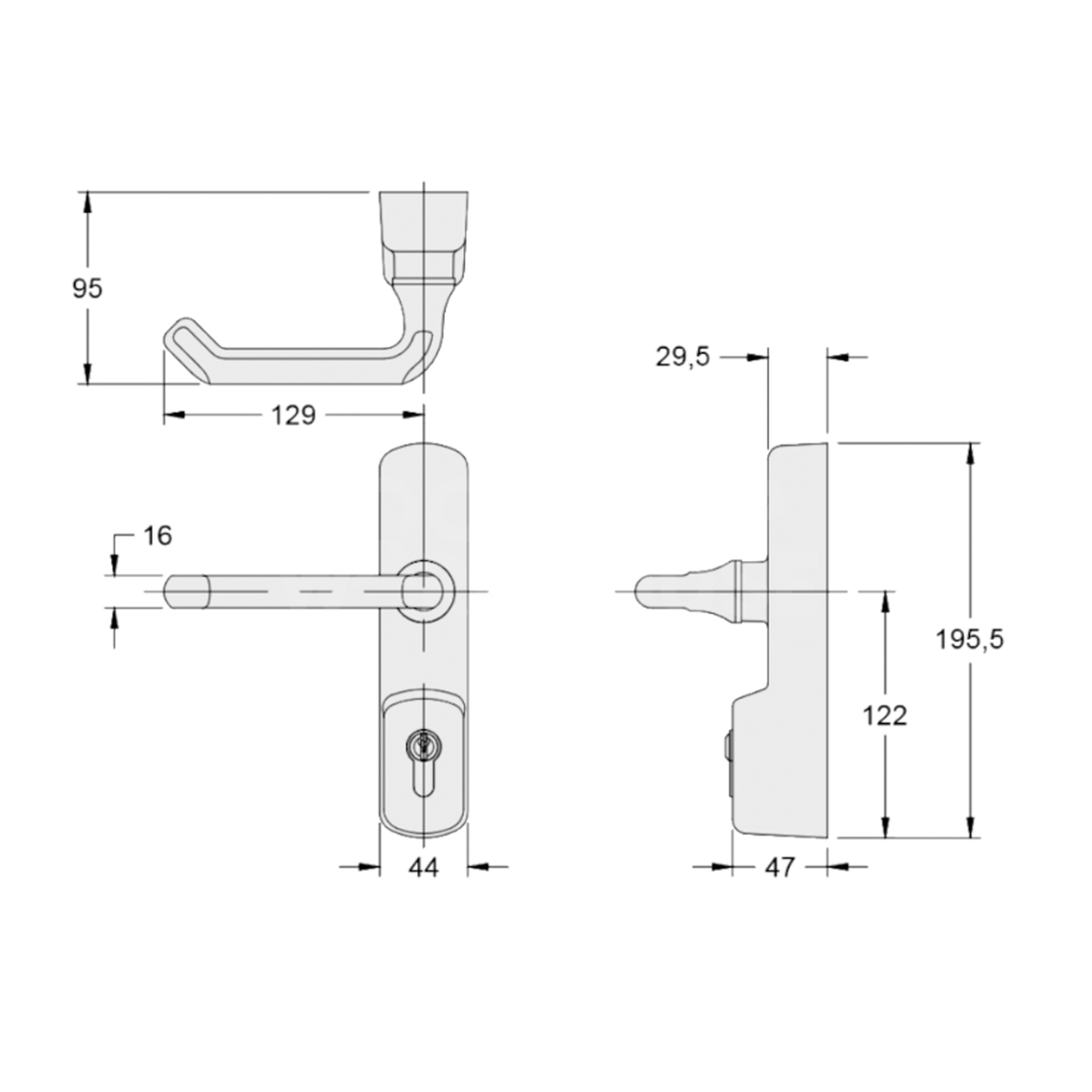

Dimensions Image: EXIDOR 525 Euro Lever Operated UPVC Door Exit Device
Part Size (mm)
Depth 95
Body Width 44
Body Height 196
Body Length 47

Brand

SKU

EXD500

Box Contents

euro cylinder

3 keys

Fixing Kit

Handle

FAQs

The Exidor 525 is specifically designed for use with the Exidor 500 series range of bolts and latches. It is an outside access device that allows authorised entry from the external side of an emergency exit door.

Yes, this model is supplied complete with a 45mm half euro profile cylinder and 3 keys. It provides a ready-to-install solution for secure external access.

Yes, the device is fully reversible, meaning it can be installed on either left or right-handed doors. Additionally, the lever handle meets the dimensional requirements of BS8300, making it suitable for buildings where accessibility is a priority.

The Exidor 525 is supplied as standard to suit doors up to 62mm thick. It is surface mounted on the outside of the door using concealed machine screws for a clean and secure finish.
