Fab & Fix Kensington Slam Shut 92PZ Lever/Pull Furniture

£48.84

(£40.70 ex VAT)

sku: FABAN-0039
  • External D-ring pull with internal lever
  • 92mm PZ centres
  • Non-handed design
  • Die-cast zinc handle and backplate
  • Nominal250 x 35mm backplate
  • 215mm top-to-bottom fixing centres with an intermediate fixing position

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Kensington slam-shut set combines an external D-ring pull with an internal lever returned by a spring cassette. The outside pull is not an operating lever; access and latch operation depend on the fitted lock.

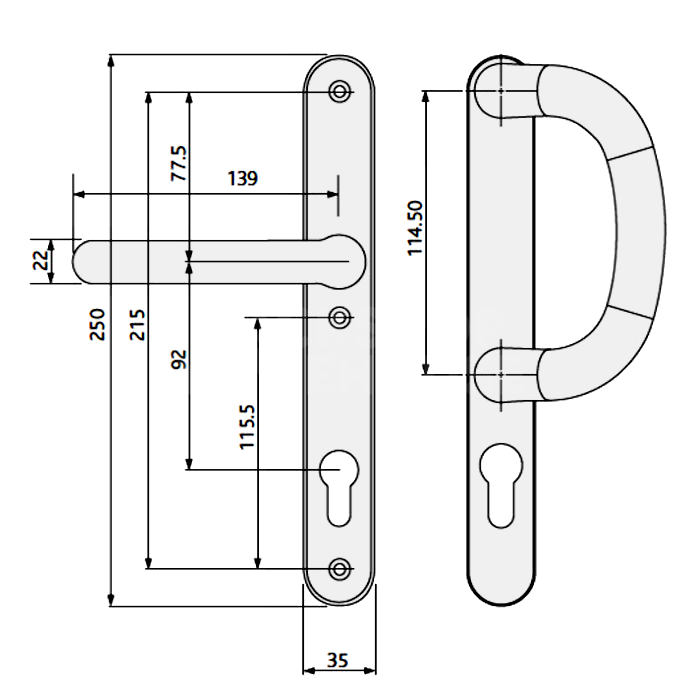

The original drawing gives a nominal 250 x 35mm backplate and 215mm between the top and bottom fixing centres, with a third fixing position between them. Check the complete pattern and cylinder clearance, not just the PZ or overall screw spacing.

A matching M6 screw and 8mm spindle pack is required separately.

Dimensions Image: Fab & Fix Kensington Slam Shut 92PZ Lever/Pull Furniture
Part Size (mm)
centres 92
