Ferco 2 Roller Lever Operated Latch Only Multipoint Lock

£66.00

(£55.00 ex VAT)

sku: A-02792-22-0-1
  • Latch-only centre case; no central deadbolt
  • Two roller locking points
  • 35mm backset and 70mm centres
  • 7mm single spindle layout and Euro profile cylinder case
  • 16mm faceplate; match the original case, roller positions, keeps and furniture
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch Only

The Ferco A-02792-22-0-1 has a latch-only centre case and two rollers. This configuration has a 35mm backset, 70mm centres, a 7mm single spindle layout and a 16mm faceplate.

For replacement, compare the exact reference, case dimensions, roller positions, fixing points, keeps and furniture with the existing lock. A different Ferco roller-lock layout is not interchangeable merely because its backset and centres match.

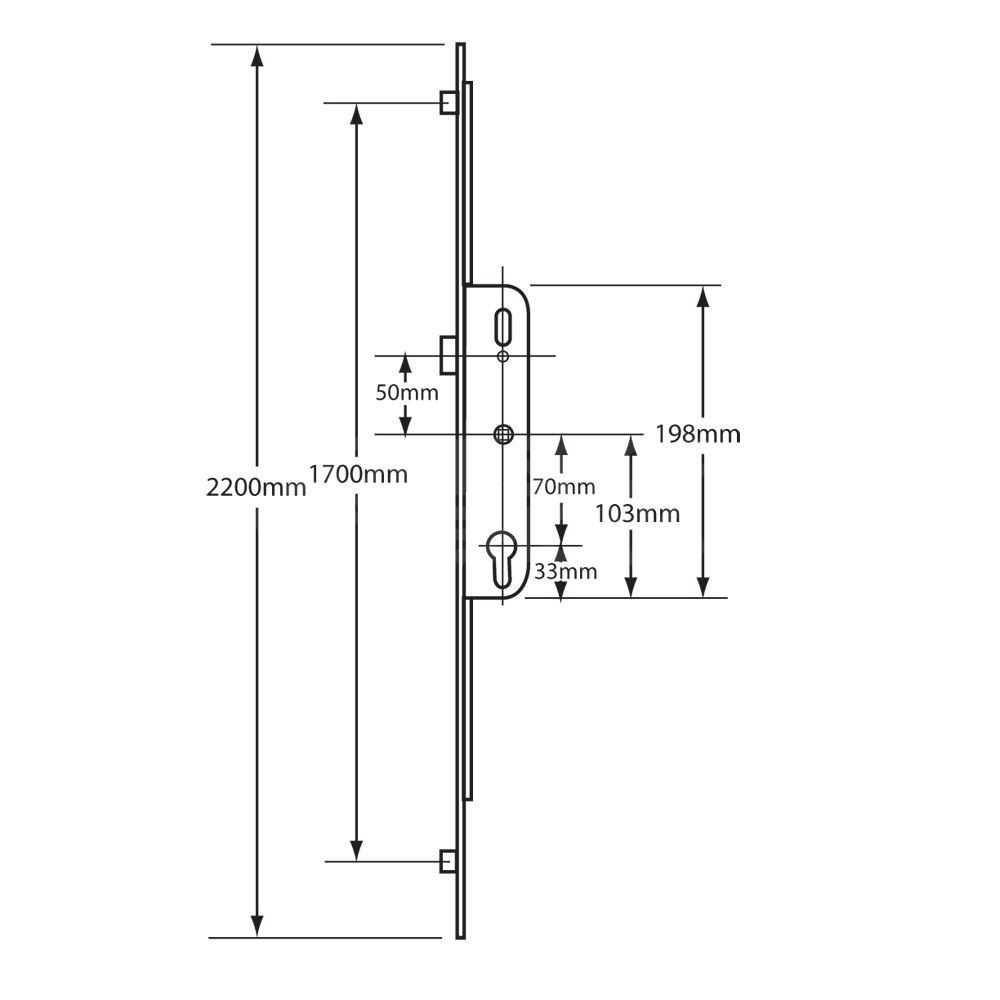

Dimensions Image: Ferco 2 Roller Lever Operated Latch Only Multipoint Lock
Part Size (mm)
centres 70
Backset 35
Case Width 51
Case Height 198
Locking Point Roller 2
Faceplate Width 16

FAQs

No. A-02792-22-0-1 has a latch-only centre case and two rollers along the strip.

This configuration has a 35mm backset, 70mm centres, a 7mm single spindle layout and a 16mm faceplate. Also match the exact reference, case, roller positions, fixings, keeps and furniture.

No. The lock has two rollers, but weather sealing and closing performance depend on the complete door, frame, seals, keeps and alignment.

Only where the exact reference and preparation match. A different roller count or case layout is not interchangeable merely because the backset and centres are the same.
