Ferco Lever Operated 4 Roller Latch Only Multipoint Lock

£65.66

(£54.72 ex VAT)

sku: FERCO-0004
  • Latch-only centre case; no central deadbolt
  • Four roller locking points along the strip
  • 28mm and 35mm backset options with 70mm centres
  • 7mm single spindle layout and Euro profile cylinder case
  • 16mm faceplate; match the exact case, roller positions, keeps and furniture

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch Only

These Ferco multipoint locks use a latch-only centre case with four rollers along the strip. The 28mm and 35mm backset options have 70mm centres, a 7mm single spindle layout and a 16mm faceplate.

The 28mm version is G-24490-22-L-1 and the 35mm version is G-24756-22-L-1. Match the reference, case, roller positions, fixings, keeps and handle configuration to the existing assembly before replacement.

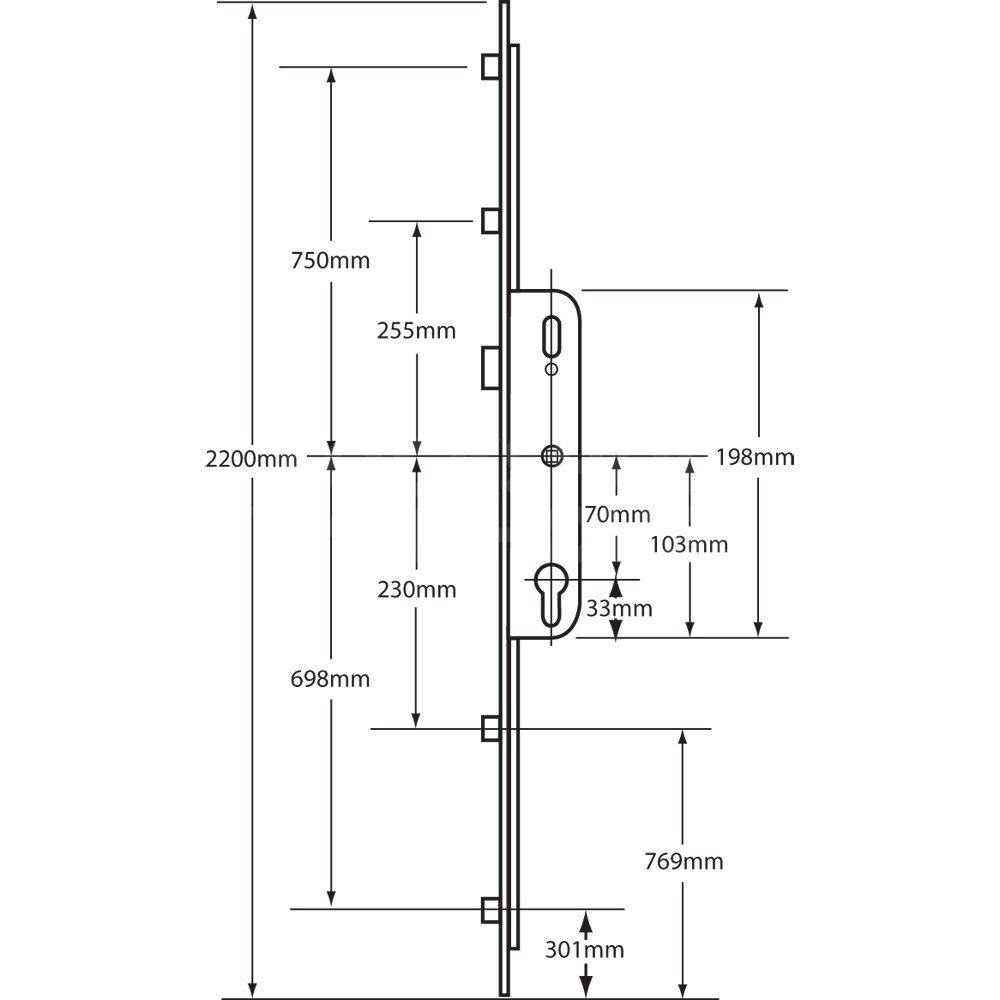

Dimensions Image: Ferco Lever Operated 4 Roller Latch Only Multipoint Lock
Part Min (mm) Max (mm)
centres 70 -
Backset 28 35
Case Width 42 48
Case Height 200 -
Locking Point Roller 4 -
Faceplate Width 16 -

FAQs

It uses a latch-only centre case with four rollers along the strip. There is no central deadbolt; the roller layout alone does not establish weather sealing or resistance to door distortion.

The available backsets are 28mm and 35mm, with 70mm centres, a 7mm single spindle layout and a 16mm faceplate. Match the exact reference, case, roller positions, fixings and keeps as well.

The lock has 70mm centres and a 7mm single spindle layout. The handle fixing positions, spindle length and clearances must also match the door preparation.

No. The 28mm version is G-24490-22-L-1 and the 35mm version is G-24756-22-L-1. Replacement requires matching the reference, case, roller positions, fixings, keeps and furniture, not just the Ferco name.
