Ferco Munster Joinery Multipoint Lock 1 Deadbolt 2 Rollers

£67.84

(£56.53 ex VAT)

sku: G-24761-19-R-1
  • Latch-only centre case with no central deadbolt
  • One lower deadbolt and two roller locking points
  • 35mm backset and 70mm centres
  • Single spindle layout and Euro profile cylinder case
  • 16mm faceplate; match the exact reference, point positions, keeps and furniture
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch Only

The Ferco G-24761-19-R-1 has a latch-only centre case, one lower deadbolt and two rollers. It has a 35mm backset, 70mm centres, a single spindle layout and a 16mm faceplate.

This configuration is found on some Munster Joinery installations, but the door brand alone does not establish replacement fit. Compare the exact lock reference, case, lower-deadbolt and roller positions, fixings, keeps and furniture with the existing assembly.

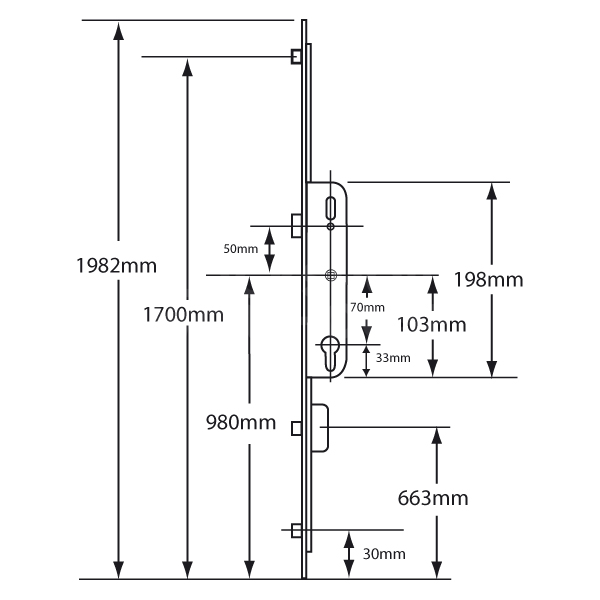

Dimensions Image: Ferco Munster Joinery Multipoint Lock 1 Deadbolt 2 Rollers
Part Size (mm)
centres 70
Backset 35
Body Length 1982
Locking Point Dead Bolt 1
Locking Point Roller 2
Faceplate Width 16

FAQs

No. This configuration is found on some Munster Joinery installations, but the exact reference and preparation must match. Compare G-24761-19-R-1, the case, lower-deadbolt and roller positions, keeps, fixings and furniture with the existing lock.

No. The centre case is latch-only. The deadbolt is a separate lower locking point along the strip, alongside two rollers.

The lock has a latch-only centre case, one lower deadbolt and two rollers. The rollers must align with the matching keeps; door sealing depends on the complete door assembly.

The lock has 70mm centres, a single spindle layout and a Euro profile cylinder case. Match the follower, spindle length, handle fixings, cylinder cam and cylinder length to the existing assembly.
