skip to Ferco Tripact Lever Operated Multipoint Lock

Ferco Tripact Lever Operated Multipoint Lock

£74.17

(£61.81 ex VAT)

sku: FERCO-0005
  • Central latch and deadbolt with two small hooks
  • 40mm and 50mm backset options
  • 70mm centres and 7mm single spindle layout
  • Euro profile cylinder case and 20mm faceplate
  • Lift the handle to engage the central deadbolt and hooks, then secure the mechanism with the key

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

These Ferco Tripact configurations have a central latch and deadbolt with two small hooks. The 40mm and 50mm backset options both have 70mm centres, a 7mm single spindle layout and a 20mm faceplate.

Lifting the handle engages the central deadbolt and hooks; the key then secures the mechanism. Match the exact reference, case, hook positions, fixings, keeps and furniture before replacement. These are the 20mm-faceplate, 7mm-spindle configurations, not other Tripact variants with different preparations.

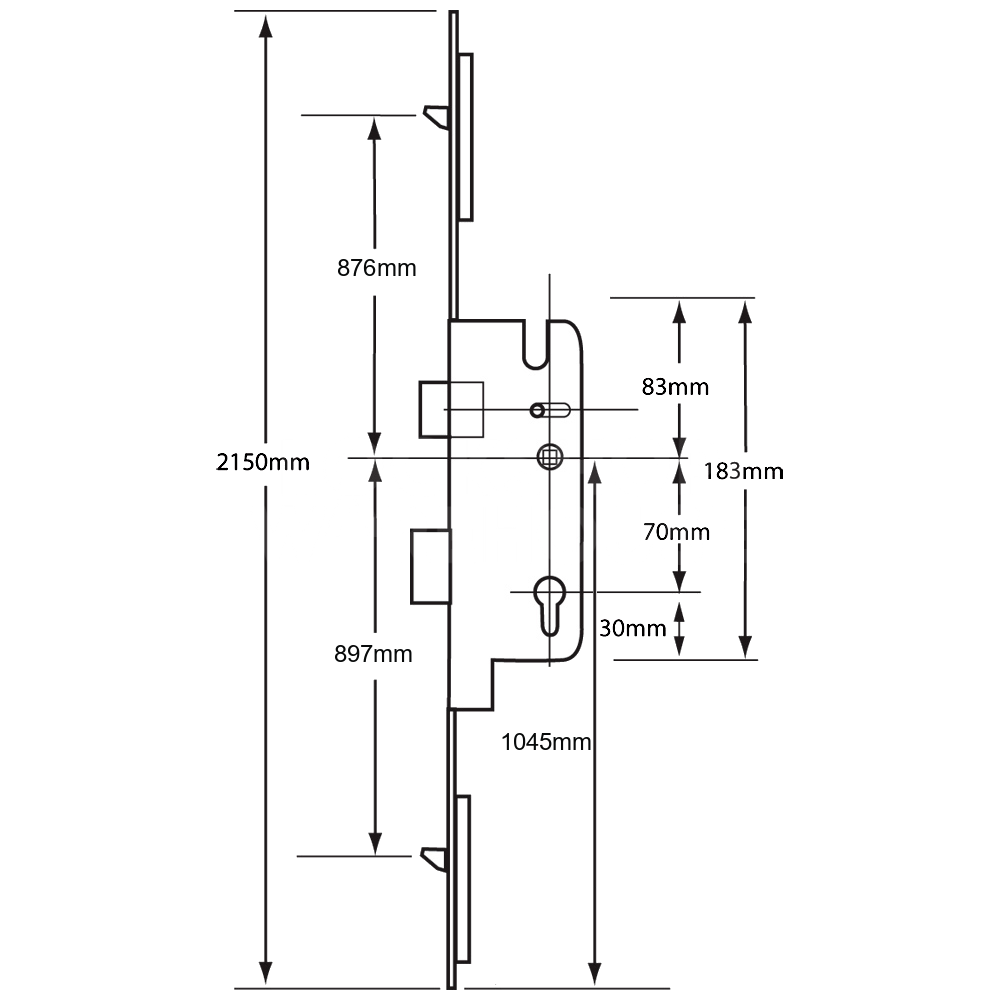

Dimensions Image: Ferco Tripact Lever Operated Multipoint Lock
Part Min (mm) Max (mm)
centres 70 -
Backset 40 50
Case Width 58 68
Case Height 215 -
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

These Tripact configurations have 70mm centres and a 7mm single spindle layout. The handle fixing positions, spindle length and clearances must also match; handles for an 8mm spindle configuration are not equivalent.

Lift the handle to engage the central deadbolt and two hooks, then use the key to secure the mechanism. These are manual lever-operated configurations.

Match the exact 40mm or 50mm backset configuration, with 70mm centres, a 7mm single spindle layout and a 20mm faceplate. The case, hook positions, fixings, keeps and furniture must also match; door material alone does not establish fit.

The case accepts a Euro profile cylinder. Reuse requires a matching cam and fixing arrangement, with the cylinder length suited to the door thickness and furniture.
