FIRESTOP Intumescent Strip 1.05m x 4mm Fire Only Seal (Pack Of 5)

£9.25

(£7.71 ex VAT)

sku: FIRES-0031
  • Fire-only intumescent profile without a smoke brush or fin
  • Supplied in packs of five 1050mm lengths with a 4mm thickness
  • Acrylic self-adhesive backing tape to aid positioning in timber rebates
  • Available in 10mm width (for documented 30-minute applications) or 15mm width (for documented 60-minute applications)
  • Manufactured in the UK

Certifire CF846 covers specific tested doorset installations; seal dimensions, positioning and the complete doorset specification must match the relevant test evidence and approval.

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Certifire
BS 476 - 22:1987

Models and application durations

Product codeWidth, finish and application duration
FS15615mm Brown (60 minutes) FS156
FS15715mm White (60 minutes) FS157
FS15010mm Brown (30 minutes) FS150
FS15110mm White (30 minutes) FS151

Durations identify the documented applications for each model; they are not a standalone FD classification for the loose seal. A 30-60 minute label denotes the specified 30- or 60-minute doorset applications, not universal suitability.

Supplied in packs of five 1050mm lengths. The backing aids fitting; the required rebate, gaps, positioning and complete doorset construction remain as specified by Firestop and the relevant approval.

Fire evidence: BS 476-22:1987 within Certifire CF846. No smoke-performance claim is made for these fire-only seals. TS35 and TS21 are assessment schedules, not separate certificate numbers.

Certifire CF846: scope and installation conditions | Firestop model and fitting information

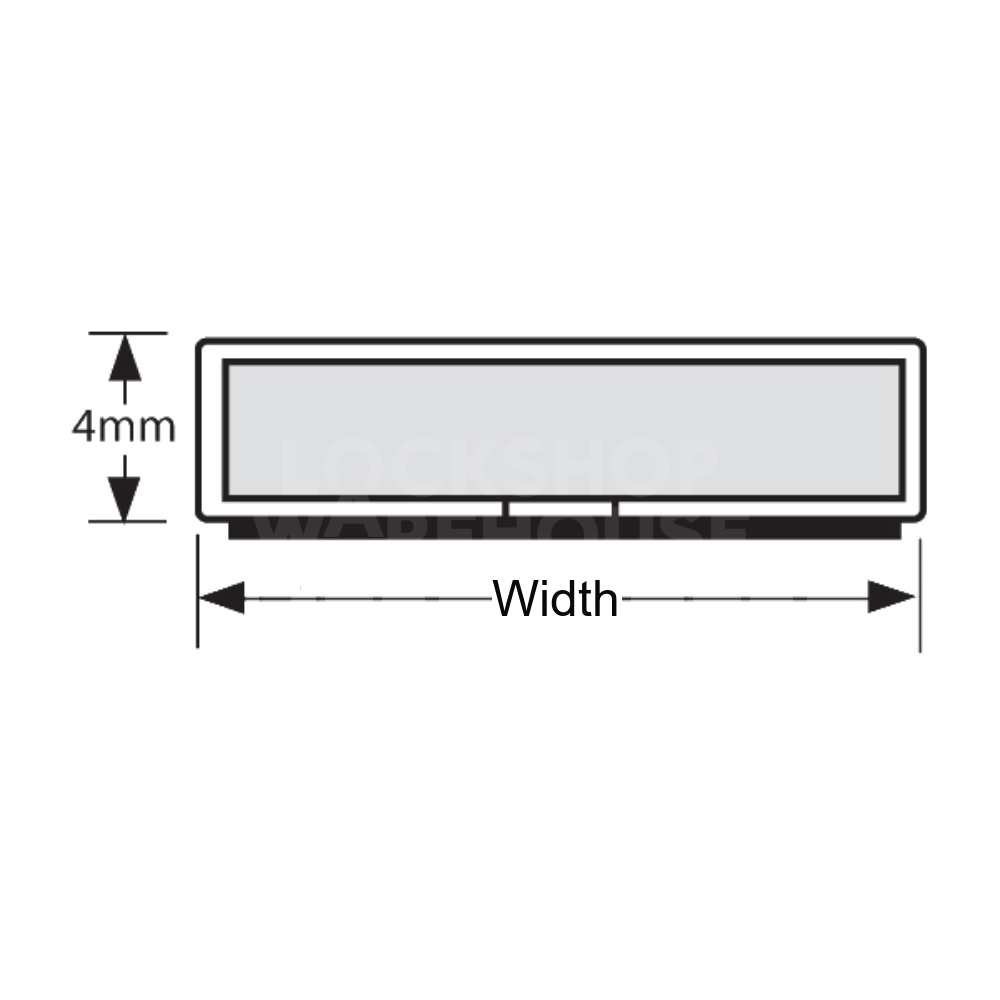

Dimensions Image: FIRESTOP Intumescent Strip 1.05m x 4mm Fire Only Seal (Pack Of 5)
Part Min (mm) Max (mm)
width 10 15
Body Length 1050 -

Brand

SKU

FIRES-0031

Certifications

tick Certifire
tick BS 476 - 22:1987
