FIRESTOP Intumescent Strip 2.1m x 4mm Fire & Smoke Brush Seal

£3.25

(£2.71 ex VAT)

sku: FIRES-0002
  • Brush-pile profile for fire and smoke sealing.
  • 4mm thick profile, supplied in 2100mm lengths.
  • Acrylic self-adhesive backing to assist with rebate fitting.
  • Manufactured in the UK.

Certifire CF846 covers specified installations rather than universal doorsets; seal dimensions, rebate details and positioning must match the approval and tested doorset specification.

Document Icon Firestop intumescent seals - models and fitting requirements

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Certifire
BS 476 - 22:1987
BS 476 - 31.1:1983

Models and application durations

Product codeWidth, finish and application duration
FS12115mm Brown (30-60 minutes)
FS12215mm White (30-60 minutes)
FS10910mm Brown (30 minutes)
FS11010mm White (30 minutes)
FS13420mm White (60 minutes)
FS33525mm White (90 minutes)
FS13320mm Brown (60 minutes)

Durations identify the documented applications for each model; they are not a standalone FD classification for the loose seal. A 30-60 minute label denotes the specified 30- or 60-minute doorset applications, not universal suitability.

Supplied in 2100mm lengths. The backing aids fitting; the required rebate, gaps, positioning and complete doorset construction remain as specified by Firestop and the relevant approval.

Fire evidence: BS 476-22:1987 within Certifire CF846. Smoke evidence: BS 476-31.1:1983 for the applicable smoke-seal installations. TS35 and TS21 are assessment schedules, not separate certificate numbers.

Certifire CF846: scope and installation conditions

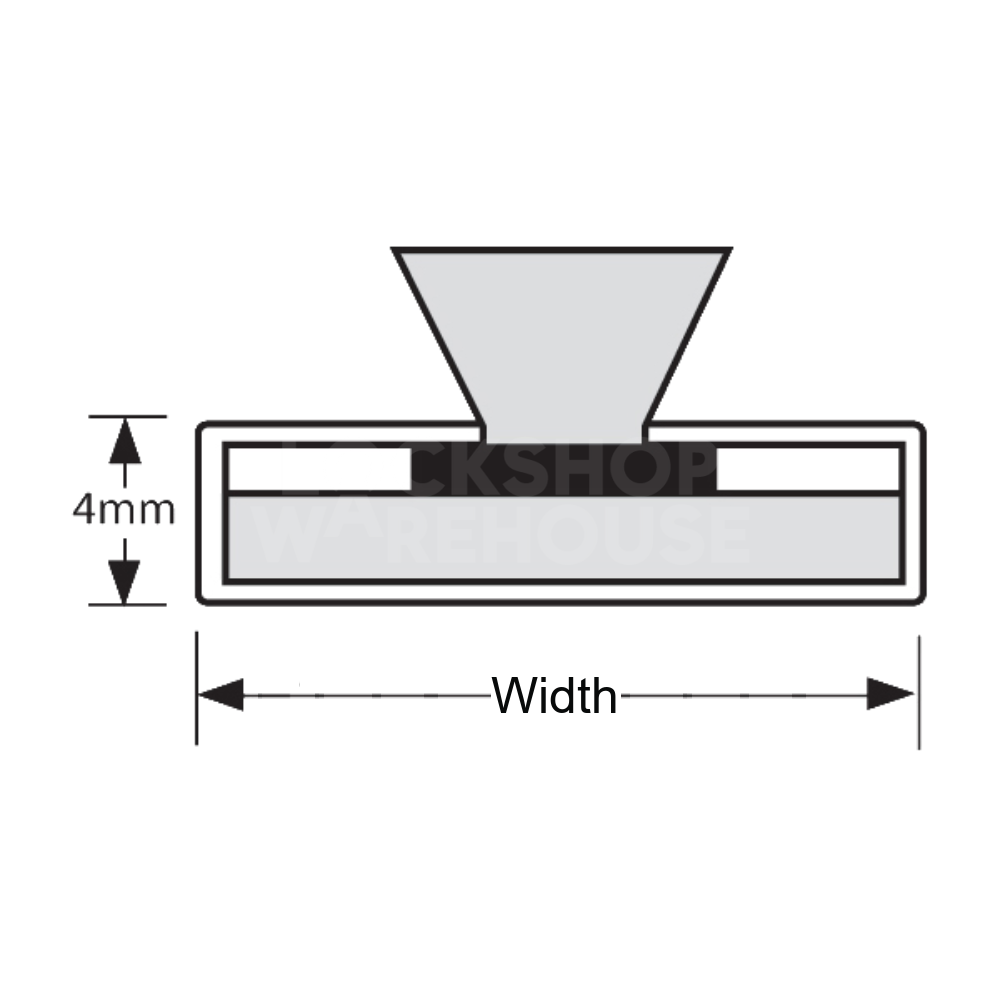

Dimensions Image: FIRESTOP Intumescent Strip 2.1m x 4mm Fire & Smoke Brush Seal
Part Min (mm) Max (mm)
width 10 25
Body Length 2100 -

Brand

SKU

FIRES-0002

Certifications

tick Certifire
tick BS 476 - 22:1987
tick BS 476 - 31.1:1983
