FIRESTOP Intumescent Strip 2.1m x 4mm Fire & Smoke Double Fin Seal

£2.95

(£2.46 ex VAT)

sku: FIRES-0030
  • Double-fin profile for fire and smoke sealing on rebated timber door leaves or frames.
  • Supplied in 2100mm lengths, with a 4mm thickness and acrylic self-adhesive backing to aid fitting.
  • Manufactured in the UK.
  • Fire evidence: BS 476-22:1987 within Certifire CF846. Smoke evidence: BS 476-31.1:1983 for applicable smoke-seal installations.

Certifire CF846 covers specified doorset installations, not every door or seal size. Application durations depend on the seal size and doorset specification; they are not a standalone FD classification for the loose seal.

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Certifire
BS 476 - 22:1987
BS 476 - 31.1:1983

Models and application durations

Product codeWidth, finish and application duration
FS163420mm Brown (60 minutes) FS1634
FS163320mm White (60 minutes) FS1633
FS162815mm Brown (30/60 minutes) FS1628
FS162715mm White (30/60 minutes) FS1627
FS162210mm Brown (30 minutes) FS1622
FS162110mm White (30 minutes) FS1621

Durations identify the documented applications for each model; they are not a standalone FD classification for the loose seal. A 30-60 minute label denotes the specified 30- or 60-minute doorset applications, not universal suitability.

Supplied in 2100mm lengths. The backing aids fitting; the required rebate, gaps, positioning and complete doorset construction remain as specified by Firestop and the relevant approval.

Fire evidence: BS 476-22:1987 within Certifire CF846. Smoke evidence: BS 476-31.1:1983 for the applicable smoke-seal installations. TS35 and TS21 are assessment schedules, not separate certificate numbers.

Certifire CF846: scope and installation conditions | Firestop model and fitting information

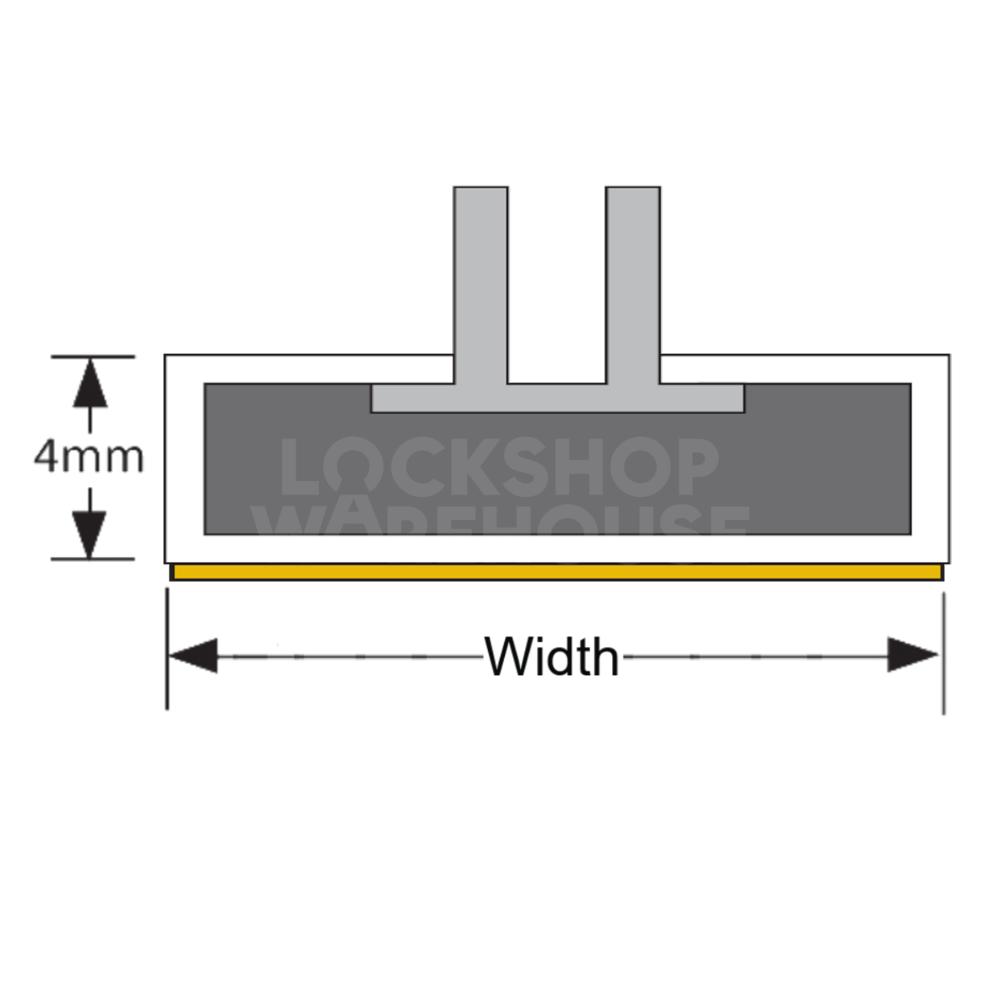

Dimensions Image: FIRESTOP Intumescent Strip 2.1m x 4mm Fire & Smoke Double Fin Seal
Part Min (mm) Max (mm)
width 10 20
Body Length 2100 -

Brand

SKU

FIRES-0030

Certifications

tick Certifire
tick BS 476 - 22:1987
tick BS 476 - 31.1:1983
