FIRESTOP Intumescent Strip 2.1m x 4mm Fire & Smoke Single Fin Seal

£2.75

(£2.29 ex VAT)

sku: FIRES-0029

Firestop single-fin fire and smoke intumescent seals for rebated timber door leaves or frames, supplied in 2100mm lengths. The required width and fire-resistance application depend on the tested doorset specification.

  • 4mm thick, with an acrylic self-adhesive backing.
  • Manufactured in the UK.
  • Single-fin fire and smoke sealing profile.

Certifire CF846 covers specified installations, not every door or seal size. The complete doorset, seal type, size and position must match the certificate and installation instructions.

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Certifire
BS 476 - 22:1987
BS 476 - 31.1:1983

Models and application durations

Product codeWidth, finish and application duration
FS161620mm Brown (60 minutes) FS1616
FS161520mm White (60 minutes) FS1615
FS161015mm Brown (30/60 minutes) FS1610
FS160915mm White (30/60 minutes) FS1609
FS160410mm Brown (30 minutes) FS1604
FS160310mm White (30 minutes) FS1603

Durations identify the documented applications for each model; they are not a standalone FD classification for the loose seal. A 30-60 minute label denotes the specified 30- or 60-minute doorset applications, not universal suitability.

Supplied in 2100mm lengths. The backing aids fitting; the required rebate, gaps, positioning and complete doorset construction remain as specified by Firestop and the relevant approval.

Fire evidence: BS 476-22:1987 within Certifire CF846. Smoke evidence: BS 476-31.1:1983 for the applicable smoke-seal installations. TS35 and TS21 are assessment schedules, not separate certificate numbers.

Certifire CF846: scope and installation conditions | Firestop model and fitting information

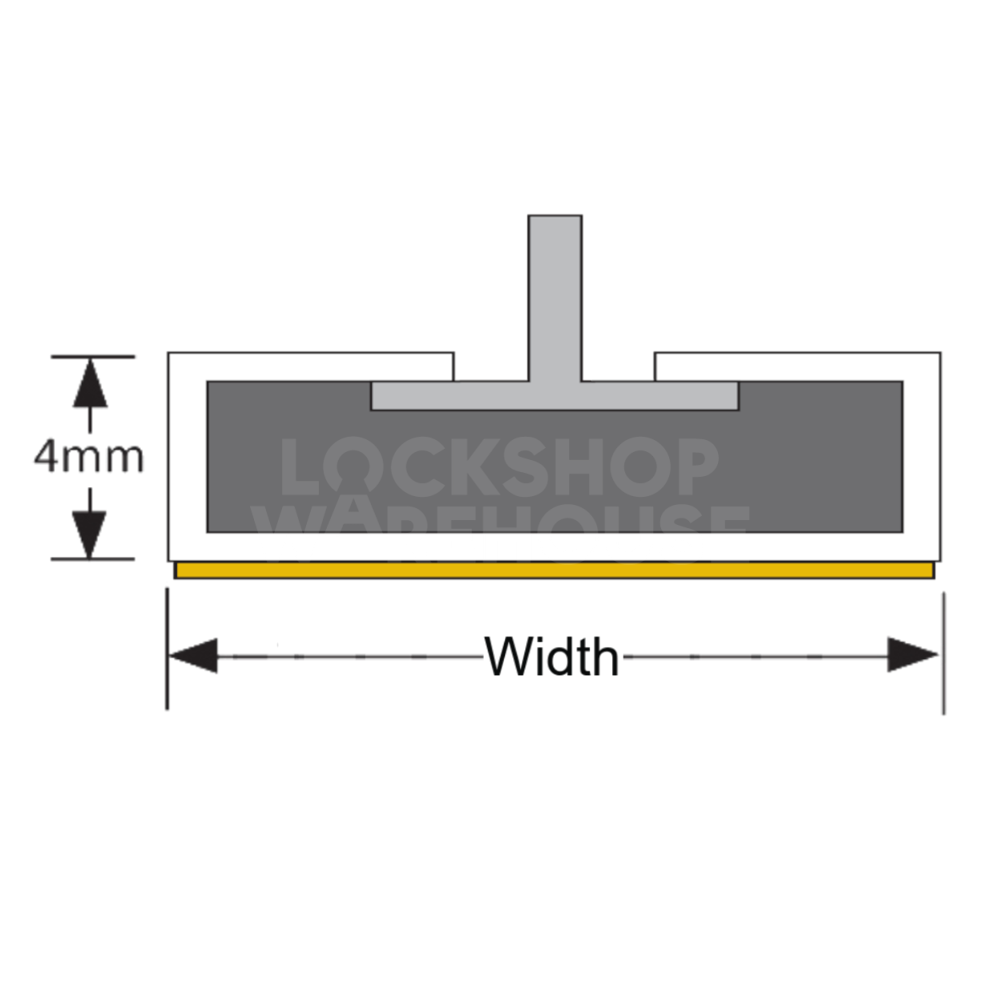

Dimensions Image: FIRESTOP Intumescent Strip 2.1m x 4mm Fire & Smoke Single Fin Seal
Part Min (mm) Max (mm)
width 10 20
Body Length 2100 -

Brand

SKU

FIRES-0029

Certifications

tick Certifire
tick BS 476 - 22:1987
tick BS 476 - 31.1:1983
