skip to Fix 2025 Lever Operated Scandinavian Profile Multipoint Lock

Fix 2025 Lever Operated Scandinavian Profile Multipoint Lock

£196.15

(£163.46 ex VAT)

sku: FIX-0001
  • Lever-operated single spindle mechanism for standard handle functionality
  • Central gearbox features both a latch and a deadbolt for primary closure
  • Equipped with two additional hook bolts for enhanced security across the door height
  • Designed for compatibility with Scandinavian profile cylinders
  • Features 105mm PZ centres for specific handle and cylinder alignment
  • Ideal as a replacement component for existing FIX 2025 multipoint systems
  • Suitable for use on timber and composite door applications

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Fix 2025 is a high-performance multipoint lock engineered for timber and composite door systems requiring a 105mm PZ centre. This lever-operated mechanism provides a secure three-point locking solution, engaging a central deadbolt and two additional hook bolts when the handle is lifted. It is specifically designed to work with Scandinavian profile cylinders, which are commonly found in specialist architectural applications.

The system operates on a single spindle, meaning a standard lever handle controls both the latch and the engagement of the secondary locking points. This design is robust and reliable, making it a preferred choice for both new installations and as a direct replacement for worn or damaged legacy units. By distributing the locking force across the length of the door, it not only improves security against forced entry but also ensures a tighter weather seal by pulling the door leaf firmly into the frame.

When specifying this lock for maintenance or replacement, it is essential to verify the 105mm PZ measurement (the distance from the centre of the spindle to the centre of the cylinder) and the 25mm faceplate width to ensure a correct fit. It provides a technical solution for maintaining the integrity of high-security door sets with Scandinavian hardware configurations.

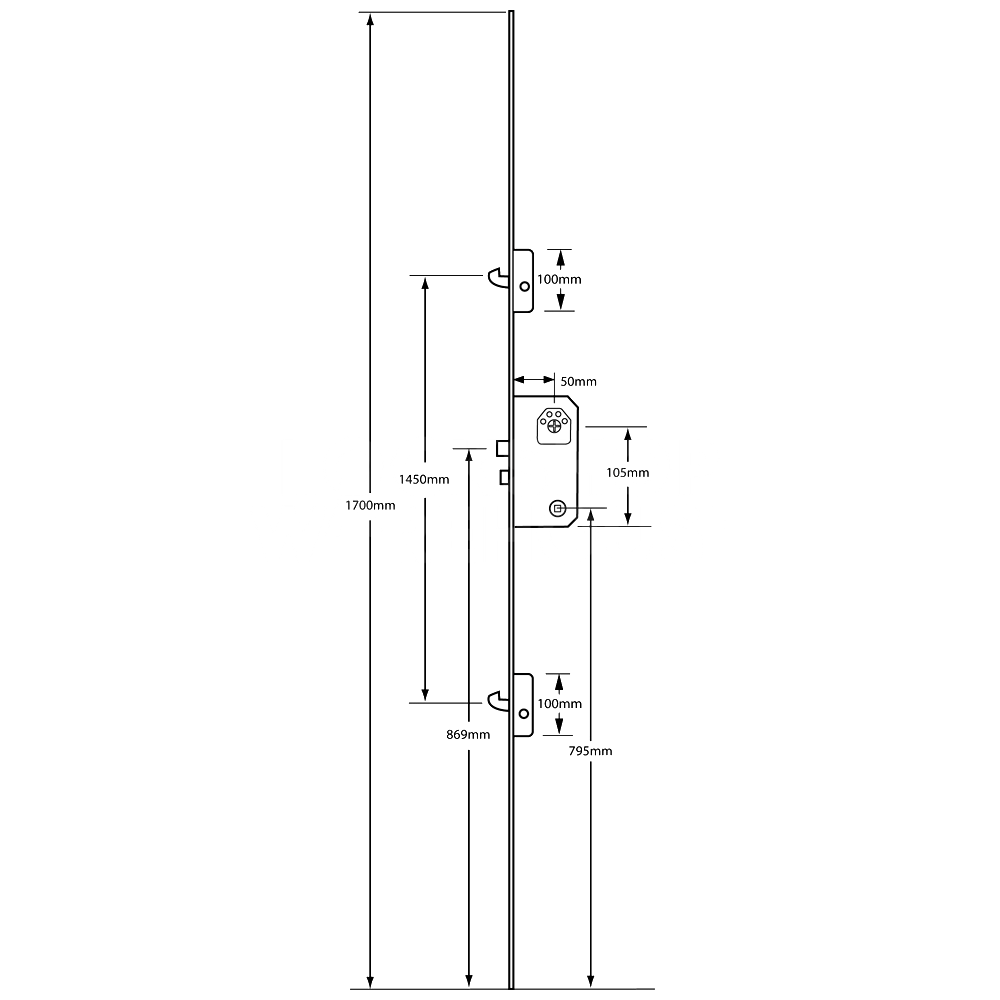

Dimensions Image: Fix 2025 Lever Operated Scandinavian Profile Multipoint Lock
Part Size (mm)
centres 105
Backset 50
Case Width 72
Case Height 150
Locking Point Hooks 2
Faceplate Width 25

FAQs

No, this lock is specifically designed for use with Scandinavian profile cylinders. It will not fit the standard Euro profile cylinders commonly found on uPVC doors. It is intended for specialist architectural timber and composite door applications that use Scandinavian hardware configurations.

When specifying this lock as a replacement, you must confirm two critical measurements:

  • The PZ centre, which must be 105mm (the distance from the centre of the handle spindle to the centre of the cylinder).
  • The faceplate width, which should be 25mm.

This is a lever-operated system. To secure the door, you lift the door handle upwards to engage the two additional hook bolts and the central deadbolt. Once these points are engaged, turning the key in the Scandinavian cylinder locks the mechanism into position.

The Fix 2025 is ideal for use on timber and composite door applications. It is frequently used as a direct replacement component for existing FIX 2025 multipoint systems that have become worn or damaged over time, ensuring the door maintains its original security and weather seal integrity.
