FUHR 855 Type 1 Key Operated Latch & Deadbolt 4 Roller Lock

£119.65

(£99.71 ex VAT)

sku: FUHR-0044
  • FUHR multisafe 855 with four rollers, latch and central deadbolt
  • Key-operated locking/unlocking; no lift-to-lock action
  • 30/35/45mm backset versions
  • Match the correct Euro cylinder, handle and spindle arrangement
  • Compare exact lock, faceplate, routing and frame-keep positions before replacement
Document Icon FUHR multisafe 855: manufacturer operation, spindle and installation guide

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The FUHR 855 Type 1 Key Operated Latch & Deadbolt 4 Roller Lock is a key-operated multisafe 855 lock with four rollers, a central latch and a separately secured deadbolt. Available in 30/35/45mm backsets.

Operation: two full turns of the cylinder key drive the locking and unlocking mechanism. The key retracts the latch from outside; the inside lever can retract the latch after unlocking. Lifting a handle is not the locking action, and ordinary 855 operation is not a panic escape function.

Replacement fit: compare the exact supplied reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps. A shared brand or PZ measurement is not a direct-replacement guarantee. The stored manual explains operation and installation precautions; it is not an exact-part dimensioned drawing.

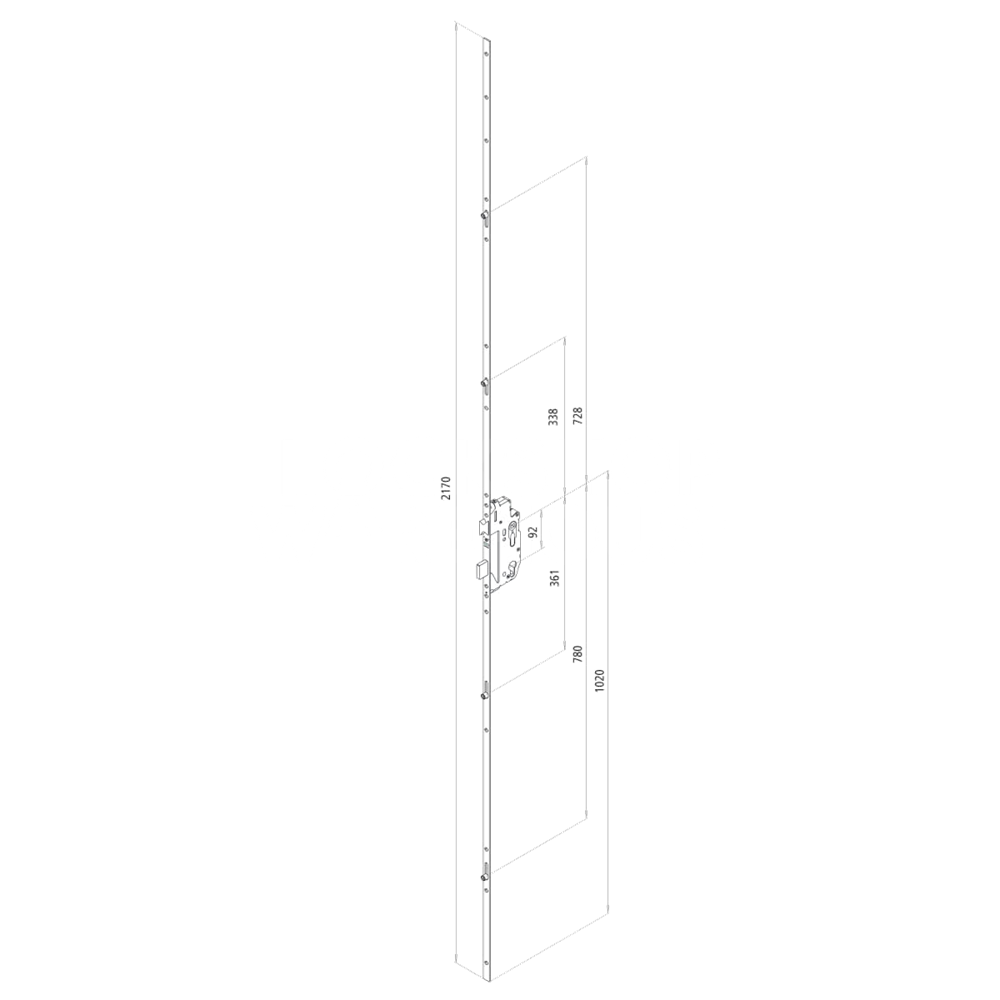

Dimensions Image: FUHR 855 Type 1 Key Operated Latch & Deadbolt 4 Roller Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 30 45
Bolt Length 20 -
Body Length 2170 -
Locking Point Roller 4 -
Faceplate Width 16 -

FAQs

Unlike standard lever-operated locks where you lift the handle to engage the bolts, this key-wind system uses the rotation of the key in the Euro profile cylinder to engage the deadbolt and all four roller cams. This design is specifically intended for doors with fixed pull handles or where lever-lift operation is not desired.

Yes, the FUHR 855 Type 1 features a fully reversible latch bolt. This allow it to be easily adjusted to suit both left and right-handed door openings during installation.

The four roller cams provide multiple points of engagement along the door edge. They offer two main benefits:

  • Increased security by securing the door at multiple points.
  • Improved weather sealing by pulling the door tightly against the frame to reduce drafts.

Fit depends on the exact lock reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps, not the door material or FUHR brand alone. Compare the existing lock and the correct dimensioned drawing before replacement.
