Fuhr 855 Type 2 Key Wind Multipoint Lock

£151.55

(£126.29 ex VAT)

sku: M2352D28SS
  • FUHR multisafe 855 with two mushrooms and two rollers, latch and central deadbolt
  • Key-operated locking/unlocking; no lift-to-lock action
  • 35mm backset version
  • Match the correct Euro cylinder, handle and spindle arrangement
  • Compare exact lock, faceplate, routing and frame-keep positions before replacement
Document Icon FUHR multisafe 855: manufacturer operation, spindle and installation guide
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Fuhr 855 Type 2 Key Wind Multipoint Lock is a key-operated multisafe 855 lock with two mushrooms and two rollers, a central latch and a separately secured deadbolt. Available with a 35mm backset.

Operation: two full turns of the cylinder key drive the locking and unlocking mechanism. The key retracts the latch from outside; the inside lever can retract the latch after unlocking. Lifting a handle is not the locking action, and ordinary 855 operation is not a panic escape function.

Replacement fit: compare the exact supplied reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps. A shared brand or PZ measurement is not a direct-replacement guarantee. The stored manual explains operation and installation precautions; it is not an exact-part dimensioned drawing.

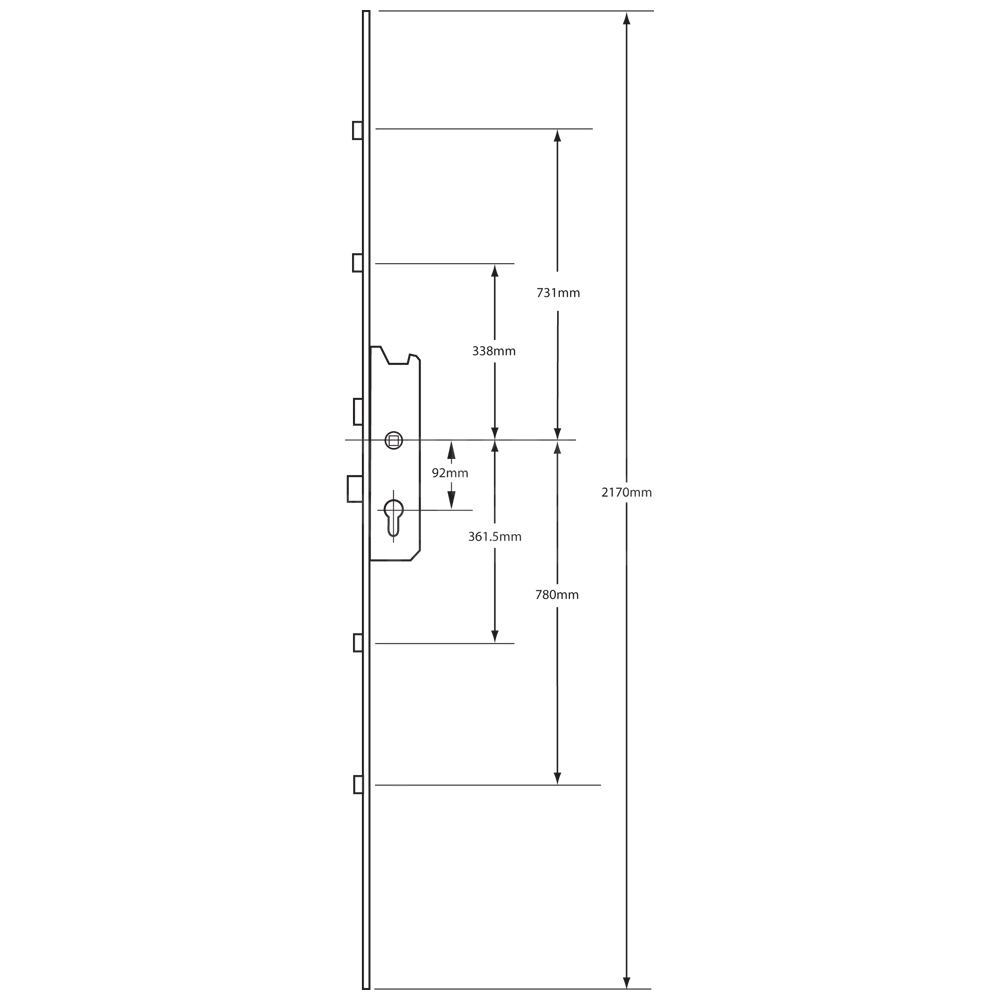

Dimensions Image: Fuhr 855 Type 2 Key Wind Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 210
Locking Point Mushroom 2
Locking Point Roller 2
Faceplate Width 16

FAQs

Unlike standard multipoint locks where you lift the handle to engage the locking points, the Fuhr 855 Type 2 uses a key-wind mechanism. Rotating the key in the Euro profile cylinder directly drives the locking points into place. This design is specifically intended for doors with a fixed external pull pad where handle-lifting is not an option.

Yes. The central latch and deadbolt are fully reversible, making the unit compatible with both left and right-handed door configurations. This allows for a straightforward installation regardless of which way your door swings.

This lock provides a total of six security points to ensure a tight, secure seal:

  • A central latch and a robust deadbolt.
  • Two roller cams that facilitate smooth operation and compression for weather-proofing.
  • Two mushroom cams that hook into the door keeps to provide enhanced resistance against forced entry.

The mechanism requires two full turns of the key to completely engage all the multi-point locking cams and the central deadbolt. This ensures the door is fully locked and the compression points are properly seated in their keeps.
