Fuhr 855 Type 8 Key Wind Multipoint Lock

£179.95

(£149.96 ex VAT)

sku: M2352D98SS
  • Key-wind operation for latch and deadbolt engagement
  • Features two round bolts and two rollers for secure multi-point locking
  • Reversible latch and deadbolt for left or right-hand applications
  • Tapered round bolts to assist with weather seal compression
  • Single spindle gearbox designed for use with internal lever handles
  • Secure 20mm deadbolt throw for enhanced protection
  • Enables latch operation via key for doors with external fixed pads
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Fuhr 855 Type 8 is a robust key-wind multipoint locking system designed for doors requiring high-security latch and deadbolt functionality. This unit incorporates a central gearbox with four additional locking points consisting of two round bolts and two rollers, providing multiple contact points with the frame.

Functioning through a key-wind mechanism, the locking points are engaged and disengaged by two full turns of the cylinder. This design is specifically intended for door setups featuring a fixed pad or pull handle on the exterior, where the key is required to retract the latch. On the interior, the latch can be operated via a standard lever handle on a single spindle. Typical applications include residential entrance doors where controlled external access is preferred.

  • Reversible latch and deadbolt to accommodate various door handedness
  • Tapered round bolts ensure smooth operation and aid in compressing weather seals
  • Compatible with Euro profile cylinders
  • Single spindle configuration for internal lever operation

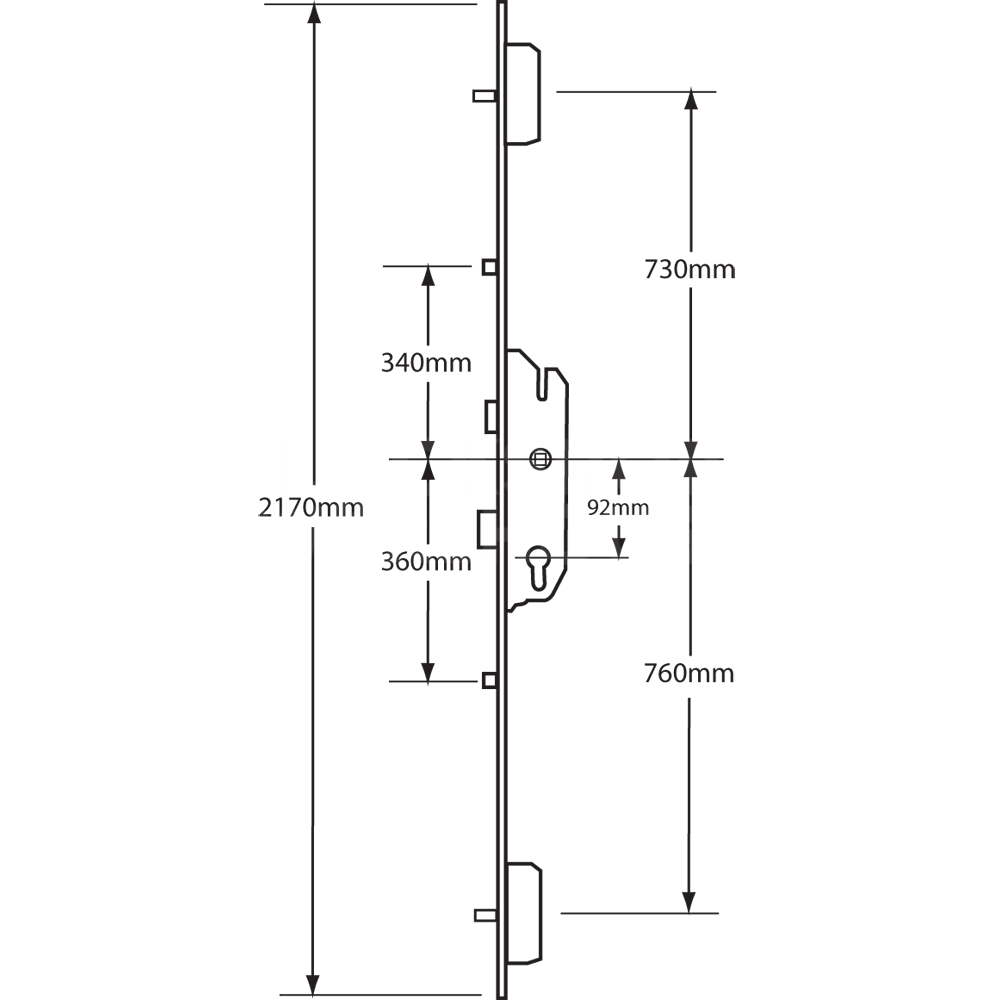

Dimensions Image: Fuhr 855 Type 8 Key Wind Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 210
Locking Point Pin 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The key-wind operation requires two full turns of the cylinder to engage or disengage the locking points. This design is ideal for doors with a fixed external pad or pull handle, as it allows the key to retract the latch for entry.

This multipoint lock features a central latch and deadbolt complemented by four additional points: two rollers and two tapered round bolts. The tapered design of the bolts helps compress weather seals for a tighter, more secure fit.

Yes, the latch and deadbolt are fully reversible, making the unit compatible with both left and right-hand door configurations.

The lock uses a single spindle gearbox intended for an internal lever handle. It is specifically designed for doors where the exterior has a fixed pad, meaning the key must be used to gain access from the outside.
